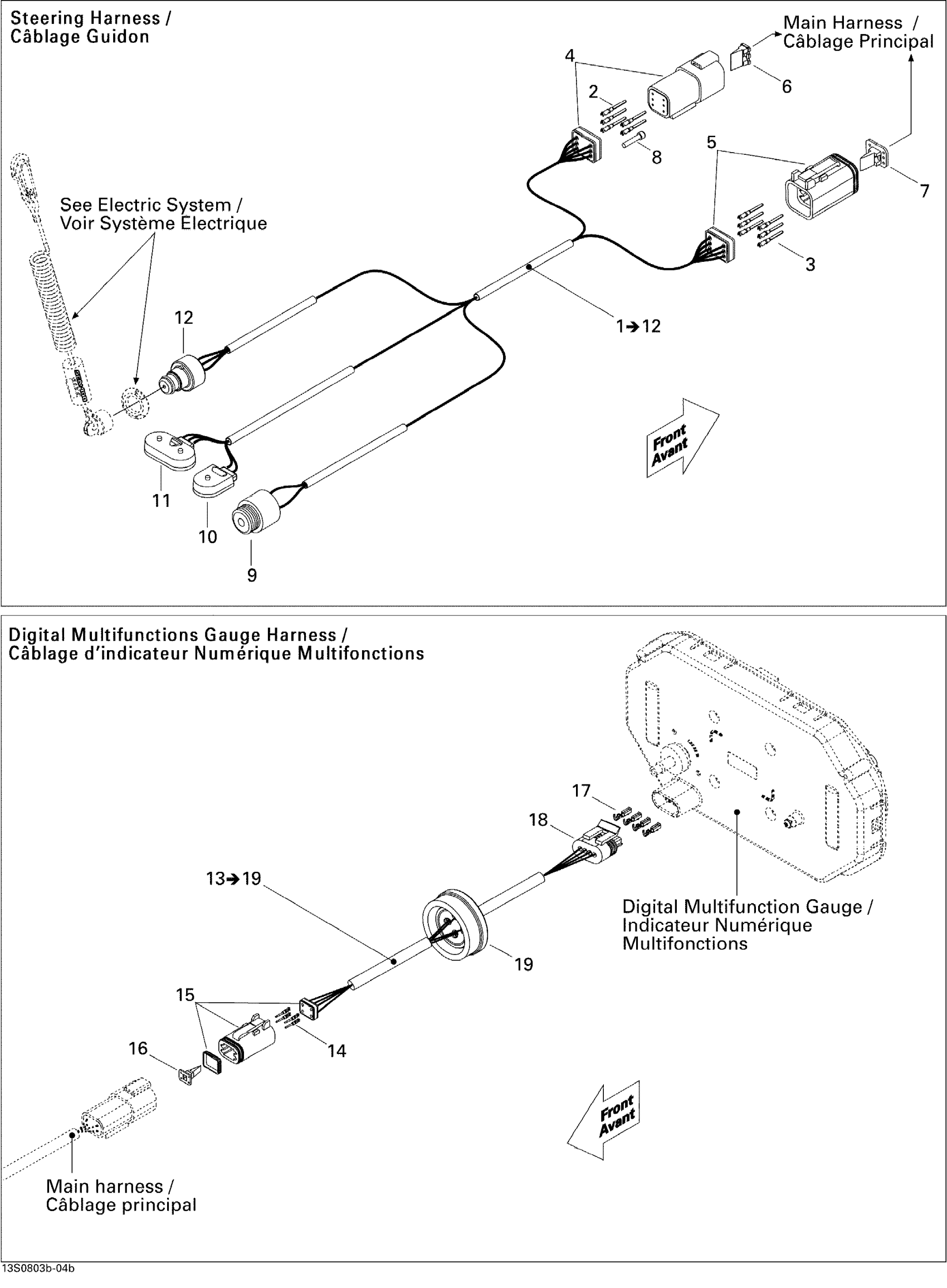

Sea-doo WAKE 215, 2008 Electrical Harness 2 Diagram

#

Description
Price

1

STEERING HARNESS - Call your local BRP dealership | Includes 1 to 12

278002382

Unavailable

2

Male Terminal

278000631

$4.39

3

Female Terminal

278000632

$2.09

4

Male Terminal Housing, 6 Circuits

710001539

$19.99

5

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

6

Female Lock, 6 Circuits

278000735

$3.19

7

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

8

Sealing Cap

293000052

$3.19

9

Buzzer | SERV

278002290

$36.99

10

START/STOP SWITCH - Call your local BRP dealership

278001733

Unavailable

11

VTS SWITCH - Call your local BRP dealership | SERV

278002156

Unavailable

12

Interrupteur *Safety Switch | SERV This part replaces 278002350.

278002774

$114.99

13

DIGITAL MULTIFUNCTION GAUGE HARNESS - Call your local BRP dealership | Includes 10 to 16

278002180

Unavailable

14

Female Terminal

278000632

$2.09

15

Male Connector, 4 Circuits | CE

278000739

$19.49

16

Male Lock, 4 Circuits | CE

278000738

$3.09

17

Female Terminal

278001114

$3.19

18

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable

19

CABLE GROMMET - Call your local BRP dealership

293720079

Unavailable
