Description

Price

10b

Deck Nose

291003897

$18.99

10c

Hex. Flange Screw K40 X 25

241142560

$2.64

10d

Flat Washer 4 mm, Stainless

234042600

$1.15

10e

Bumper Support | Package SE Manta Green

291003704

$21.99

10k

Swim Platform Carpet

291003096

$88.99

10m

Front Carpet LH

291003058

$24.99

10n

Front Carpet RH

291003059

$24.99

10p

Front Center Carpet LH

291003060

$28.49

10q

Rear Center Carpet LH

291003329

$34.99

10r

Front Center Carpet RH

291003061

$28.49

10s

Rear Center Carpet RH

291003330

$34.99

10t

Rear Carpet LH

291003062

$20.49

10u

Rear Carpet RH

291003063

$20.49

20

Console

291004276

$134.99

30

Rubber Bumper

293830005

$8.09

40

Pop Rivet 3/16"

293150123

$4.29

50

Pop Rivet 3/16

293150186

$2.09

60>60c

Manta Green, Bezel Ass'y | Includes 60 TO 60c

291004264

$94.99

60b

Mirror RH, With Double-Face Tape

291003090

$48.49

60c

Mirror LH, With Double-Face Tape

291003091

$48.49

80

Deep Black, Mirror Support

291004271

$48.99

310

Rivet 1/8"

293150016

$0.40

320

Black, Snap Cap

293000014

$1.09

470a

Manta Green, Rear Handle Ass'y | Includes 470 TO 470g

291004627

$153.49

470b

Stud Seat

291003877

$48.99

470c

Hex. Jam Nut M10

232100600

$2.22

470d

Flat Washer 10 mm, Stainless

234002600

$2.22

470e

Seat Stud Spacer

269002125

$8.19

470f

SEAT STUD SUPPORT - Call your local BRP dealership

269002126

$8.19

470g

Elastic Stop Nut M10, Brass

232501200

$2.64

475

Gasket 3000Mm Long

219704378

$26.49

480

Hex. Screw M6 X 50

207065060

$2.22

490

Flat Washer M6, Stainless

234062600

$0.77

500

Elastic Stop Nut M6, Brass

232561200

$4.23

510

Hex. Screw M6 X 40

207164060

$3.38

520

Flat Washer M6.6 X 22

250200022

$2.72

850>840c

Deep Black, Glove Door Ass'y | Includes 840 TO 840c

269502140

$65.99

840b

Black, Latch

264000164

$15.99

840c

Gasket

293250236

$41.49

940

Black, Dart

293730006

$0.99

950

TRIM_HOOD RH B-400 - Call your local BRP dealership

269502169

Unavailable

960

TRIM_HOOD LH B-400 - Call your local BRP dealership

269502170

Unavailable

970

Hex. Screw 10-14 X 7/8”

211000023

$3.59

1030

Front Bumper This part replaces 291005401.

291004277

$76.49

1050

Hexagonal Cap Screw M6 X35

250000399

$4.44

1060

Black, Side Bumper

291004451

$58.49

1070

Black, Corner Bumper This part replaces 291004152.

291004278

$33.99

1075

Black, Corner Bumper This part replaces 291004153.

291004279

$33.99

1090

Black, Side Bumper

291004451

$58.49

1110

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

1115

Hexagonal Cap Screw M6 X35

250000399

$4.44

1700

Divider Ass'y

291004572

$104.99

1730

Holding Strap

269502111

$18.49

1900>1900j

Support Sub-Ass'y | Includes 1900 TO 1900d

291002553

$294.99

1900b

Replacing Kit for Pylon Strap

295100740

$26.49

1900f

Seal

293250151

$10.99

1900h

Hex. Flange Screw K40 X 13

241141360

$0.67

1900j

Strap

269501299

$19.49

1905a

Molded Handle

291004766

$195.99

1905b

ALUMINUM POST - Call your local BRP dealership

291002642

Unavailable

1905c

Ball Spring

269501651

$11.99

1905d

Ball 1/4"

293350062

$2.69

1905e

Warning Label

219903137

Unavailable

1905f

Type "U" Metallic Drive Screw

293150167

$2.29

1905g

Bumper Plug, Black

291001519

$5.49

1910

Torx Screw M8 X 40, Stainless

250000452

$3.91

1915

Flat Washer M8.5 x 18

293050001

$3.07

1920

Flat Washer 8 mm, Stainless

234082600

$2.43

1925

Rubber Washer

293830037

$2.68

1930

Flat Washer 8 mm, Stainless

250200175

$3.06

1940

Hex. Elastic Nut M8 Brass

232581200

$2.22

1950

Lateral Arm LH

291002711

$33.99

1960

Lateral Arm RH

291002712

$33.99

1970

Hex. Screw M6 X 100

230060060

$7.41

1980

Flat Washer M6, Stainless

234062600

$0.77

1990

Elastic Stop Nut M6, Brass

232561200

$4.23

2050>2050c

Wakeboard Rack

295100453

$239.49

2050a

Wakeboard Rack

295100453

$239.49

2050a3

Elastic Rope Ass'y

291002979

$37.99

2050a4

Latch

291002980

$28.99

2050a5

Warning WAKE

219903228

Unavailable

2050a6

WAKE-PRO Decal

219903240

$30.99

2050a7

Rubber Bumper

293830005

$8.09

2050a8

Rubber Buffer

293830119

$18.49

2050a9

Flange Torx Screw K40 X 16

250000287

$2.11

2050b

Lower Anchorage

291002864

$16.49

2050c

Torx Screw Plastite M6

250000466

$6.98

2070

Upper Anchorage

291003104

$16.49

2080

Torx Screw Plastite M6

250000466

$6.98

2250

Deep Black, Body Deflector

291004273

$26.99

2260

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

3010

Flange Torx Screw K40 X 16

250000287

$2.11

3020

Torx Screw K40 X 16 | Canada/USA

250000735

$3.91

3030

Pop Rivet 3/16"

293150123

$4.29

3040

Hex. Flange Screw M5 X 30

207153060

$1.99

3050

Flat Washer | XT

211200035

$0.55

3060

Elastic Stop Nut 5 mm

232551200

$1.47

3070

Tuflok Plastic Rivet

293150230

$1.47

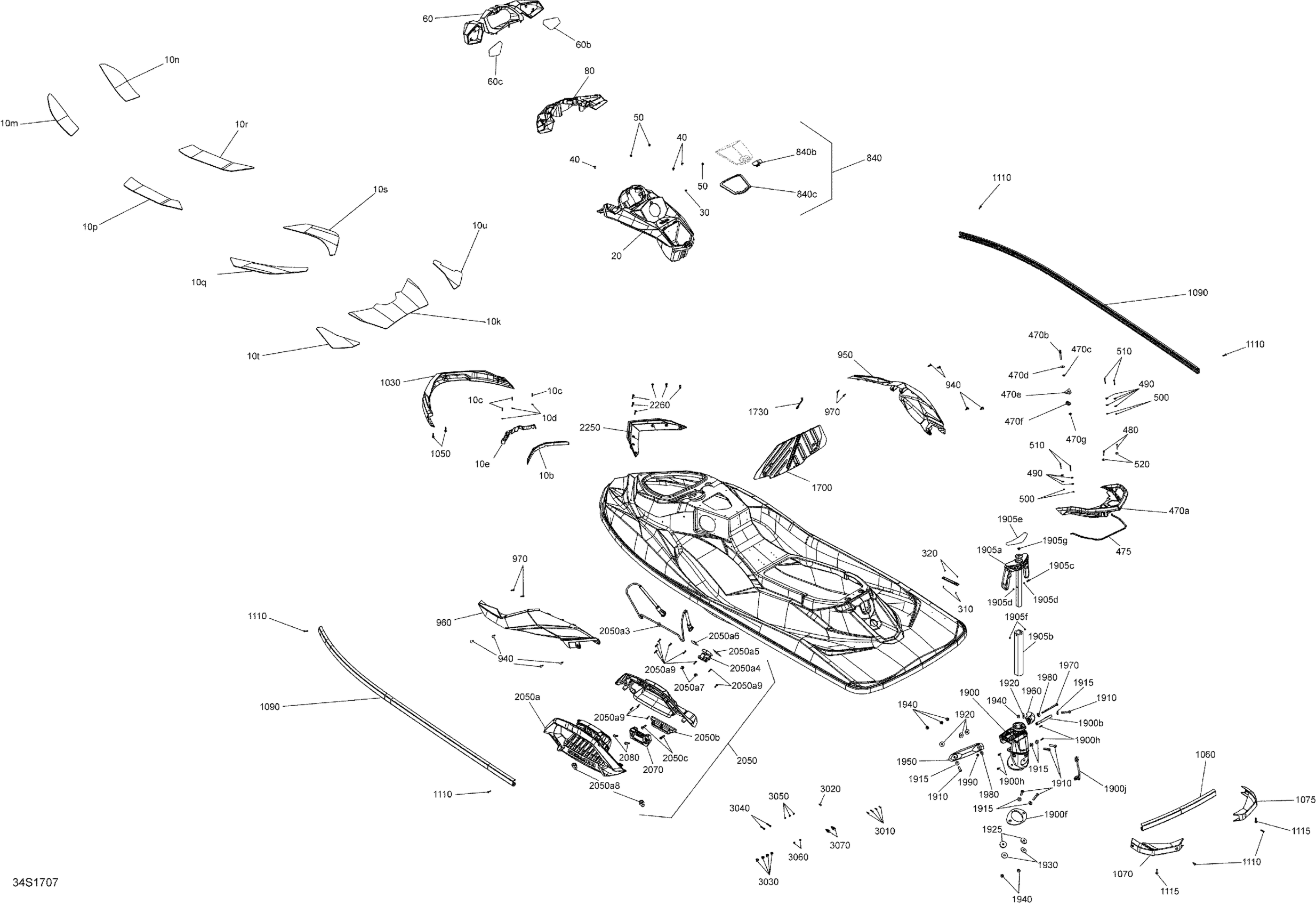

Sea-doo Wake, 2017 Body - All Models Diagram
