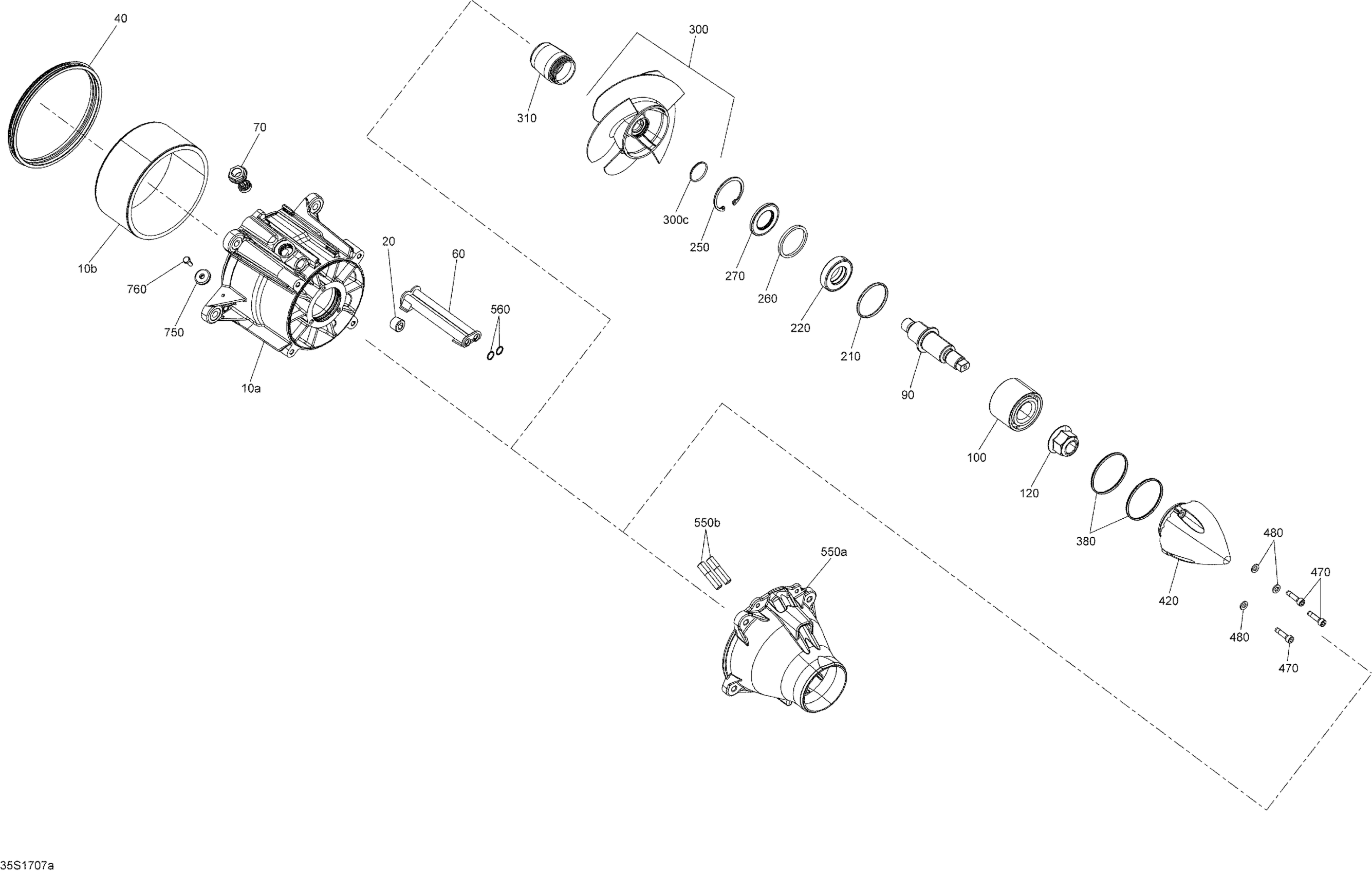

Sea-doo Wake, 2017 Pump - All Models Diagram

#

Description
Price

10a

Impeller Housing

271002018

$294.99

10b

Wear Ring

267000419

$84.99

20

Black, Plastic Plug

267000469

$7.59

40

Neoprene Seal

293200087

$12.63

60

Water Outlet

271000785

$3.80

70

Plug | Includes 370z to 370z1

267000282

$19.49

90

Impeller Shaft

267000388

$116.49

100

Angled Bearing This part replaces 267000030.

267000900

$80.99

120

Elastic Flange Nut M20

250100104

$12.66

210

O-Ring

293300090

$7.20

220

Seal

271002071

$33.99

250

Circlip

293370038

$8.79

260

Spacer

271001393

$8.59

270

Oil Seal

293200089

$19.99

300>300c

Impeller Ass'y | Starboard, Includes 19 to 20 This part replaces 267000431.

267000940

$391.99

300c

O-Ring

293300114

$15.89

310

Guard

271002225

$11.99

380

O-Ring

293300086

$3.59

420

Impeller Cover

267000428

$18.49

470

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

480

Stainless Flat Washer M6

234061600

$0.33

550a

Venturi | With IBR

267000864

$211.99

550b

Siphon Tube

271001885

$2.49

560

O-Ring

293300013

$8.18

750

Anode Zinc

271001920

$15.99

760

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.15
