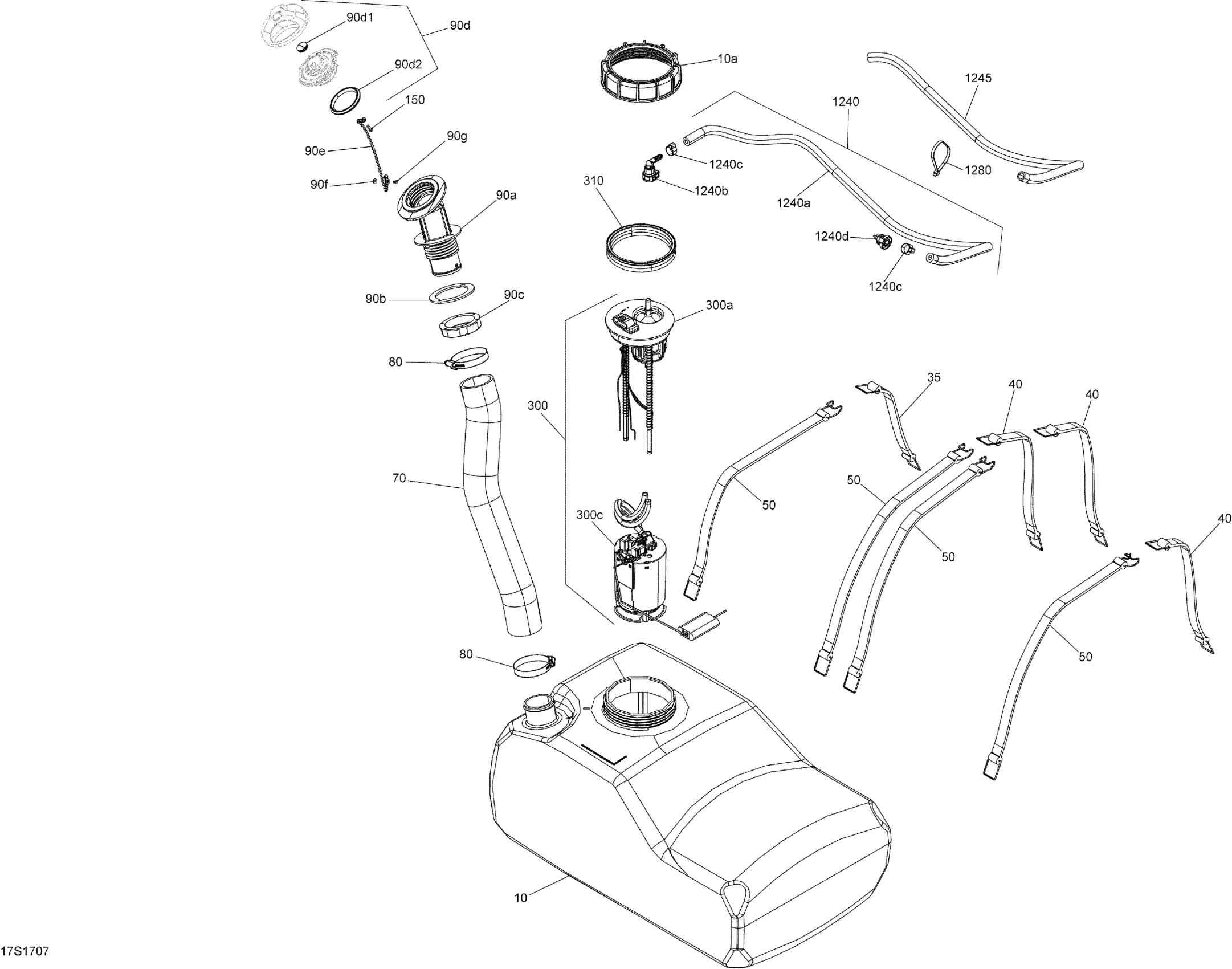

Sea-doo Wake, 2017 Fuel System - All Models Diagram

#

Description
Price

10>10a

Fuel Tank

275500962

$359.99

10a

Special Nut M130

250100062

$21.99

10a

Special Nut M130

250100062

$21.99

35

Fuel Tank Strap

293850087

$19.99

40

Fuel Tank Strap

293850093

$21.99

50

Fuel Tank Strap

293850101

$17.49

70

Hose

275500918

$83.99

80

Norma Clamp

293650081

$12.18

90a

Filler Neck

275500845

$36.99

90b

Gasket

293250029

$14.82

90c

Filler Neck Nut, Fuel

211100012

$14.22

90d>90d2

Fuel Cap Ass'y | Includes 90b to 90b8

275500975

$59.49

90d1

Black, Snap Cap

293000034

$9.39

90d2

Gasket

293250417

$3.91

90e

Fuel Cap Chain

275500972

$18.54

90f

Flat Washer M3, Stainless

234032600

$0.55

90g

Pop Rivet 1/8"

390407900

$1.49

150

Screw K40 X 10

241140060

$1.48

300>300c

Pump Fuel Ass'y | Includes 300 to 300b

275500996

$425.99

300a

Sensor Lever

275500780

$224.99

300c

Fuel Filter

270600113

$33.99

310

Gasket

293250173

$18.49

1240a

HOSE I.D. 7.9MM 3000MM LONG - Call your local BRP dealership

219704395

Unavailable

1240b

Quick Disconnect

275500921

$16.49

1240c

Crimp Clamp

293650053

$3.09

1240d

Elbow Fitting 90°

293710105

$14.22

1245

Tubing 16 Mm 1000Mm Long

219704408

$7.49

1245

Tubing 16 Mm 1000Mm Long

219704408

$7.49

1280

Tie Wrap 368 mm

293750008

$1.04
