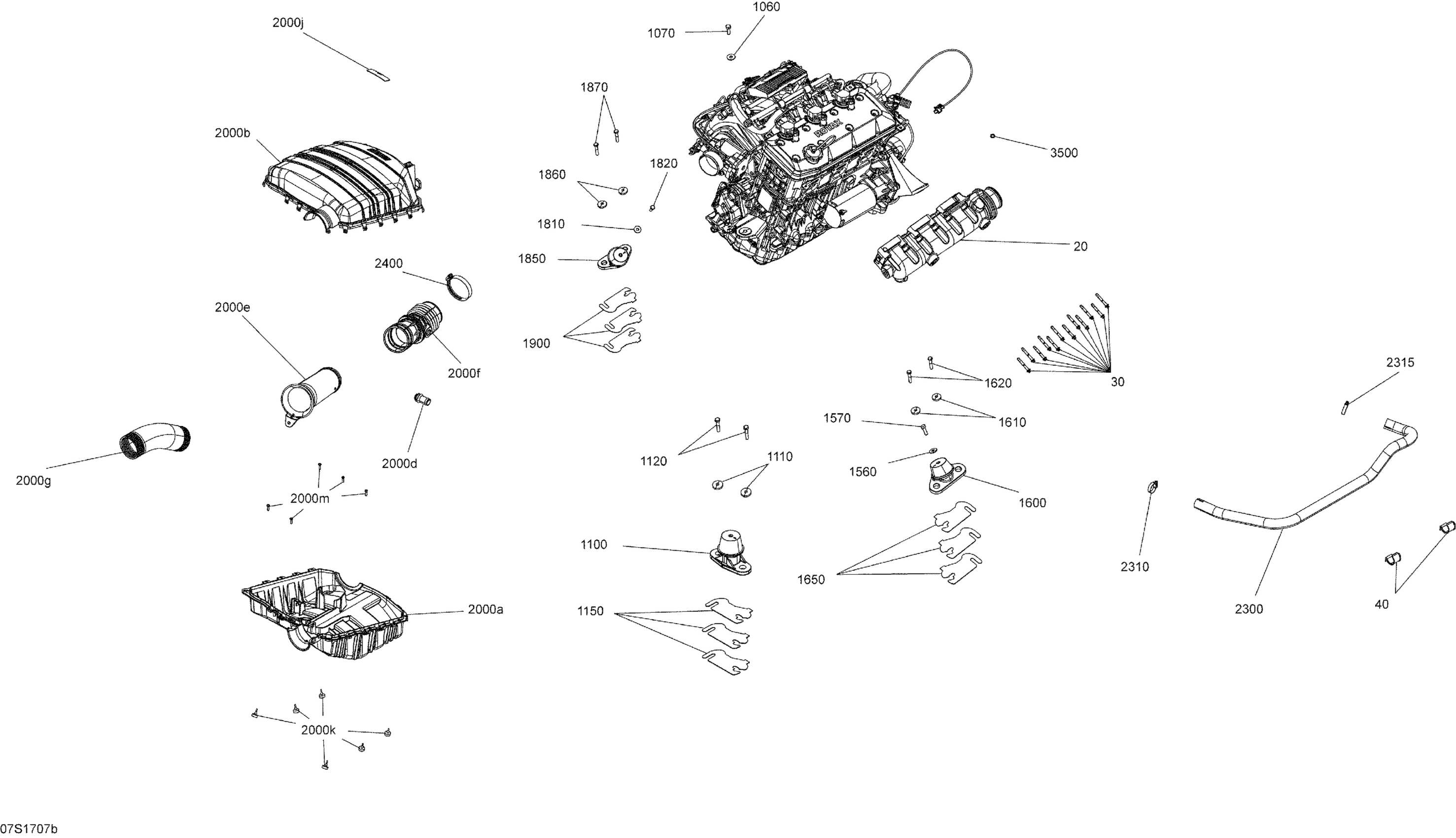

Sea-doo Wake, 2017 Engine - All Models Diagram

#

Description
Price

20

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$839.99

30

Torx Flange Screw M6 X 45

420641198

$4.12

40

Retainer

275500664

$14.75

1060

Flat Washer 8 mm, Stainless

234082600

$2.43

1070

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

1100

Engine Support Ass'y

270001096

$97.99

1110

Cone Washer

250200018

$5.61

1120

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

1150

Shim 1.3 mm

270000762

$12.99

1560

Flat Washer 8 mm, Stainless

234082600

$2.43

1570

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

1600

Engine Support Ass'y

270001081

$109.99

1610

Cone Washer

250200018

$5.61

1620

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

1650

Shim 1.3 mm

270000762

$12.99

1810

Flat Washer 8 mm, Stainless

234082600

$2.43

1820

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

1850

Engine Support Ass'y

270001081

$109.99

1860

Cone Washer

250200018

$5.61

1870

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

1900

Shim 1.3 mm

270000762

$12.99

2000a

Airbox Base

273000354

$57.99

2000b

Airbox Cover

273000371

$73.99

2000d

Breather Valve

273000234

$14.49

2000e

Intake Hose

273000358

$22.49

2000f

Hose Connector

273000292

$52.99

2000g

Air Silencer Hose

273000290

$22.49

2000j

Air Silencer Notice Decal

219903177

Unavailable

2000k

Rubber Stopper

708000759

$4.19

2000m

Flange Torx Screw K40 X 16

250000287

$2.11

2300

Formed Hose

270000949

$47.99

2310

Tridon Gear Clamp

293650051

$4.19

2315

Tridon Gear Clamp

293650051

$4.19

2400

Tridon Clamp

293650179

$11.49

3500

Tie Wrap 142 mm

293750002

$1.25
