09- Body

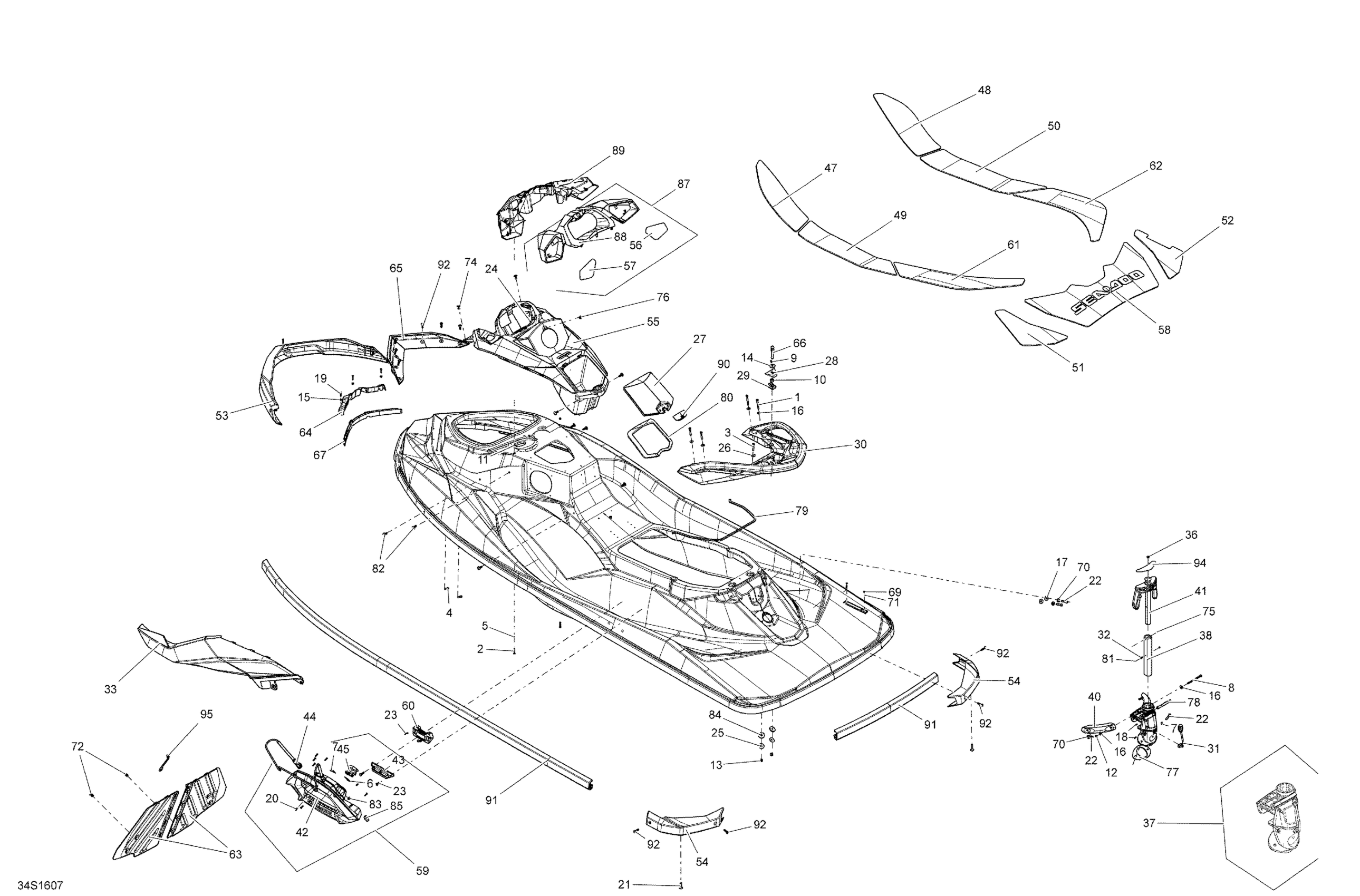

Sea-doo Wake, 2016 09- Body Diagram
#
1
Hex. Screw M6 x 55
207065560
$1.01
2
Hex. Flange Screw M5 X 30
207153060
$1.99
3
Hex. Screw M6 X 40
207164060
$3.38
4
Hex. Screw 10-14 X 7/8”
211000023
$3.59
5
Flat Washer | XT
211200035
$0.55
6
Warning WAKE
219903228
Unavailable
7
WAKE-PRO Decal
219903240
$30.99
8
Hex. Screw M6 X 100
230060060
$7.41
9
Hex. Jam Nut M10
232100600
$2.22
10
Elastic Stop Nut M10, Brass
232501200
$2.64
11
Elastic Stop Nut 5 mm
232551200
$1.47
12
Elastic Stop Nut M6, Brass
232561200
$4.23
13
Hex. Elastic Nut M8 Brass
232581200
$2.22
14
Flat Washer 10 mm, Stainless
234002600
$2.22
15
Flat Washer 4 mm, Stainless
234042600
$1.15
16
Flat Washer M6, Stainless
234062600
$0.77
17
Flat Washer 8 mm, Stainless
234082600
$2.43
18
Hex. Flange Screw K40 X 13
241141360
$0.67
19
Hex. Flange Screw K40 X 25
241142560
$2.64
20
Flange Torx Screw K40 X 16
250000287
$2.11
21
Hexagonal Cap Screw M6 X35
250000399
$4.44
22
Torx Screw M8 X 40, Stainless
250000452
$3.91
23
Torx Screw Plastite M6
250000466
$6.98
24
Torx Screw K40 X 16 | Canada/USA
250000735
$3.91
25
Flat Washer 8 mm, Stainless
250200175
$3.06
26
Flat Washer M6.6 X 22
250200022
$2.72
27
Deep Black, Glove Door Ass'y | Includes 840 TO 840c
269502140
$65.99
28
Seat Stud Spacer
269002125
$8.19
29
SEAT STUD SUPPORT - Call your local BRP dealership
269002126
$8.19
30
Manta Green, Rear Handle Ass'y | Includes 470 TO 470g
291004627
$153.49
31
Strap
269501299
$19.49
32
Ball Spring
269501651
$11.99
33
TRIM_HOOD RH B-400 - Call your local BRP dealership
269502169
Unavailable
33
TRIM_HOOD LH B-400 - Call your local BRP dealership
269502170
Unavailable
36
Bumper Plug, Black
291001519
$5.49
37
Support Sub-Ass'y | Includes 1900 TO 1900d
291002553
$294.99
38
ALUMINUM POST - Call your local BRP dealership
291002642
Unavailable
40
Lateral Arm RH
291002712
$33.99
40
Lateral Arm LH
291002711
$33.99
41
Molded Handle
291004766
$195.99
42
Wakeboard Rack
295100453
$239.49
43
Lower Anchorage
291002864
$16.49
44
Elastic Rope Ass'y
291002979
$37.99
45
Latch
291002980
$28.99
47
Front Carpet LH
291003058
$24.99
48
Front Carpet RH
291003059
$24.99
49
Front Center Carpet LH
291003060
$28.49
50
Front Center Carpet RH
291003061
$28.49
51
Rear Carpet LH
291003062
$20.49
52
Rear Carpet RH
291003063
$20.49
53
Front Bumper This part replaces 291005401.
291004277
$76.49
54
Black, Corner Bumper This part replaces 291004152.
291004278
$33.99
54
Black, Corner Bumper This part replaces 291004153.
291004279
$33.99
55
Console
291004276
$134.99
56
Mirror RH, With Double-Face Tape
291003090
$48.49
57
Mirror LH, With Double-Face Tape
291003091
$48.49
58
Swim Platform Carpet
291003096
$88.99
59
Wakeboard Rack
295100453
$239.49
60
Upper Anchorage
291003104
$16.49
61
Rear Center Carpet LH
291003329
$34.99
62
Rear Center Carpet RH
291003330
$34.99
63
Divider Ass'y
291004572
$104.99
64
Bumper Support | Package SE Manta Green
291003704
$21.99
65
Deep Black, Body Deflector
291004273
$26.99
66
Stud Seat
291003877
$48.99
67
Deck Nose
291003897
$18.99
69
Black, Snap Cap
293000014
$1.09
70
Flat Washer M8.5 x 18
293050001
$3.07
71
Rivet 1/8"
293150016
$0.40
72
Tuflok Plastic Rivet
293150230
$1.47
74
Pop Rivet 3/16"
293150123
$4.29
75
Type "U" Metallic Drive Screw
293150167
$2.29
76
Pop Rivet 3/16
293150186
$2.09
77
Seal
293250151
$10.99
78
Replacing Kit for Pylon Strap
295100740
$26.49
79
Gasket 3000Mm Long
219704378
$26.49
80
Gasket
293250236
$41.49
81
Ball 1/4"
293350062
$2.69
82
Black, Dart
293730006
$0.99
83
Rubber Bumper
293830005
$8.09
84
Rubber Washer
293830037
$2.68
85
Rubber Buffer
293830119
$18.49
87
Manta Green, Bezel Ass'y | Includes 60 TO 60c
291004264
$94.99
89
Deep Black, Mirror Support
291004271
$48.99
90
Black, Latch
264000164
$15.99
91
Lateral Bumper
291003872
$148.49
92
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
94
Warning Label
219903137
Unavailable
95
Holding Strap
269502111
$18.49
