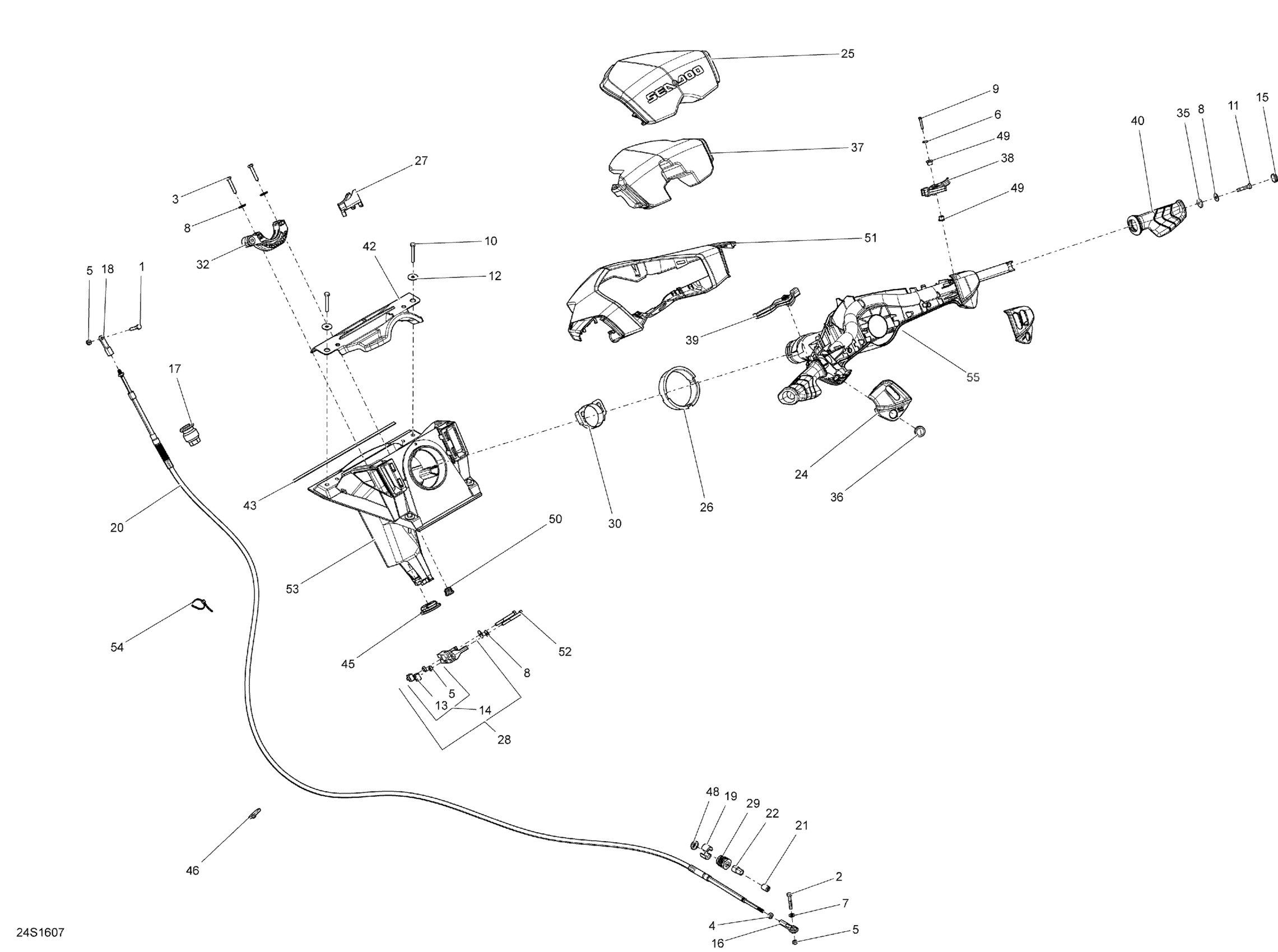

Sea-doo Wake, 2016 Steering Diagram

#

Description
Price

1

Hex. Screw M6 X 30

207063060

$1.51

2

Hex. Screw M6 X 35

207063560

$1.85

3

Hex. Screw M6 X 35

207163560

$1.17

4

Hex. Nut 1/4"-28

211100056

$0.56

5

Elastic Stop Nut M6, Brass

232561200

$3.51

6

Flat Washer 4 mm, Stainless

234042600

$0.92

7

Stainless Flat Washer M6

234061600

$0.25

8

Flat Washer M6, Stainless

234062600

$0.64

9

Hex. Flange Screw K40 X 25

241142560

$2.17

10

Hex Cap Screw M6X1.0X45 S.Grip

245064560

$1.85

11

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.75

12

Flat Washer M6.6 X 22

250200022

$1.87

13

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

14

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

15

Black, Cap

277000203

$7.48

16

Ball Joint

277000775

$40.27

17

Ajustment Knob

277000782

$16.22

18

Ball Joint

277001180

$27.92

19

Half Ring

277001527

$8.35

20

Steering Cable Ass'y | Includes 540 TO 540d

277001578

$169.62

21

Wiper Rod

277001582

$8.83

22

End Piece

277001583

$11.14

24

Housing Cover RH

277001625

$15.57

24

Housing Cover LH

277001860

$17.52

25

Black Steering Pad | Package SE, B-414 Metalic Blue Long Beach

277001904

$44.82

26

Wear Ring

277001653

$9.74

27

Spacer

277001654

$11.40

28

Thrust Support Ass'y

277001655

$22.72

29

Steering Cable Lock This part replaces 277000784.

277001729

$10.41

30

Wear Ring

277002318

$12.43

32

Support Ass'y | Includes 460 to 460b

277002179

$17.52

35

Insert Grip Handle

277001863

$7.70

36

Red, Knob Switch

277001887

$7.54

36

Grey Knob Switch

277001888

$11.06

37

Handlebar Foam

277001921

$71.47

38

Throttle Handle

277001944

$30.52

39

Reverse Handle

277001945

$34.42

40

Deep Black, RH Handle Grip

277001946

$15.57

40

Deep Black, LH Handle Grip

277001958

$15.57

42

Deflector

293000116

$22.07

43

GASKET PAC = 1.0m - Call your local BRP dealership

293250008

Unavailable

45

Cable Grommet

293720090

$6.59

46

Tie Wrap 368 mm

293750008

$0.85

47

Was 293800013 Loctite 56765

219704454

$65.35

48

Rubber Washer

293830063

$1.51

49

Bushing

293900091

$3.34

50

Cap

517302716

$3.73

51

Steering Cover | IBR

277001969

$53.27

52

Hex. Screw M6 X 50

207165060

$0.75

53

Support Ass'y | Includes 710 TO 710e

277001971

$90.32

54

Tie-Rap 180 mm

414115200

$0.09

55

Steering Column

277001963

$306.12
