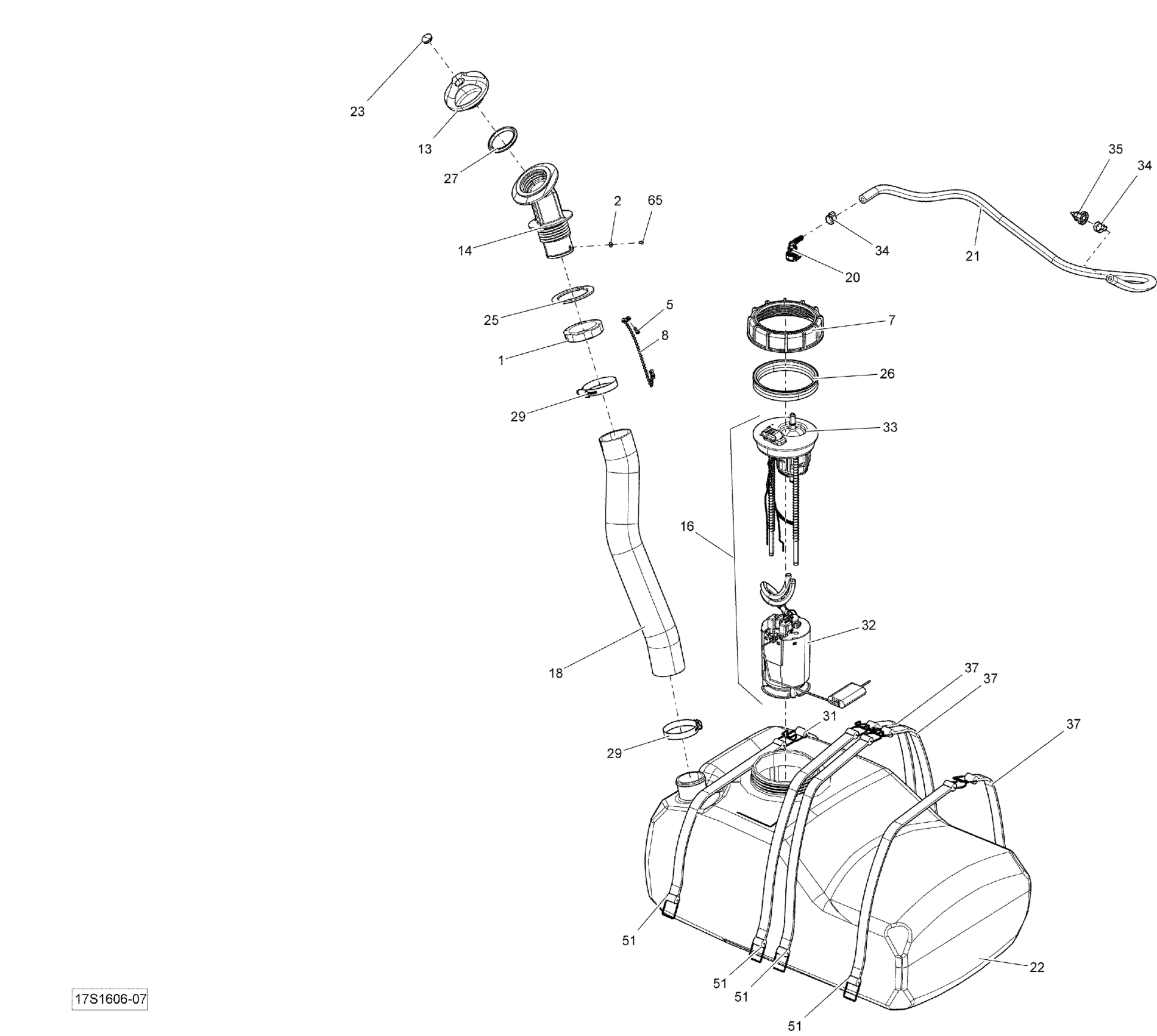

Sea-doo Wake, 2016 Fuel System Diagram

#

Description
Price

1

Filler Neck Nut, Fuel

211100012

$11.51

2

Flat Washer M3, Stainless

234032600

$0.52

4

Stainless Flat Washer M6

234061600

$0.28

5

Screw K40 X 10

241140060

$1.43

6

Torx Screw M6 X 25, Scotch Grip

250000328

$1.67

7

Special Nut M130

250100062

$20.12

8

Fuel Cap Chain

275500507

$15.64

9

FUEL TANK ASS'Y - Call your local BRP dealership | Includes 10 to 10a

275500783

Unavailable

10

FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.

275500757

Unavailable

12

Fuel Cap Ass'y

275500832

$69.37

13

Fuel Cap Ass'y | Includes 90b to 90b8

275500975

$55.19

14

Filler Neck

275500845

$36.54

15

Fuel Filler Neck

275500848

$39.49

16

Pump Fuel Ass'y | Includes 300 to 300b

275500996

$426.84

17

HOSE - Call your local BRP dealership

275500917

Unavailable

18

Hose

275500918

$74.60

19

Hose

275500919

$84.30

20

Quick Disconnect

275500921

$14.48

21

HOSE I.D. 7.9MM 3000MM LONG - Call your local BRP dealership

219704395

Unavailable

22

Fuel Tank

275500962

$320.87

23

Black, Snap Cap

293000034

$8.58

24

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

25

Gasket

293250029

$13.85

26

Gasket

293250173

$17.88

27

Gasket

293250417

$3.64

28

X-Ring

293300139

$22.36

29

Norma Clamp

293650081

$11.33

30

Tie Wrap 368 mm

293750008

$0.97

31

Fuel Tank Strap

293850087

$16.39

32

Sensor Lever

275500780

$202.21

33

Fuel Filter

270600113

$31.31

34

Crimp Clamp

293650053

$2.78

35

Elbow Fitting 90°

293710105

$12.15

37

Fuel Tank Strap

293850093

$19.37

46

Fuel Tank Strap

293850094

$20.12

51

Fuel Tank Strap

293850101

$15.64

63

Fuel Tank Strap

293850095

$16.39

65

Pop Rivet 1/8"

390407900

$1.34

66

Tie-Rap 180 mm

414115200

$0.10

68

Tubing 16 Mm 1000Mm Long

219704408

$7.15
