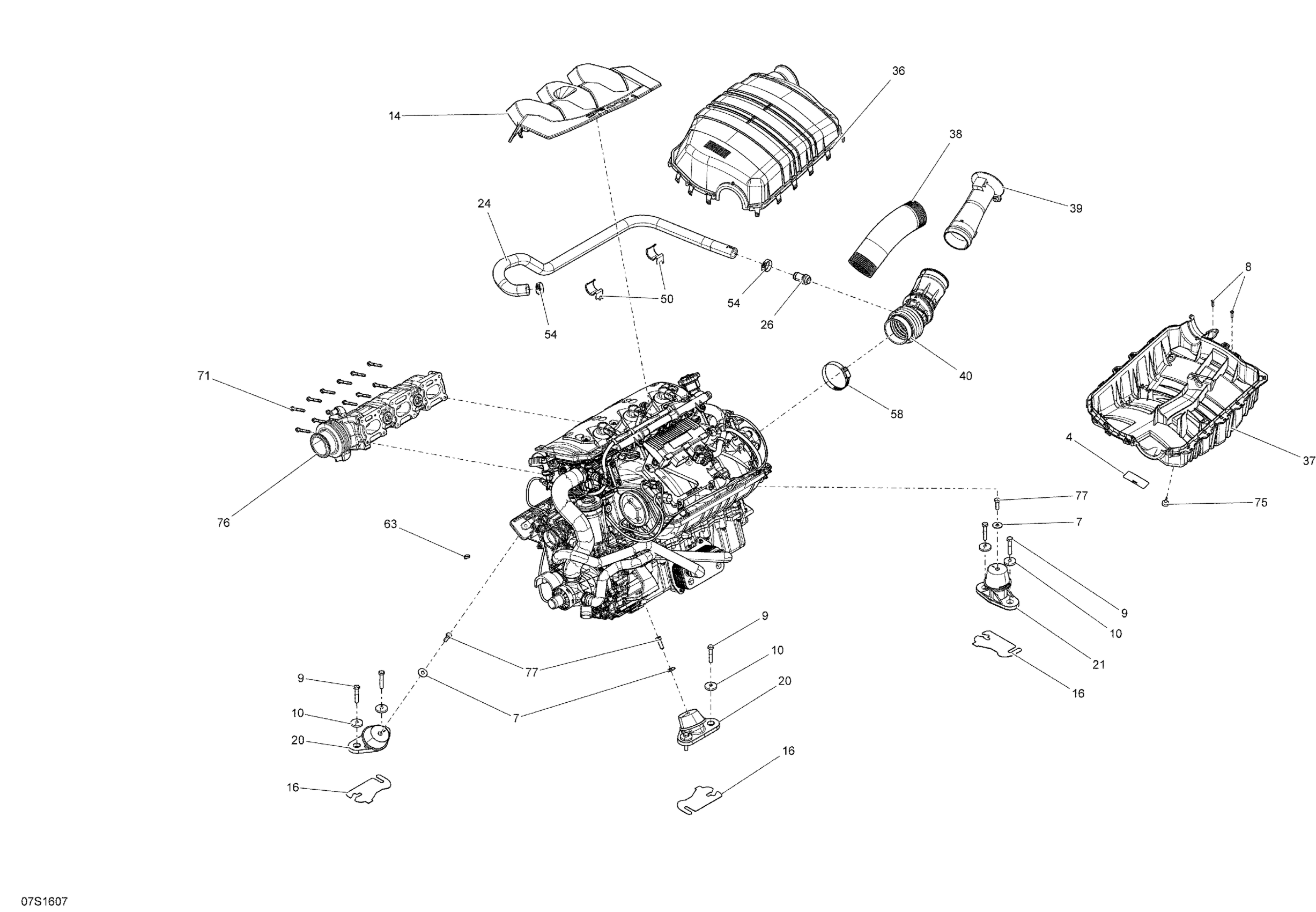

Sea-doo Wake, 2016 Engine Diagram

#

Description
Price

4

Air Silencer Notice Decal

219903177

Unavailable

7

Flat Washer 8 mm, Stainless

234082600

$2.43

8

Flange Torx Screw K40 X 16

250000287

$2.11

9

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

10

Cone Washer

250200018

$5.61

14

COVER - Call your local BRP dealership

270000999

Unavailable

16

Shim 1.3 mm

270000762

$12.99

20

Engine Support Ass'y

270001081

$109.99

21

Engine Support Ass'y

270001096

$97.99

24

Formed Hose

270000949

$47.99

26

Breather Valve

273000234

$14.49

36

Airbox Cover

273000371

$73.99

37

Airbox Base

273000354

$57.99

38

Air Silencer Hose

273000290

$22.49

39

Intake Hose

273000358

$22.49

40

Hose Connector

273000292

$52.99

50

Retainer

275500664

$14.75

54

Tridon Gear Clamp

293650051

$4.19

58

Tridon Clamp

293650179

$11.49

63

Tie Wrap 142 mm

293750002

$1.25

71

Torx Flange Screw M6 X 45

420641198

$4.12

75

Rubber Stopper

708000759

$4.19

76

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$839.99

77

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43
