Description

Price

1

HEX SCREW M8 X 50 - Call your local BRP dealership

207185060

$1.65

2

Hex. Screw M10 X 20, Scotch Grip

207302060

$3.29

3

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

4

Hex. Screw 10-14 X 7/8”

211000023

$2.91

6

Elastic Stop Nut M6, Brass

232561200

$3.51

7

Flat Washer 10 mm, Stainless

234000600

$1.07

8

Stainless Flat Washer M6

234061600

$0.25

9

Flat Washer 8 mm, Stainless

234082600

$1.98

13

Safety Nut (DESS Switch)

278002963

$2.72

22

Battery, 30 Amperes

278001882

$152.72

31

Cable-Starter

278003398

$50.02

33

Throttle Position Sensor

278002283

$94.22

46

LH Throttle Sensor

278002284

$115.35

95

O.T.A.S. Sensor Ass'y

278003009

$86.42

97

Battery Support

278003306

$14.92

99

Starter Relay

278003012

$35.07

110

Battery Ground Cable

278003270

$41.51

113

Switch RH Mode/Set

278002602

$100.72

123

Diagnostic Connector

278002704

$15.57

127

LCD Gauge | Model GTI LTD 155

278003378

$926.87

145

Switch LH Sport/Eco

278002768

$66.92

161

Main Harness Ass'y

278003256

$609.02

168

Support

278003048

$17.52

169

O.T.A.S Actuator

278003537

$33.12

171

Safety Lanyard Ass'y, RFID

278003400

$58.47

171

Safety Lanyard Ass'y, Learning / RFID

278003401

$58.47

180

Steering Harness Ass'y | GTI LTD, WAKE

278003262

$327.66

191

Tie Wrap 368 mm

293750008

$0.85

196

Battery Bolt Kit

250000282

$2.95

201

Tie-Rap 180 mm

414115200

$0.09

209

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

222

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

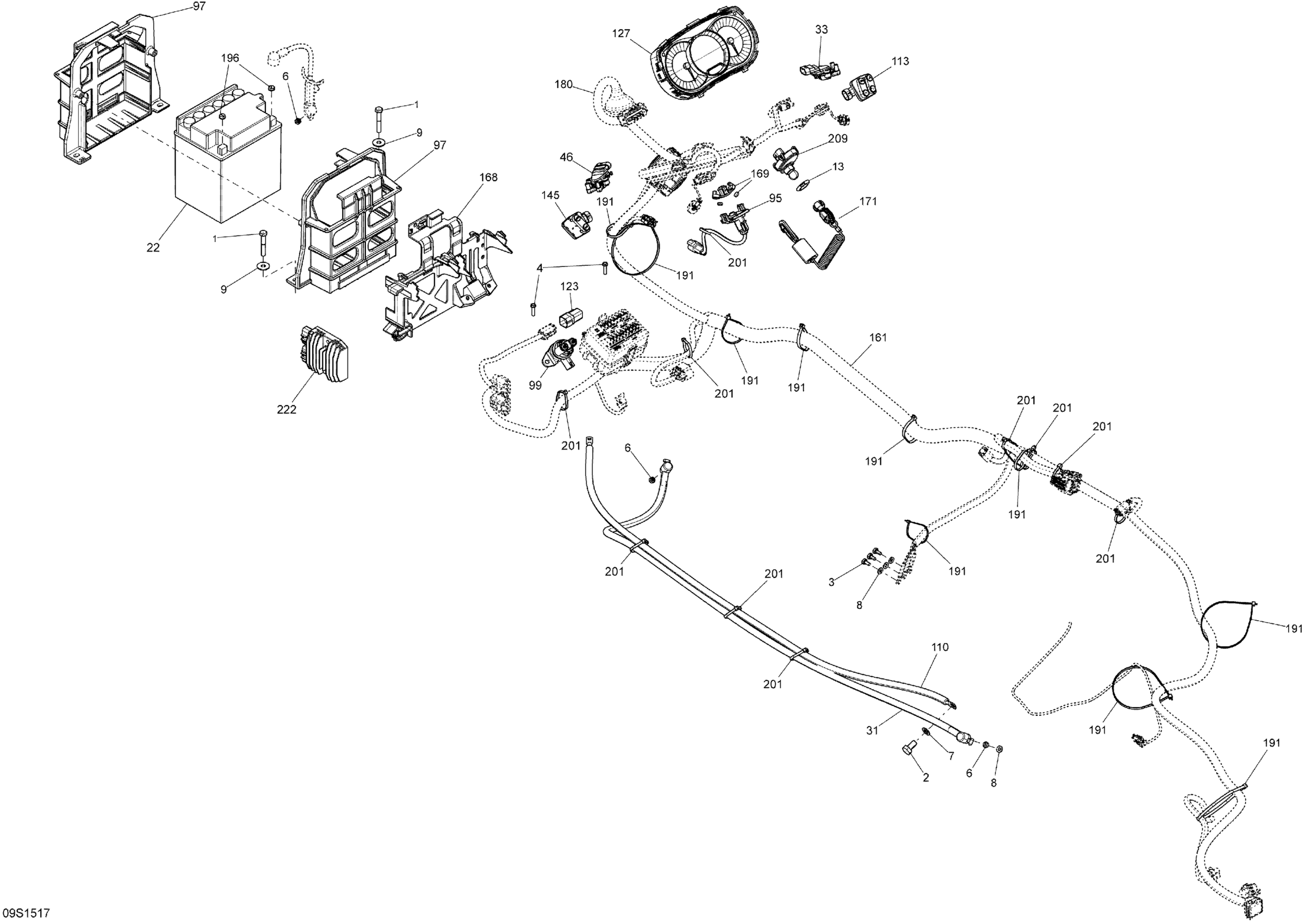

Sea-doo WAKE 155, 2015 Electrical System _09S1517 Diagram
