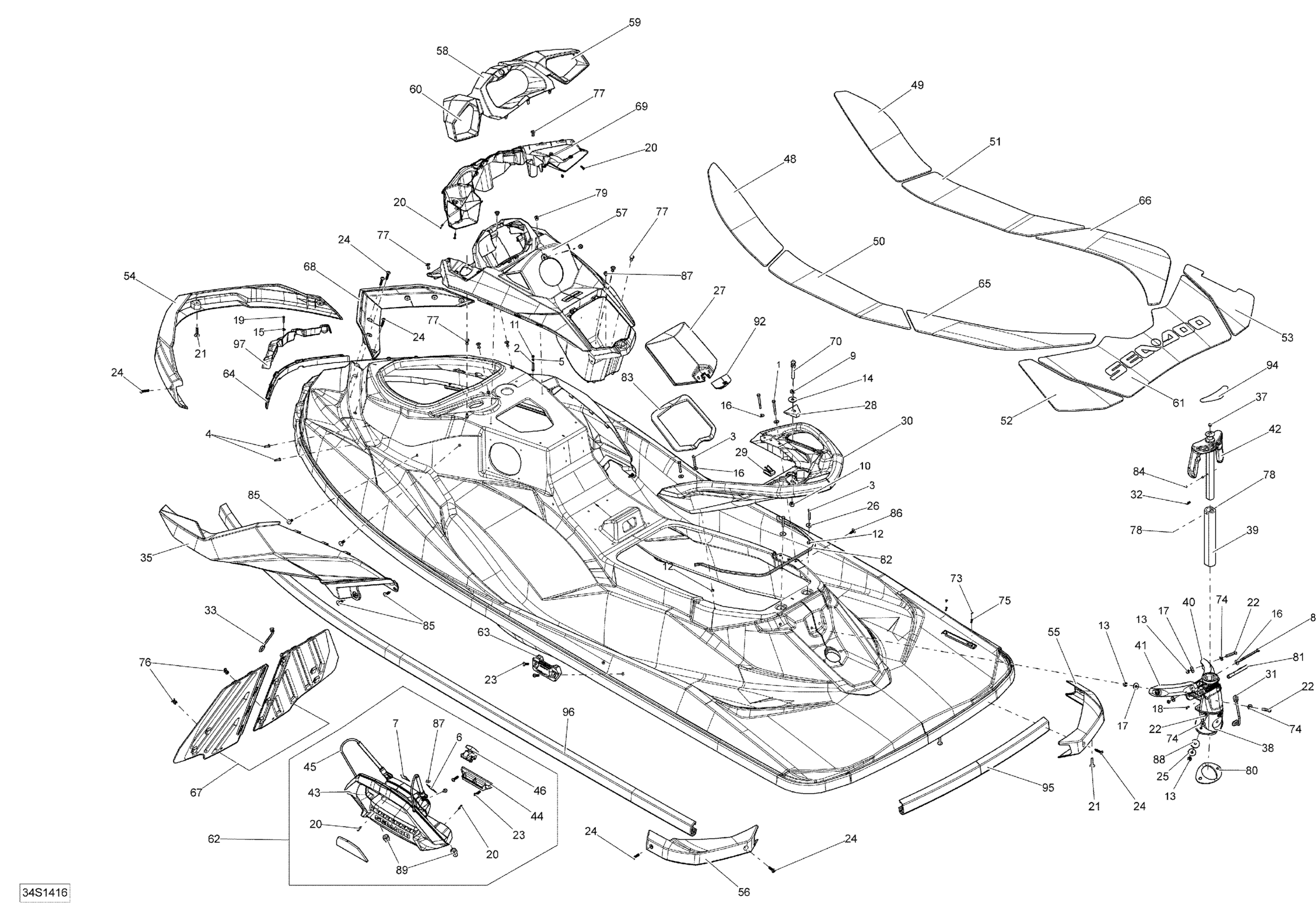

Sea-doo WAKE 155, 2014 Body _34S1416 Diagram

Hex. Screw M6 x 55

207065560

$0.83

Hex. Flange Screw M5 X 30

207153060

$1.53

Hex. Screw M6 X 40

207164060

$2.74

Hex. Screw 10-14 X 7/8”

211000023

$2.91

Flat Washer | XT

211200035

$0.46

Warning WAKE

219903228

Unavailable

WAKE-PRO Decal

219903240

$32.28

Hex. Screw M6 X 100

230060060

$6.08

Hex. Jam Nut M10

232100600

$1.85

Elastic Stop Nut M10, Brass

232501200

$2.16

Elastic Stop Nut 5 mm

232551200

$1.22

Elastic Stop Nut M6, Brass

232561200

$3.51

Hex. Elastic Nut M8 Brass

232581200

$1.29

Flat Washer 10 mm, Stainless

234002600

$1.85

Flat Washer 4 mm, Stainless

234042600

$0.92

Flat Washer M6, Stainless

234062600

$0.64

Flat Washer 8 mm, Stainless

234082600

$1.98

Hex. Flange Screw K40 X 13

241141360

$0.56

Hex. Flange Screw K40 X 25

241142560

$2.17

Flange Torx Screw K40 X 16

250000287

$1.74

Hexagonal Cap Screw M6 X35

250000399

$3.61

Torx Screw M8 X 40, Stainless

250000452

$3.85

Torx Screw Plastite M6

250000466

$5.62

Screw Torx M6.81 X 30

250000626

$1.61

Flat Washer 8 mm, Stainless

250200175

$1.29

Flat Washer M6.6 X 22

250200022

$1.87

Deep Black, Glove Door Ass'y | Includes 840 TO 840c

269502140

$51.32

Seat Stud Spacer

269002125

$8.29

SEAT STUD SUPPORT - Call your local BRP dealership

269002126

Unavailable

Black, Rear Handle Ass'y

291004625

$113.07

Strap

269501299

$14.92

Ball Spring

269501651

$9.43

Holding Strap

269502111

$14.27

RH PANEL - Call your local BRP dealership This part replaces 269502013.

269502134

Unavailable

Black, LH Cosmetic Panel

269502336

$150.12

Bumper Plug, Black

291001519

$4.28

Support Sub-Ass'y | Includes 1900 TO 1900d

291002553

$227.47

ALUMINUM POST - Call your local BRP dealership

291002642

Unavailable

Lateral Arm LH

291002711

$25.97

Lateral Arm RH

291002712

$25.97

Molded Handle

291004766

$159.22

Wakeboard Rack

295100453

$190.42

Lower Anchorage

291002864

$11.78

Elastic Rope Ass'y

291002979

$36.89

Latch

291002980

$22.72

Front Carpet LH

291003058

$20.12

Front Carpet RH

291003059

$20.12

Front Center Carpet LH

291003060

$22.72

Front Center Carpet RH

291003061

$22.72

Rear Carpet LH

291003062

$16.22

Rear Carpet RH

291003063

$16.22

Front Bumper This part replaces 291005401.

291004277

$61.72

Black, Corner Bumper This part replaces 291004153.

291004279

$25.97

Black, Corner Bumper This part replaces 291004152.

291004278

$25.97

Console

291004276

$102.67

Black Bezel Ass'y | Package SE This part replaces 291004489.

291004261

$115.67

Mirror RH, With Double-Face Tape

291003090

$38.97

Mirror LH, With Double-Face Tape

291003091

$38.97

Swim Platform Carpet

291003096

$71.47

Wakeboard Rack

295100453

$190.42

Upper Anchorage

291003104

$11.78

Deck Nose

291003897

$13.62

Rear Center Carpet LH

291003329

$27.92

Rear Center Carpet RH

291003330

$27.92

Divider Ass'y

291004572

$81.87

Deep Black, Body Deflector

291004273

$20.77

Deep Black, Mirror Support

291004271

$38.32

Stud Seat

291003877

$38.32

Black, Snap Cap

293000014

$0.85

Flat Washer M8.5 x 18

293050001

$1.29

Rivet 1/8"

293150016

$0.29

Tuflok Plastic Rivet

293150230

$1.21

Pop Rivet 3/16"

293150123

$3.43

Type "U" Metallic Drive Screw

293150167

$1.46

Pop Rivet 3/16

293150186

$1.63

Seal

293250151

$8.40

Replacing Kit for Pylon Strap

295100740

$21.42

Gasket 3000Mm Long

219704378

$22.07

Gasket

293250236

$33.77

Ball 1/4"

293350062

$2.11

Black, Dart

293730006

$0.81

Black, Dart

293730011

$0.79

Rubber Bumper

293830005

$5.33

Rubber Washer

293830037

$2.75

Rubber Buffer

293830119

$17.66

Black, Latch

264000164

$11.40

Warning Label

219903137

Unavailable

Lateral Bumper

291003872

$78.43

Lateral Bumper

291003872

$78.43

Bumper Support | Package SE Manta Green

291003704

$16.87
