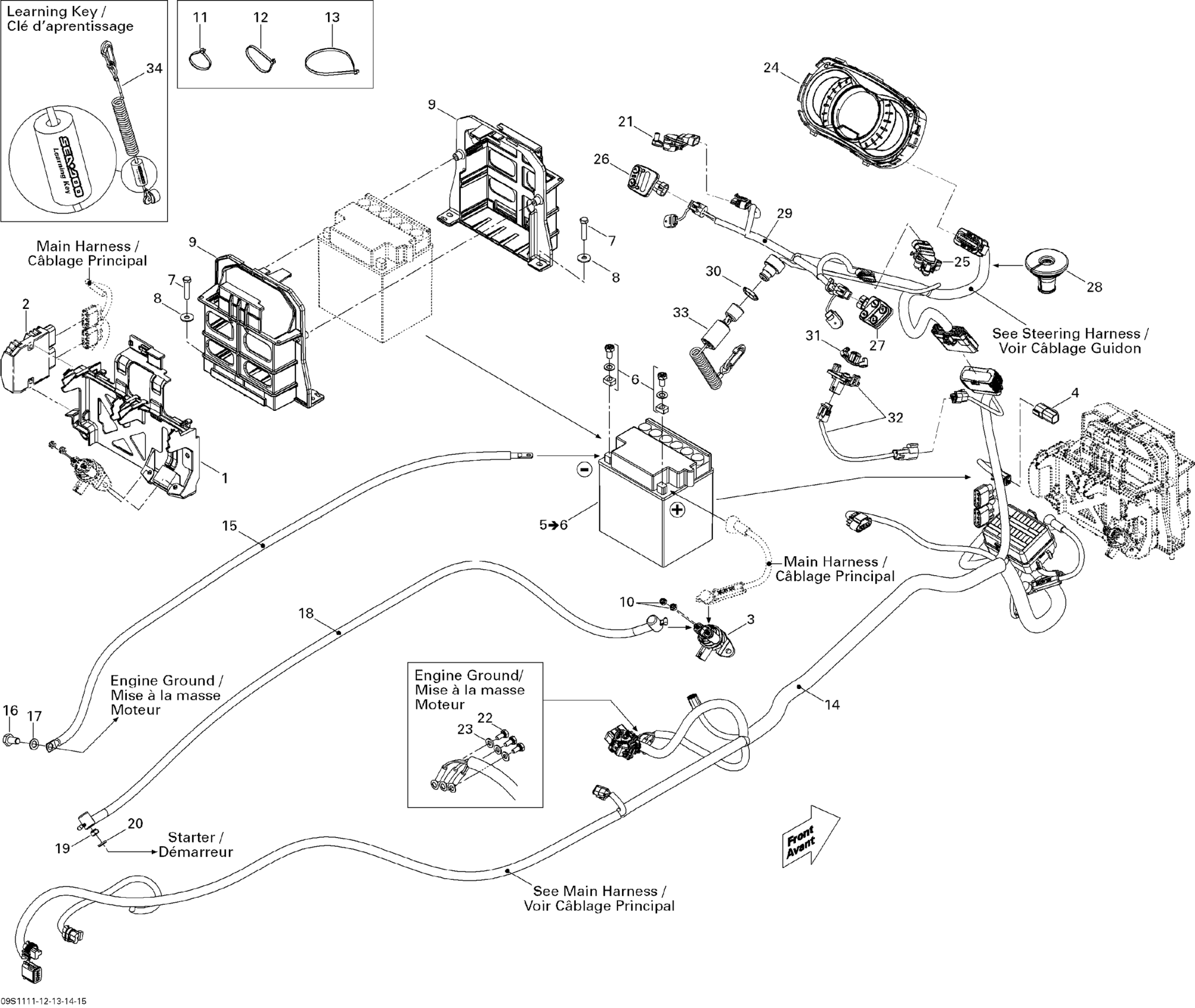

Sea-doo WAKE 155, 2012 Electrical System Diagram

#

Description
Price

1

Support

278003048

$21.99

2

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

3

Starter Relay

278003012

$42.49

4

Diagnostic Connector

278002704

$19.49

5

Battery, 30 Amperes

278001882

$184.01

6

Battery Bolt Kit

250000282

$7.29

7

Hex. Screw M8 X 40

207184060

$2.22

8

Flat Washer 8 mm, Stainless

234082600

$2.43

9

Battery Support

278003306

$20.99

10

Elastic Stop Nut M6, Brass

232561200

$4.23

11

Tie-Rap 180 mm

414115200

$0.11

12

Tie Wrap 368 mm

293750008

$1.04

13

Tie Rap, 533 mm

293750047

$2.09

14

Wiring Harness

278002943

$1.00

15

Battery Ground Cable

278003270

$41.49

16

Hex. Screw M10 X 20, Scotch Grip

207302060

$4.02

17

Flat Washer 10 mm, Stainless

234000600

$1.46

18

Cable-Starter

278003398

$63.99

19

Elastic Stop Nut M6, Brass

232561200

$4.23

20

Stainless Flat Washer M6

234061600

$0.33

21

LH Throttle Sensor

278002284

$119.99

22

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

23

Stainless Flat Washer M6

234061600

$0.33

24

LCD Gauge This part replaces 278002550.

278002803

$1.00

25

Throttle Position Sensor

278002283

$119.99

26

Not Available As Spare Parts

XXX

Unavailable

27

Switch RH Mode/Set

278002602

$126.99

28

Cable Grommet

293720092

$13.49

29

Steering Harness

278002335

$469.99

30

Safety Nut (DESS Switch)

278002963

$3.28

31

O.T.A.S Actuator

278003537

$42.99

32

O.T.A.S. Sensor Ass'y

278003009

$109.99

33

Safety Lanyard, Antitheft

278002483

$58.49

34

Safety Lanyard, Learning Key

278002484

$56.99
