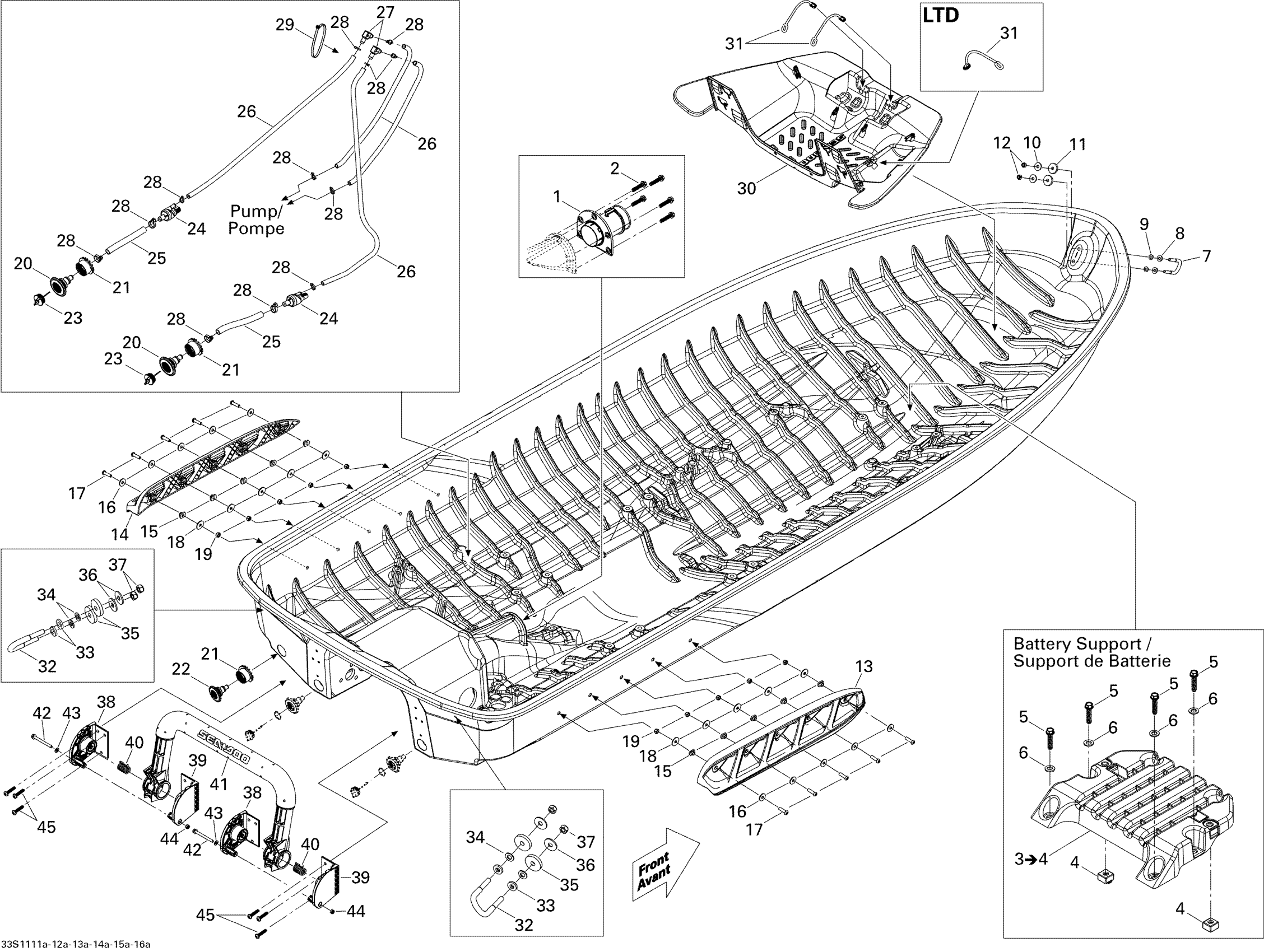

Sea-doo WAKE 155, 2012 09- Hull 1 Diagram

#

Description
Price

1

HULL INSERT - Call your local BRP dealership

293450304

Unavailable

2

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$2.19

3

Battery Base Ass'y

278002866

$38.99

4

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

5

Hex. Flange Screw M6.81 X 30

243163060

$2.32

6

Flat Washer M8, Stainless

234080600

$1.48

7

U-Clamp

292000933

$59.49

8

Flat Washer M8.5 x 18

293050001

$3.07

9

Flat Washer 8 mm, Nylon

234081100

$1.39

10

Flat Washer 8 mm, Stainless

250200175

$3.06

11

Rubber Washer

293830037

$2.68

12

Hex. Elastic Nut M8 Brass

232581200

$2.22

13

RH Sponson

292001878

$93.99

14

LH Sponson

292001877

$93.99

15

Spacer Sponson

292001349

$10.99

16

Flat Washer 8 mm, Stainless

234082600

$2.43

17

Torx Screw M8 X 40, Stainless

250000452

$3.91

18

Flat Washer 8 mm, Stainless

250200175

$3.06

19

Hex. Elastic Nut M8 Brass

232581200

$2.22

20

Drain Neck Ass'y

292001315

$27.99

21

Bushing

292001371

$17.49

22

Drain Neck Ass'y

292001317

$27.99

23

Plug Drain Ass'y | Includes 310 to 310b

292002024

$13.49

24

Bailer Ass'y

292001310

$23.99

25

Was 275500008 Hose 12 mm

219704356

$20.49

26

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

27

ELBOW FITTING 90 - Call your local BRP dealership

293710117

Unavailable

28

Tie Wrap 94 mm | 4X4

293750001

$1.03

29

Tie Wrap 368 mm

293750008

$1.04

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Strap

273000261

$16.49

32

U-Clamp

292000933

$59.49

33

Flat Washer M8.5 x 18

293050001

$3.07

34

Flat Washer 8 mm, Nylon

234081100

$1.39

35

Rubber Washer

293830037

$2.68

36

Flat Washer 8 mm, Stainless

250200175

$3.06

37

Hex. Elastic Nut M8 Brass

232581200

$2.22

38

A Section Support

292001509

$59.99

39

B Section Support

292001510

$59.99

40

Spring

292001259

$27.99

41

Overmolded Bar

292001204

$159.99

42

Hex. Screw M6 x 65 | Produced Before February 01 2010

207066560

$2.11

43

Stainless Flat Washer M6

234061600

$0.33

44

Hex. Elastic Stop Nut M6

232561600

$1.15

45

Torx Screw

250000468

$4.61
