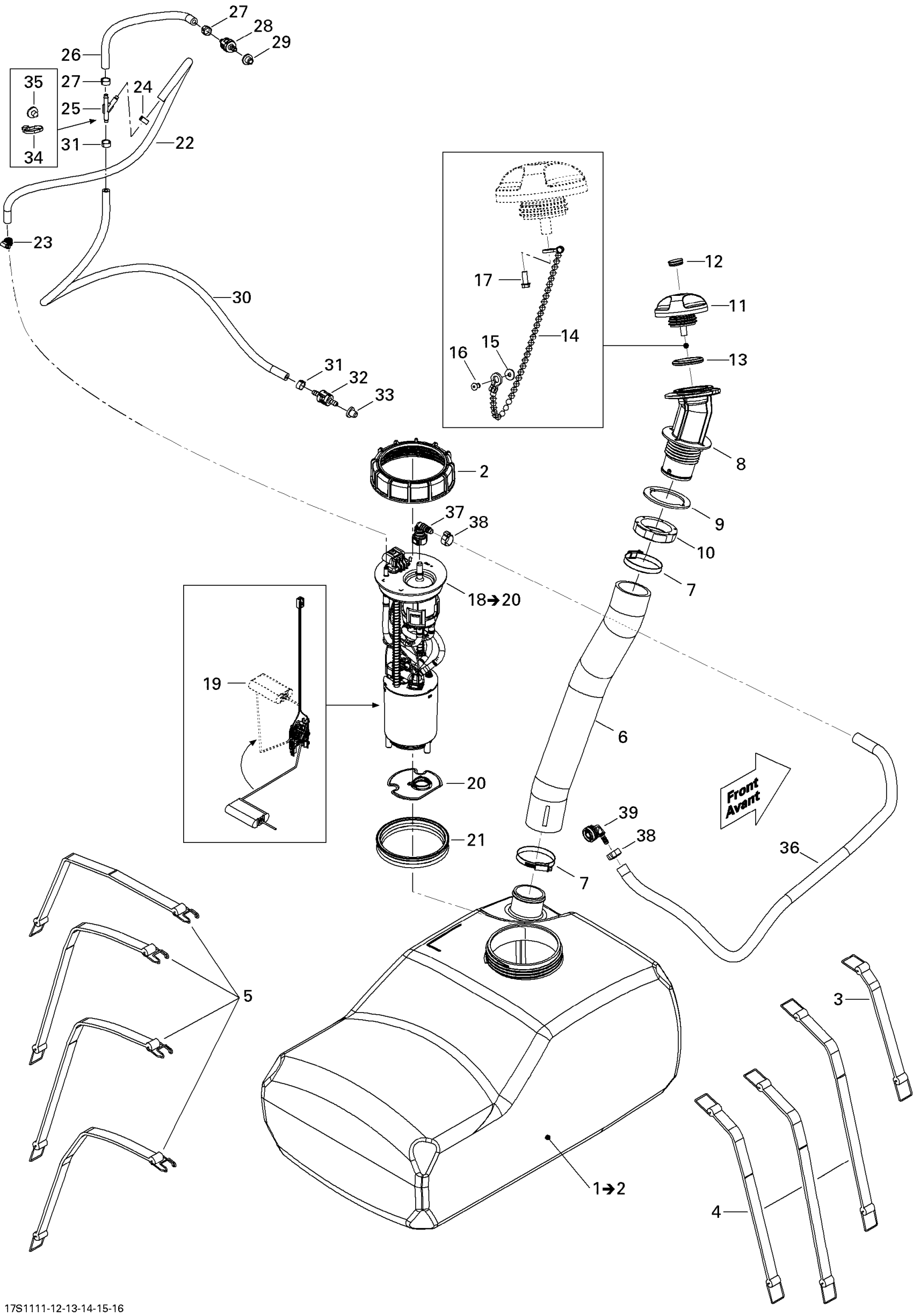

Sea-doo WAKE 155, 2012 Fuel System Diagram

#

Description
Price

1

Fuel Tank

275500962

$279.47

2

Special Nut M130

250100062

$17.52

3

Fuel Tank Strap

293850087

$16.39

4

Fuel Tank Strap

293850093

$16.87

5

Fuel Tank Strap

293850101

$13.62

6

Hose

275500918

$74.60

7

Norma Clamp

293650081

$9.87

8

FILLER NECK - Call your local BRP dealership

275500803

Unavailable

9

Gasket

293250029

$12.06

10

Filler Neck Nut, Fuel

211100012

$11.51

11

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$22.72

12

Black, Snap Cap

293000034

$7.48

13

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

14

Fuel Cap Chain

275500507

$13.62

15

Flat Washer M3, Stainless

234032600

$0.52

16

Pop Rivet 1/8"

390407900

$1.17

17

Screw K40 X 10

241140060

$1.25

18

Fuel Pump Ass'y | Includes 18 to 20

275500779

$371.77

19

Sensor Lever

275500780

$176.12

20

Fuel Filter

270600113

$27.27

21

Gasket

293250173

$15.57

22

Was 275500549 Hose 1/4"

219704357

$178.33

23

Norma Clamp

293650084

$3.88

24

Oetiker Gear Clamp

293650025

$2.46

25

Y-Fitting

293710059

$8.19

26

Was 275500549 Hose 1/4"

219704357

$178.33

27

Oetiker Gear Clamp

293650025

$2.46

28

Check Valve

275500770

$55.94

29

Grommet

293720029

$1.13

30

HOSE 1/4 - Call your local BRP dealership

204300184

Unavailable

31

Oetiker Gear Clamp

293650025

$2.46

32

Check Valve

275500774

Unavailable

33

Grommet

293720029

$1.13

34

Tie-Rap 180 mm

414115200

$0.09

35

Mount Dart

293730040

$0.86

36

HOSE I.D. 7.9MM 3000MM LONG - Call your local BRP dealership

219704395

Unavailable

37

Quick Attach 90°

275500700

$12.61

38

Crimp Clamp

293650053

$2.42

39

Elbow Fitting 90°

293710105

$10.58
