Description

Price

1

Hex. Screw M6 X 35

207063560

$2.22

2

Hex. Screw M6 X 40

207064060

$1.69

3

Hex. Screw M6 X 50

207165060

$0.92

4

Hex. Screw M6 X 35

207163560

$1.49

5

Hex. Nut 1/4"-28

211100056

$0.69

6

Elastic Stop Nut M6, Brass

232561200

$4.23

7

Flat Washer 4 mm, Stainless

234042600

$1.15

8

Stainless Flat Washer M6

234061600

$0.33

9

Flat Washer M6, Stainless

234062600

$0.77

10

Hex. Flange Screw K40 X 25

241142560

$2.64

11

Hex Cap Screw M6X1.0X45 S.Grip

245064560

$1.90

12

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

13

Flat Washer M6.6 X 22

250200022

$2.72

14

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

15

Black, Cap

277000203

$9.39

16

Ball Joint

277000775

$51.99

18

Ajustment Knob

277000782

$22.99

26

Half Ring

277001527

$10.37

27

Steering Cable Ass'y | Includes 540 TO 540d

277001578

$211.99

28

Wiper Rod

277001582

$11.11

29

End Piece

277001583

$14.49

30

Steering Column

277001963

$381.49

31

Steering Cover | IBR

277001969

$68.99

33

Throttle Handle

277001944

$38.99

34

TOP FOAM - Call your local BRP dealership

277001621

Unavailable

35

Handlebar Grip

277002286

$19.99

37

Not Available As Spare Parts

XXX

Unavailable

38

Thrust Support Ass'y

277001655

$28.99

39

Reverse Handle

277001945

$43.99

40

Steering Pad, Viper Red

277001700

$45.99

41

Wear Ring

277001653

$12.17

42

Spacer

277001654

$15.99

43

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

44

Wear Ring

277002318

$15.99

45

Housing Cover RH

277001625

$19.99

48

Knob Switch, Grey

277001803

$6.98

49

Housing Cover LH

277001860

$22.49

50

Insert Grip Handle

277001863

$8.83

51

Steering Arm Support Ass'y | Includes 460 TO 460c

277001872

$42.99

52

Support Ass'y | Includes 710 TO 710e

277001971

$114.99

53

Gasket, Neoprene 2000Mm Long

219704476

$15.36

54

Cable Grommet

293720090

$8.49

55

Mount Dart

293730040

$1.04

56

Tie-Rap 180 mm

414115200

$0.11

57

Tie Wrap 368 mm

293750008

$1.04

58

Rubber Washer

293830063

$1.90

59

Bushing

293900091

$4.52

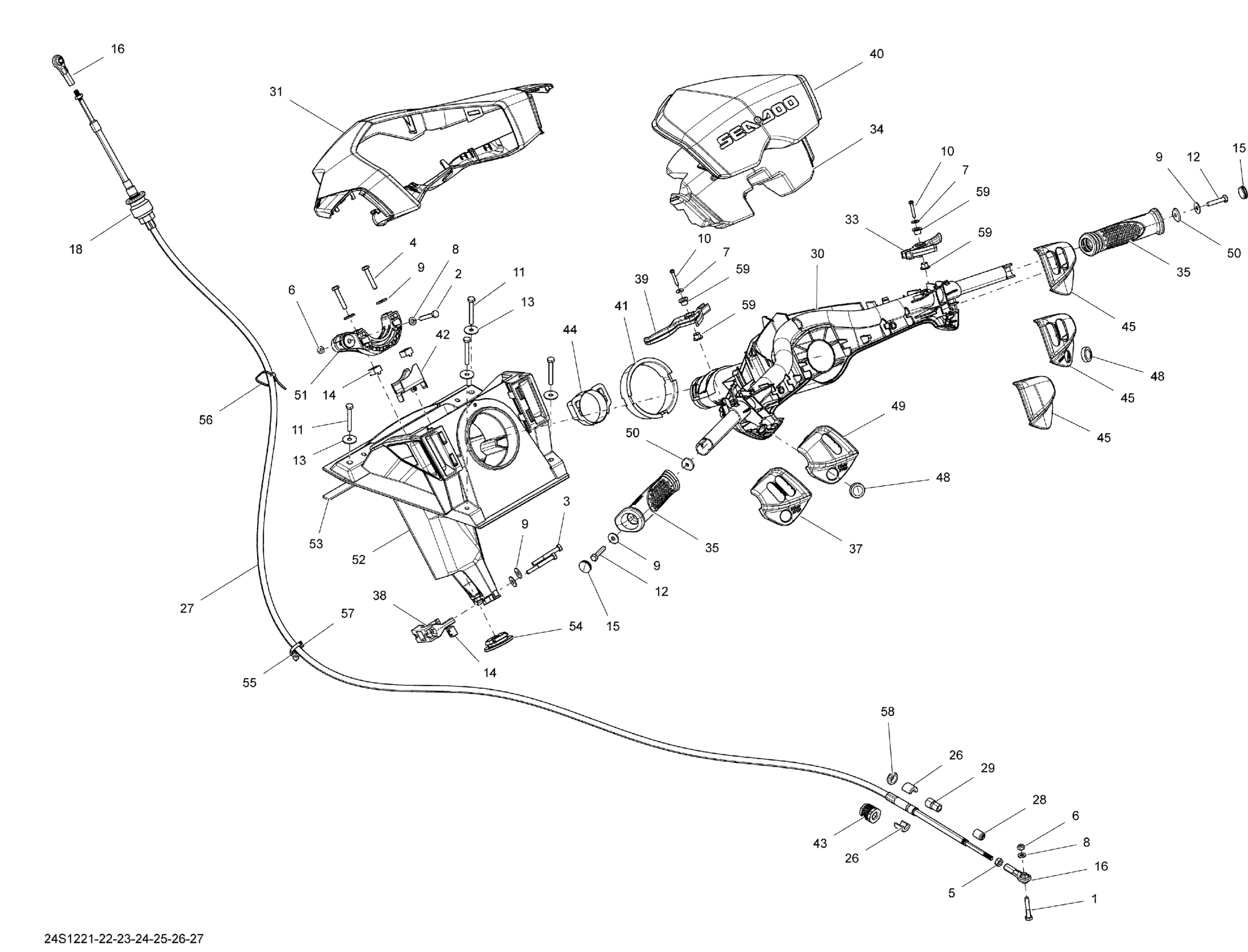

Sea-doo WAKE 155, 2012 Steering Diagram

Hex. Screw M6 X 35

Hex. Screw M6 X 40

Hex. Screw M6 X 50

Hex. Screw M6 X 35

Hex. Nut 1/4"-28

Elastic Stop Nut M6, Brass

Flat Washer 4 mm, Stainless

Stainless Flat Washer M6

Flat Washer M6, Stainless

Hex. Flange Screw K40 X 25

Hex Cap Screw M6X1.0X45 S.Grip

Hex. Screw M6 X 30, Scotch Grip

Flat Washer M6.6 X 22

Housing Nut M6 | Included 550f to 550f2

Black, Cap

Ball Joint

Ajustment Knob

Half Ring

Steering Cable Ass'y | Includes 540 TO 540d

Wiper Rod

End Piece

Steering Column

Steering Cover | IBR

Throttle Handle

TOP FOAM - Call your local BRP dealership

Handlebar Grip

Not Available As Spare Parts

Thrust Support Ass'y

Reverse Handle

Steering Pad, Viper Red

Wear Ring

Spacer

Steering Cable Lock This part replaces 277000784.

Wear Ring

Housing Cover RH

Knob Switch, Grey

Housing Cover LH

Insert Grip Handle

Steering Arm Support Ass'y | Includes 460 TO 460c

Support Ass'y | Includes 710 TO 710e

Gasket, Neoprene 2000Mm Long

Cable Grommet

Mount Dart

Tie-Rap 180 mm

Tie Wrap 368 mm

Rubber Washer

Bushing
