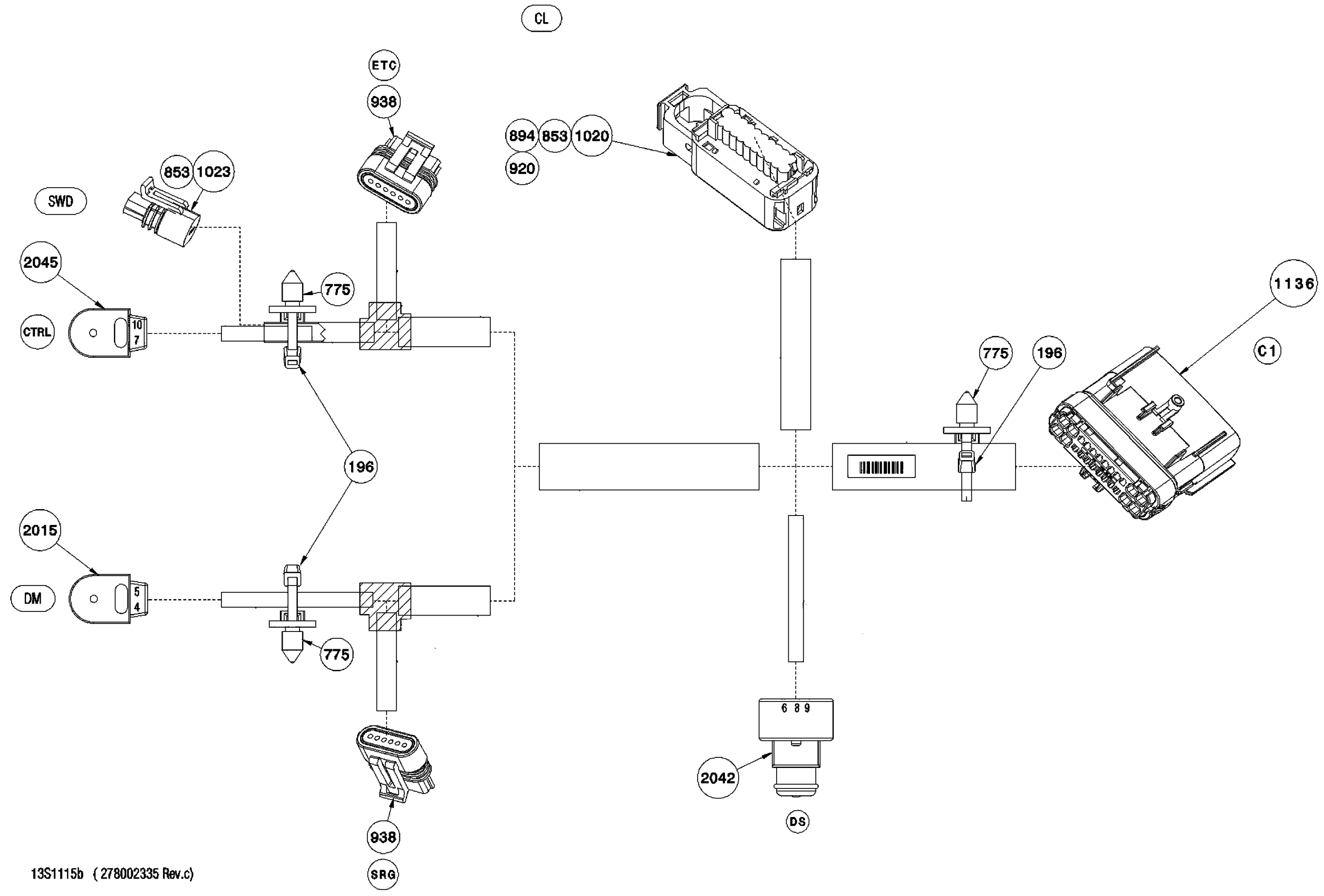

Sea-doo WAKE 155, 2011 10- Electrical Harness , Steering Diagram

#

Description
Price

1

Steering Harness

278002335

$469.99

196

Tie Wrap 142 mm

293750002

$1.25

775

Mount Dart

293730040

$1.04

853

Wire Seal

710001163

$7.69

920

Seal Wire

710001332

$3.28

938

Female Terminal Housing 6 Circuits

278002299

$9.10

1020

Male Terminal Housing, 20 Circuits

278002385

$17.04

1023

Female Terminal Housing, 3 Circuits

278003442

$8.79

1136

HOUSING - Call your local BRP dealership

278002452

Unavailable

2015

Start/Stop Switch Kit

295501137

$59.49

2042

Safety Switch This part replaces 278002325.

278002773

$114.99

2045

Start/Stop Switch Kit

295501137

$59.49

C1

HOUSING - Call your local BRP dealership

278002451

Unavailable

C1

Male Terminal

278002454

$5.79

C1

Male Terminal

278002456

$5.79

CL

Male Terminal Housing, 20 Circuits

278002385

$17.04

CL

Cap

710001225

$9.19

CL

Wire Seal

710001163

$7.69

CL

Seal

710001230

$2.24

CL

Terminal

710001228

$3.28

CL

Female Terminal

710001164

$8.89
