09- Body, Rear View

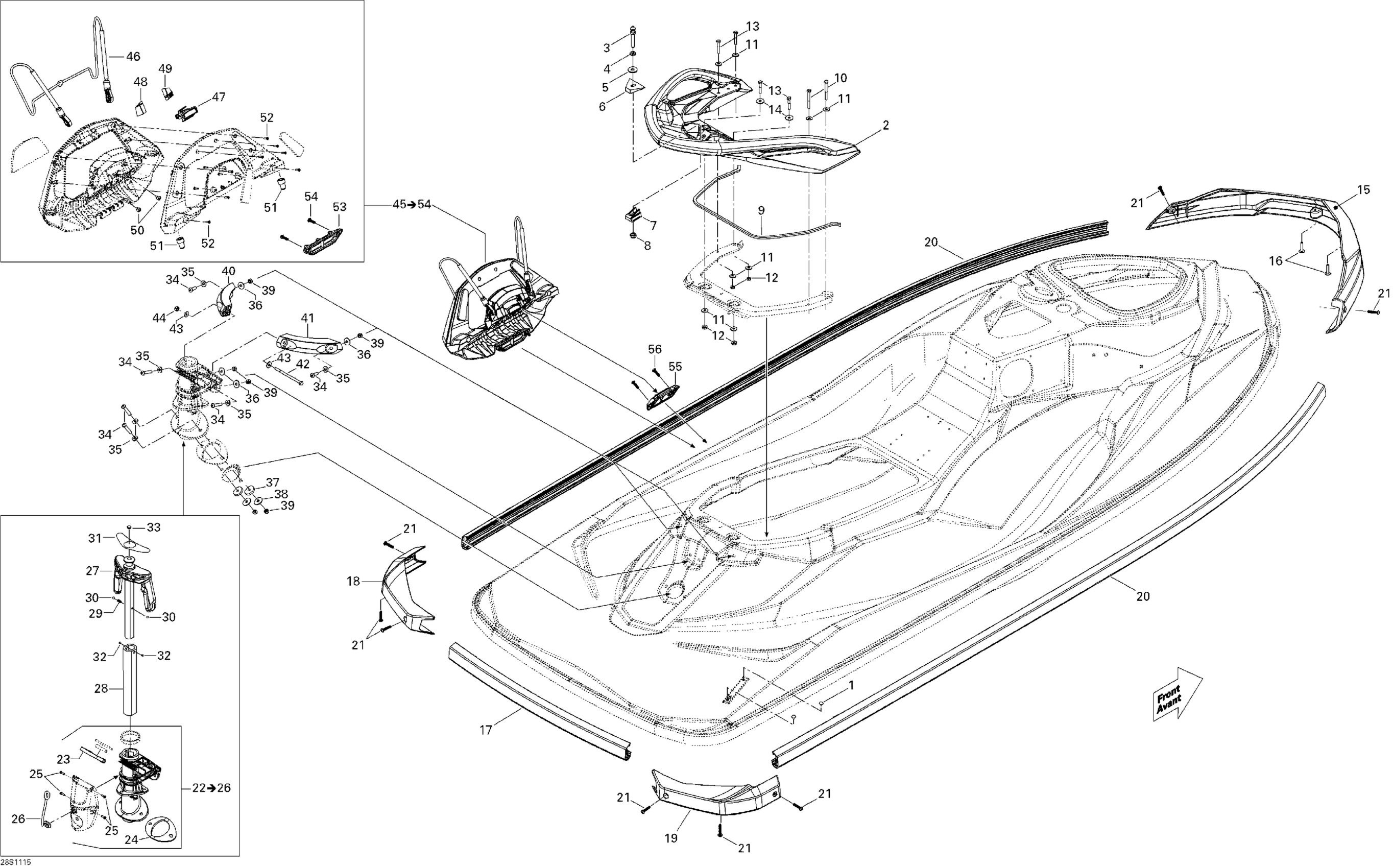

Sea-doo WAKE 155, 2011 09- Body, Rear View Diagram
#
1
Black, Snap Cap
293000014
$1.09
2
Black, Rear Handle Ass'y
291004625
$142.99
3
Stud Seat
291003877
$48.99
4
Hex. Jam Nut M10
232100600
$2.22
5
Flat Washer 10 mm, Stainless
234002600
$2.22
6
Seat Stud Spacer
269002125
$8.19
7
SEAT STUD SUPPORT - Call your local BRP dealership
269002126
$8.19
8
Elastic Stop Nut M10, Brass
232501200
$2.64
9
Gasket 3000Mm Long
219704378
$26.49
10
Hex. Screw M6 x 55
207065560
$1.01
11
Flat Washer M6, Stainless
234062600
$0.77
12
Elastic Stop Nut M6, Brass
232561200
$4.23
13
Hex. Screw M6 X 40
207164060
$3.38
14
Flat Washer M6.6 X 22
250200022
$2.72
15
Front Bumper This part replaces 291005401.
291004277
$76.49
16
Hexagonal Cap Screw M6 X35
250000399
$4.44
17
Lateral Bumper
291003872
$148.49
18
Black, Corner Bumper This part replaces 291004152.
291004278
$33.99
19
Black, Corner Bumper This part replaces 291004153.
291004279
$33.99
20
Lateral Bumper
291003872
$148.49
21
Screw Torx M6.81 X 30
250000626
$3.91
22
Support Sub-Ass'y | Includes 1900 TO 1900d
291002553
$294.99
23
Replacing Kit for Pylon Strap
295100740
$26.49
24
Seal
293250151
$10.99
25
Hex. Flange Screw K40 X 13
241141360
$0.67
26
Strap
269501299
$19.49
27
Molded Handle
291004766
$195.99
28
ALUMINUM POST - Call your local BRP dealership
291002642
Unavailable
29
Ball Spring
269501651
$11.99
30
Ball 1/4"
293350062
$2.69
31
Warning Label
219903137
Unavailable
32
Type "U" Metallic Drive Screw
293150167
$2.29
33
Bumper Plug, Black
291001519
$5.49
34
Socket Head Screw M8 X 40
205484060
$4.12
35
Flat Washer M8.5 x 18
293050001
$3.07
36
Flat Washer 8 mm, Stainless
234082600
$2.43
37
Rubber Washer
293830037
$2.68
38
Flat Washer 8 mm, Stainless
250200175
$3.06
39
Hex. Elastic Nut M8 Brass
232581200
$2.22
40
Lateral Arm LH
291002711
$33.99
41
Lateral Arm RH
291002712
$33.99
42
Hex. Screw M6 X 100
230060060
$7.41
43
Flat Washer M6, Stainless
234062600
$0.77
44
Elastic Stop Nut M6, Brass
232561200
$4.23
45
Wakeboard Rack
295100453
$239.49
46
Elastic Rope Ass'y
291002979
$37.99
47
Latch
291002980
$28.99
48
Warning WAKE
219903228
Unavailable
49
WAKE-PRO Decal
219903240
$30.99
50
Rubber Bumper
293830005
$8.09
51
Rubber Buffer
293830119
$18.49
52
Flange Torx Screw K40 X 16
250000287
$2.11
53
Lower Anchorage
291002864
$16.49
54
Torx Screw Plastite M6
250000466
$6.98
55
Upper Anchorage
291003104
$16.49
56
Torx Screw Plastite M6
250000466
$6.98
