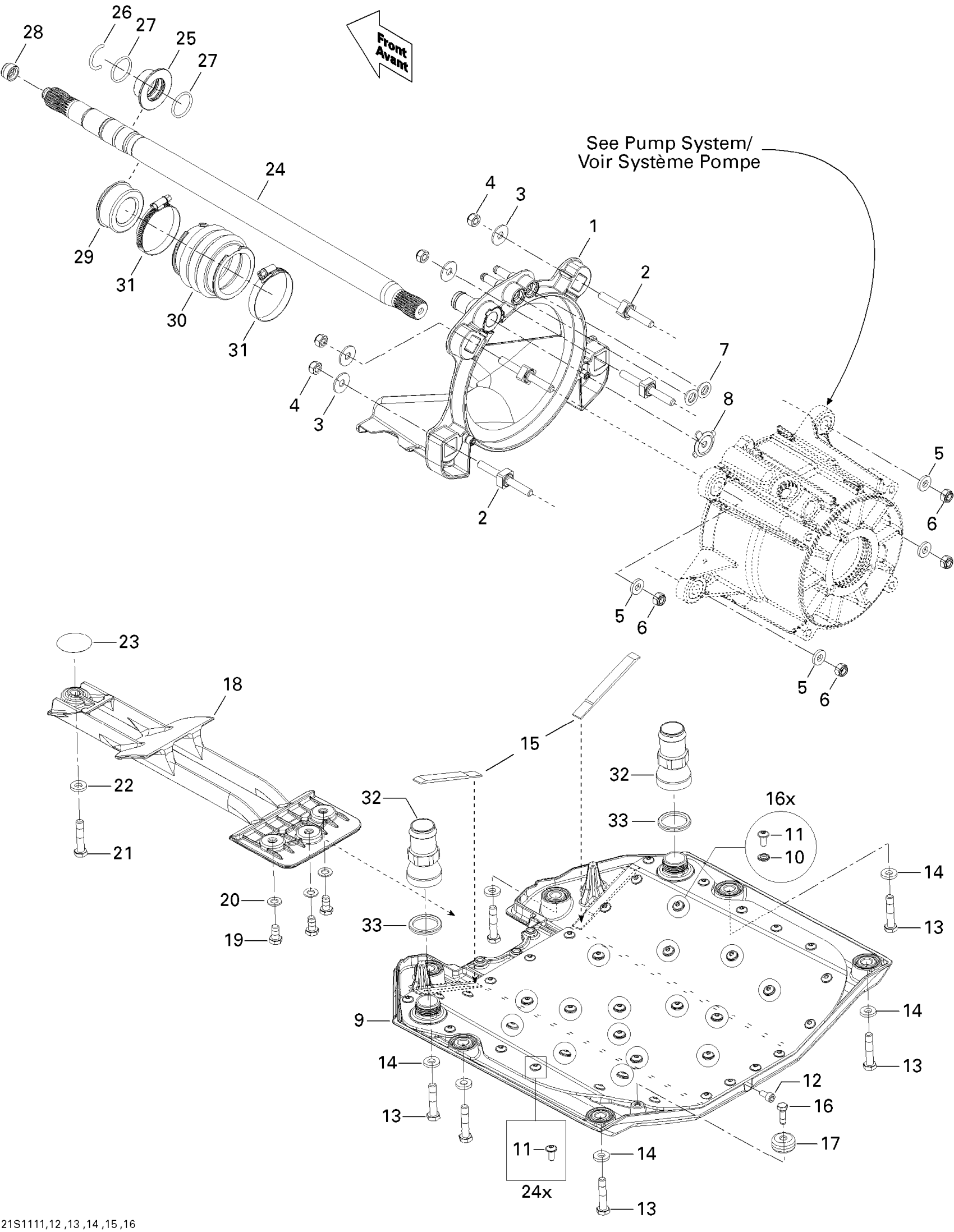

Sea-doo WAKE 155, 2011 Propulsion Diagram

#

Description
Price

1

PUMP SUPPORT - Call your local BRP dealership | Hull LFI This part replaces 271001841.

271001682

Unavailable

2

Square Stud

250300046

$11.91

3

Flat Washer 8 mm, Stainless

234082600

$1.98

4

Hex. Elastic Nut M8 Brass

232581200

$1.29

5

Flat Washer M8.5 x 18

293050001

$1.29

6

Hex. Elastic Nut M8 Brass

232581200

$1.29

7

Watertight Seal

293250084

$5.81

8

Reducer This part replaces 291001887.

291004649

$12.57

9

Riding Plate Ass'y | Includes 120 TO 120f

271001860

$181.32

10

Sealing Washer

250200114

$3.61

11

Torx Screw M6 X 14

250000384

$6.15

12

Socket Drain Plug M6 X 12

250500005

$11.74

13

HEX. SCREW M8 X 40, SCOTCH GRIP - Call your local BRP dealership

250000530

Unavailable

14

Flat Washer M8.5 x 18

293050001

$1.29

15

Gasket, Neoprene 2000Mm Long

219704476

$12.64

16

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

17

Anode Zinc

271001813

$13.62

18

Pump Grate

271001969

$42.87

19

Hex. Screw M8 X 16, Scotch Grip

207381660

$0.83

20

Stainless, Flat Washer 8 mm

234081600

$0.46

21

HEX. SCREW M8 X 40, SCOTCH GRIP - Call your local BRP dealership

250000530

Unavailable

22

Flat Washer M8.5 x 18

293050001

$1.29

23

PROTECTOR DISK - Call your local BRP dealership

293830047

Unavailable

24

Drive Shaft This part replaces 271001534.

271001724

$265.82

25

Carbon Ring Kit This part replaces 272000177.

295501200

$67.57

26

C-Clip

271001575

$4.54

27

O-Ring

293300044

$0.86

28

Drive Shaft Plug

272000173

$7.02

29

Carbon Ring Kit This part replaces 272000177.

295501200

$67.57

30

Bellows

272000183

$22.72

31

Norma Clamp

293650077

$6.11

32

Straight Plastic Fitting

293710111

$6.88

33

O-Ring

293300121

$6.18
