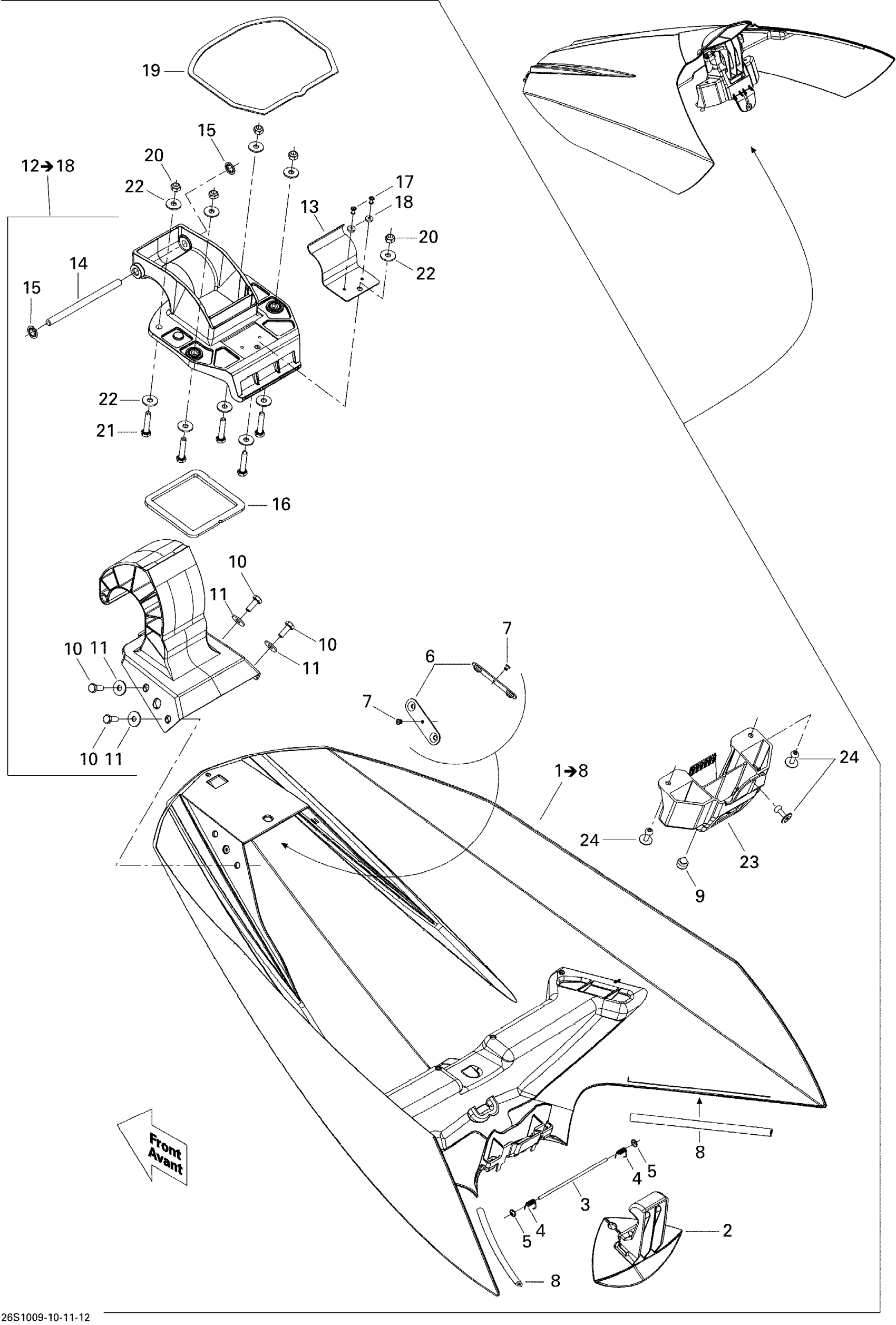

Sea-doo Wake 155, 2010 09- Front Cover Diagram

#

Description
Price

1

STORAGE COVER ASS'Y - Call your local BRP dealership | Includes 1 to 8

269501720

Unavailable

2

LATCH LEVER - Call your local BRP dealership

269700098

Unavailable

3

PIN - Call your local BRP dealership

269501479

Unavailable

4

Latch Spring

291000922

$7.39

5

PUSH NUT - Call your local BRP dealership

250100061

Unavailable

6

PLATE - Call your local BRP dealership

277001479

Unavailable

7

Pop RIvet 1/8 X ,375

293150285

$0.33

8

GASKET - Call your local BRP dealership

293250176

Unavailable

9

Rubber Bumper

293830005

$8.09

10

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.15

11

Flat Washer M6, Stainless

234062600

$0.77

12

HINGE ASS'Y - Call your local BRP dealership | Includes 12 to 18

269501446

Unavailable

13

HINGE SPRING - Call your local BRP dealership

269700099

Unavailable

14

AXLE - Call your local BRP dealership

269700024

Unavailable

15

Push Nut

250100046

$2.11

16

UPPER GASKET - Call your local BRP dealership

293250155

Unavailable

17

Pop Rivet 1/8

293150143

$0.48

18

Flat Washer M3, Stainless

234032600

$0.55

19

GASKET - Call your local BRP dealership

293250166

Unavailable

20

Elastic Stop Nut M6, Brass

232561200

$4.23

21

Hex. Screw M6 X 30

207063060

$1.89

22

Flat Washer M6, Stainless

234062600

$0.77

23

LATCH BASE - Call your local BRP dealership

269501480

Unavailable

24

Pop Rivet 3/16"

293150123

$4.29
