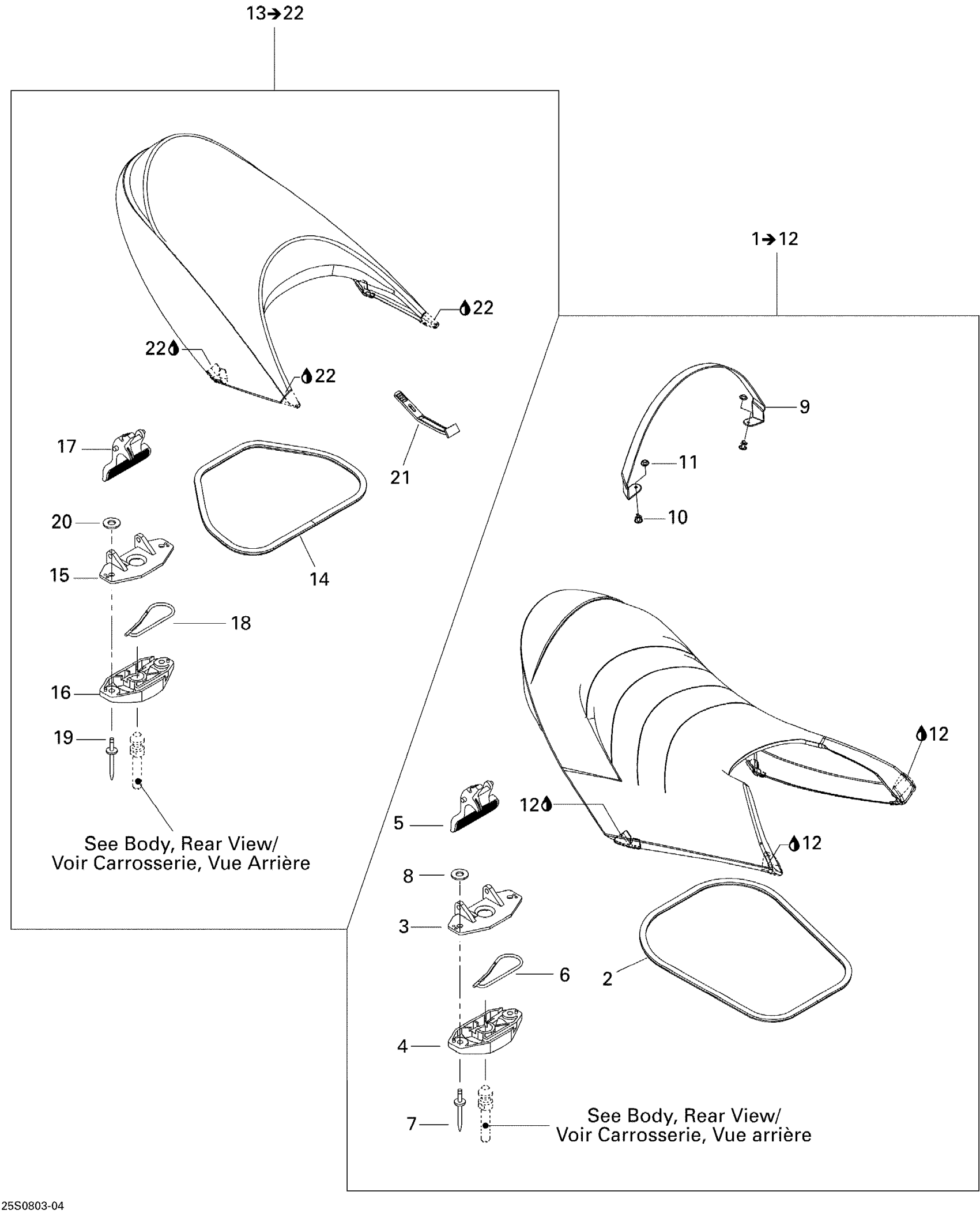

Sea-doo WAKE 155, 2008 Seat Diagram

#

Description
Price

1

FRONT SEAT ASS'Y - Call your local BRP dealership | Includes 1 to 9

269001432

Unavailable

2

Was 293200062 Seal

219704366

$76.49

3

Latch Ass'y

269700109

$24.99

4

Latch Ass'y

269700109

$24.99

5

Latch Ass'y

269700109

$24.99

6

Latch Spring

269700017

$9.19

7

Rivet 1/4"

293150151

$8.04

8

Stainless Flat Washer M6

234061600

$0.33

9

SEAT STRAP - Call your local BRP dealership

269001391

Unavailable

10

Rivet | Model-T3

293150067

$2.89

11

Grommet

293720067

$12.99

12

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

13

REAR SEAT ASS'Y - Call your local BRP dealership | Includes 10 to 16

269001434

Unavailable

14

Was 293200062 Seal

219704366

$76.49

15

Latch Ass'y

269700109

$24.99

16

Latch Ass'y

269700109

$24.99

17

Latch Ass'y

269700109

$24.99

18

Latch Spring

269700017

$9.19

19

Rivet 1/4"

293150151

$8.04

20

Stainless Flat Washer M6

234061600

$0.33

21

Strap

269502417

$17.69

22

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99
