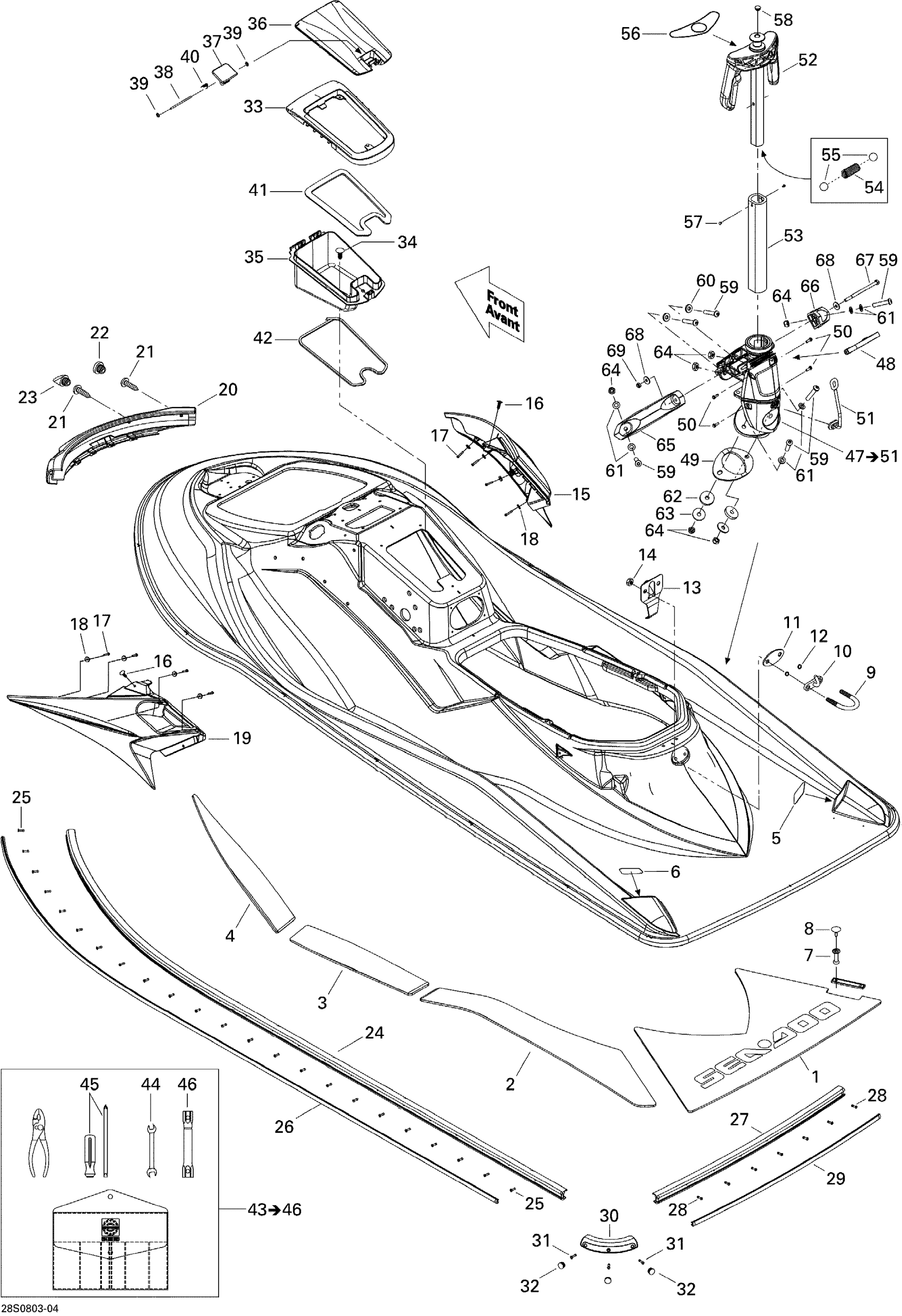

Sea-doo WAKE 155, 2008 Body, Rear View Diagram

#

Description
Price

1

ANTI SLIP MAT_DECK - Call your local BRP dealership

291002316

Unavailable

2

RH CENTER REAR CARPET - Call your local BRP dealership

291002382

Unavailable

2

LH CENTER REAR CARPET - Call your local BRP dealership

291002383

Unavailable

3

RH CENTER FRONT CARPET - Call your local BRP dealership

291002384

Unavailable

3

LH Center Front Carpet

291002385

Unavailable

4

RH FRONT CARPET - Call your local BRP dealership

291002386

Unavailable

4

LH FRONT CARPET - Call your local BRP dealership

291002387

Unavailable

5

RH ANTI-SKID - Call your local BRP dealership

291001758

Unavailable

6

LH Anti-Skid

291001759

Unavailable

7

Rivet 1/8"

293150016

$0.29

8

Black, Snap Cap

293000014

$0.85

9

U-CLAMP - Call your local BRP dealership

292000011

Unavailable

10

Hook | Package LTD

291002351

$67.13

11

Black, Finition Plate

291001386

$8.57

12

O-Ring

293300123

$0.97

13

Retainer Plate

291001747

Unavailable

14

Hex. Elastic Nut M8 Brass

232581200

$1.29

15

RH Front Moulding

269501527

Unavailable

16

Black, Dart

293730006

$0.81

17

Hex. Flange Screw K40 X 25

241142560

$2.17

18

WASHER 4.3 MM, NYLON - Call your local BRP dealership

250200055

Unavailable

19

LH Front Moulding

269501529

Unavailable

20

BUMPER NOSE, BLACK - Call your local BRP dealership

291001942

Unavailable

21

TORX SCREW 10-14 X 1-1/8 - Call your local BRP dealership

250000236

Unavailable

22

Bumper Plug, Black

291001519

$4.28

23

Bumper Plug, Black

291001040

Unavailable

24

Black, Side Bumper

204050270

$167.13

25

Pop Rivet 3/16"

293150005

$0.40

26

Side Bumper Trim

291002504

Unavailable

27

REAR BUMPER, BLACK - Call your local BRP dealership

291002242

Unavailable

28

Pop Rivet 3/16"

293150005

$0.40

29

REAR BUMPER TRIM, GREY - Call your local BRP dealership

291002325

Unavailable

30

Bumper Corner

291002244

$38.32

31

Pop Rivet 3/16"

293150013

$1.11

32

Bumper Plug, Black

291000339

$2.34

33

Cover Trim, Black

269501031

$42.22

34

Black, Dart

293730006

$0.81

35

GLOVE BOX - Call your local BRP dealership

269500968

Unavailable

36

GLOVE BOX DOOR - Call your local BRP dealership

269501648

Unavailable

37

Latch, Black

269500553

$16.87

38

Pin

211400008

$7.32

39

Push Nut | Not shown

211100002

$0.83

40

Latch Spring

291000922

$4.80

41

GASKET - Call your local BRP dealership

293250126

Unavailable

42

GASKET - Call your local BRP dealership

293250127

Unavailable

43

TOOL KIT - Call your local BRP dealership | Includes 43 to 46

294000744

Unavailable

44

FORK WRENCH - Call your local BRP dealership

529017300

Unavailable

45

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

46

Not Available As Spare Part - Friction Washer

Unavailable

47

Support Sub-Ass'y | Includes 1900 TO 1900d

291002553

$227.47

48

Replacing Kit for Pylon Strap

295100740

$21.42

49

Seal

293250151

$8.40

50

Hex. Flange Screw K40 X 13

241141360

$0.56

51

Strap

269501299

$14.92

52

Molded Handle

291004766

$159.22

53

ALUMINUM POST - Call your local BRP dealership

291002642

Unavailable

54

Ball Spring

269501651

$9.43

55

Ball 1/4"

293350062

$2.11

56

WARNING DECAL (WAKE BAR) - Call your local BRP dealership

219902218

Unavailable

57

Type "U" Metallic Drive Screw

293150167

$1.46

58

Bumper Plug, Black

291001519

$4.28

59

Socket Head Screw M8 X 40

205484060

$3.38

60

Flat Washer M8.5 x 18

293050001

$1.29

61

Stainless, Flat Washer 8 mm

234081600

$0.46

62

Rubber Washer

293830037

$2.68

63

Flat Washer 8 mm, Stainless

250200175

$1.29

64

Hex. Elastic Nut M8 Brass

232581200

$1.29

65

Lateral Arm LH

291002711

$25.97

66

Lateral Arm RH

291002712

$25.97

67

Hex. Screw M6 X 100

230060060

$6.08

68

Flat Washer M6, Stainless

234062600

$0.64

69

Elastic Stop Nut M6, Brass

232561200

$3.51
