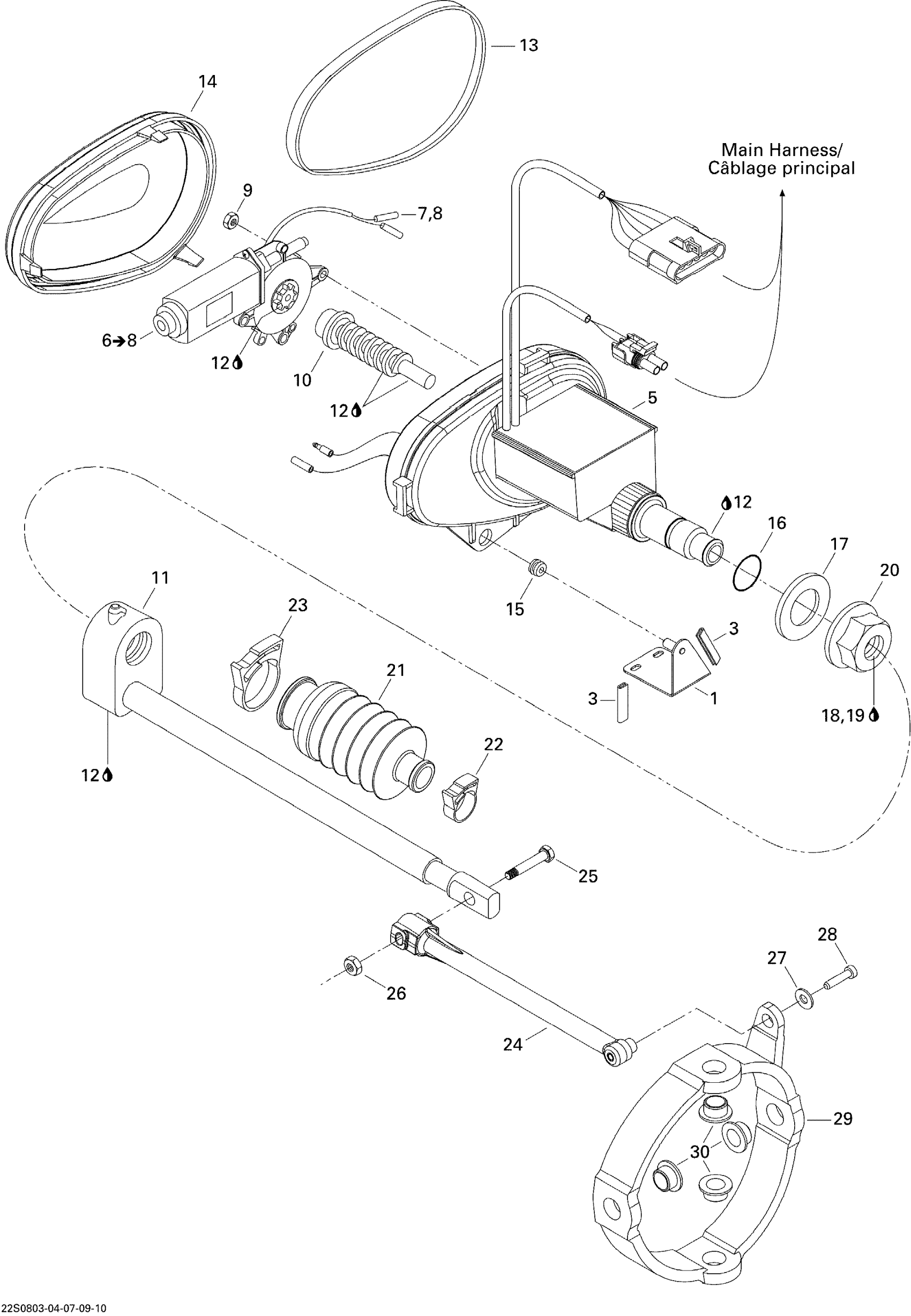

Sea-doo WAKE 155, 2008 Trim, Electrical Diagram

#

Description
Price

1

V.T.S. SUPPORT ASSY - Call your local BRP dealership

266000018

Unavailable

3

Not Available As Spare Parts

XXX

Unavailable

5

V.T.S Housing

278001605

$333.42

6

Windshield Motor

278002579

$184.57

7

Insulation Sheath

278000231

$4.13

8

Male Terminal

278000230

$3.48

9

Hex. Elastic Stop Nut M6

232561600

$0.92

10

Worm Screw

278000428

$11.53

11

Sliding Block Ass’y

278001698

$34.42

12

Synthetic Grease, 400 G

293550010

Unavailable

13

GASKET - Call your local BRP dealership

293200027

Unavailable

14

V.T.S. COVER - Call your local BRP dealership

278000595

Unavailable

15

GROMMET - Call your local BRP dealership

293720015

Unavailable

16

O-Ring

293300044

$0.86

17

SEAL WASHER - Call your local BRP dealership

293830027

Unavailable

18

Was 293800041 Loctite Primer 7649

219704458

$41.99

19

Loctite 243, 10 ml

293800060

$20.77

20

SPECIAL NUT M27 - Call your local BRP dealership

211100020

Unavailable

21

Protector Hose

271000459

$12.23

22

Clamp

293650082

$3.33

23

CLAMP - Call your local BRP dealership

293650083

Unavailable

24

V.T.S. ROD - Call your local BRP dealership

271001092

Unavailable

25

Hex. Screw M6 X 30

211000081

$3.21

26

Elastic Stop Nut M6, Brass

232561200

$3.51

27

Flat Washer 5 mm, Stainless

234052600

$0.64

28

PIVOT SCREW - Call your local BRP dealership

250000018

Unavailable

29

Trim Ring, Black

266000013

$108.18

30

Venturi Bushing

293900007

$3.71
