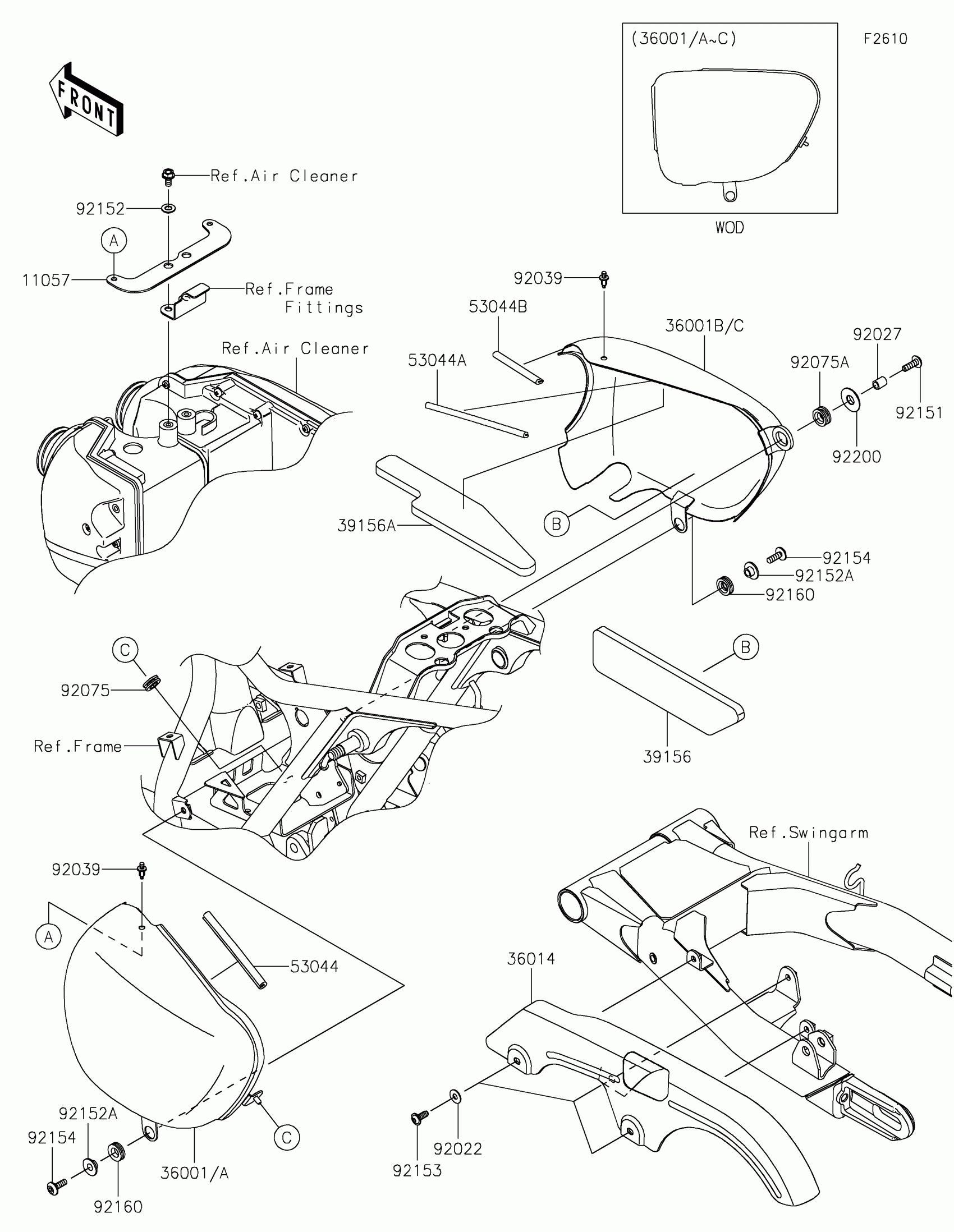

Kawasaki W800 Side Covers/Chain Cover Diagram

Description

Price

11057

BRACKET

11057-2999

$109.83

36001

COVER-SIDE,LH,M.D.BLACK

36001-0694-17K

$116.97

36001A

COVER-SIDE,LH,EBONY

36001-0694-H8

$107.22

36001B

COVER-SIDE,RH,M.D.BLACK

36001-0696-17K

$116.97

36001C

COVER-SIDE,RH,EBONY

36001-0696-H8

$107.22

36014

CASE-CHAIN

36014-0575

$143.38

39156

PAD,SIDE COVER,RH,LWR

39156-0676

$6.57

39156A

PAD,SIDE COVER,RH,UPP

39156-2533

$10.19

53044

TRIM

53044-0667

$4.33

53044A

TRIM,L=120

53044-1171

Unavailable

53044B

TRIM,L=80

53044-1218

Unavailable

92022

WASHER,6.5X16X1.0

92022-1093

$2.08

92027

COLLAR,6.8X10X12

92027-162

$6.57

92039

RIVET

92039-0023

$2.97

92075

DAMPER

92075-1629

$5.00

92075A

DAMPER

92075-1634

$4.69

92151

BOLT,SOCKET,6X20

92151-1750

$2.46

92152

COLLAR

92152-0275

$2.97

92152A

COLLAR,L=7.4

92152-2538

$4.27

92153

BOLT,SOCKET,6X16

92153-0817

$2.15

92154

BOLT,SOCKET,6X18

92154-2438

$2.23

92160

DAMPER

92160-1278

$4.39

92200

WASHER

92200-1153

$10.16
