Description

Price

11060

GASKET,GEAR CASE

11060-1890

$15.87

11060A

GASKET,CLUTCH COVER

11060-1891

$22.95

11060B

GASKET,KICK COVER

11060-1896

Unavailable

13271

PLATE,SOUND ARRESTER

13271-1215

$9.19

14032

COVER-CLUTCH

14032-1495

$223.11

14055

CASE-GEAR

14055-0648

$145.42

14093

COVER,BEVEL GEAR,OUTER

14093-1005

$98.68

14093A

COVER,KICK

14093-1011

$101.98

14093B

COVER,BEVEL GEAR,INNER

14093-1039

$13.90

39156

PAD,BEVEL COVER,UPP

39156-2455

$8.14

39156A

PAD,BEVEL COVER,LWR

39156-2456

$4.80

52005

GAUGE,OIL LEVEL

52005-1009

$18.40

92055

RING-O,7.5X1.5

92055-0981

$12.07

92055A

RING-O,12.3X1.9

92055-1594

$2.34

92062

NOZZLE,6X8,BLACK

92062-1079

$8.58

92151

BOLT,SOCKET,6X55

92151-1496

$2.67

92151A

BOLT,SOCKET,6X60

92151-1497

$2.67

92151B

BOLT,6X30

92151-1873

$4.67

92152

COLLAR

92152-2712

$9.37

92154

BOLT,FLANGED,6X10

92154-0492

$5.65

92154A

BOLT,SOCKET,6X70

92154-0493

$3.74

92154B

BOLT,FLANGED,6X22

92154-0794

$1.94

92154C

BOLT,SOCKET,5X20

92154-1798

$5.33

92161

DAMPER

92161-0953

$54.62

92200

WASHER,6.8X11.5X1.0

92200-1461

$2.67

120

BOLT-SOCKET,6X25

120CC0625

$1.94

120A

BOLT-SOCKET,6X50

120CC0650

$2.55

551

PIN-DOWEL,8X20

551A0820

$0.98

670

O RING

670D1505

$4.31

670A

O RING,7MM

670D1507

$1.70

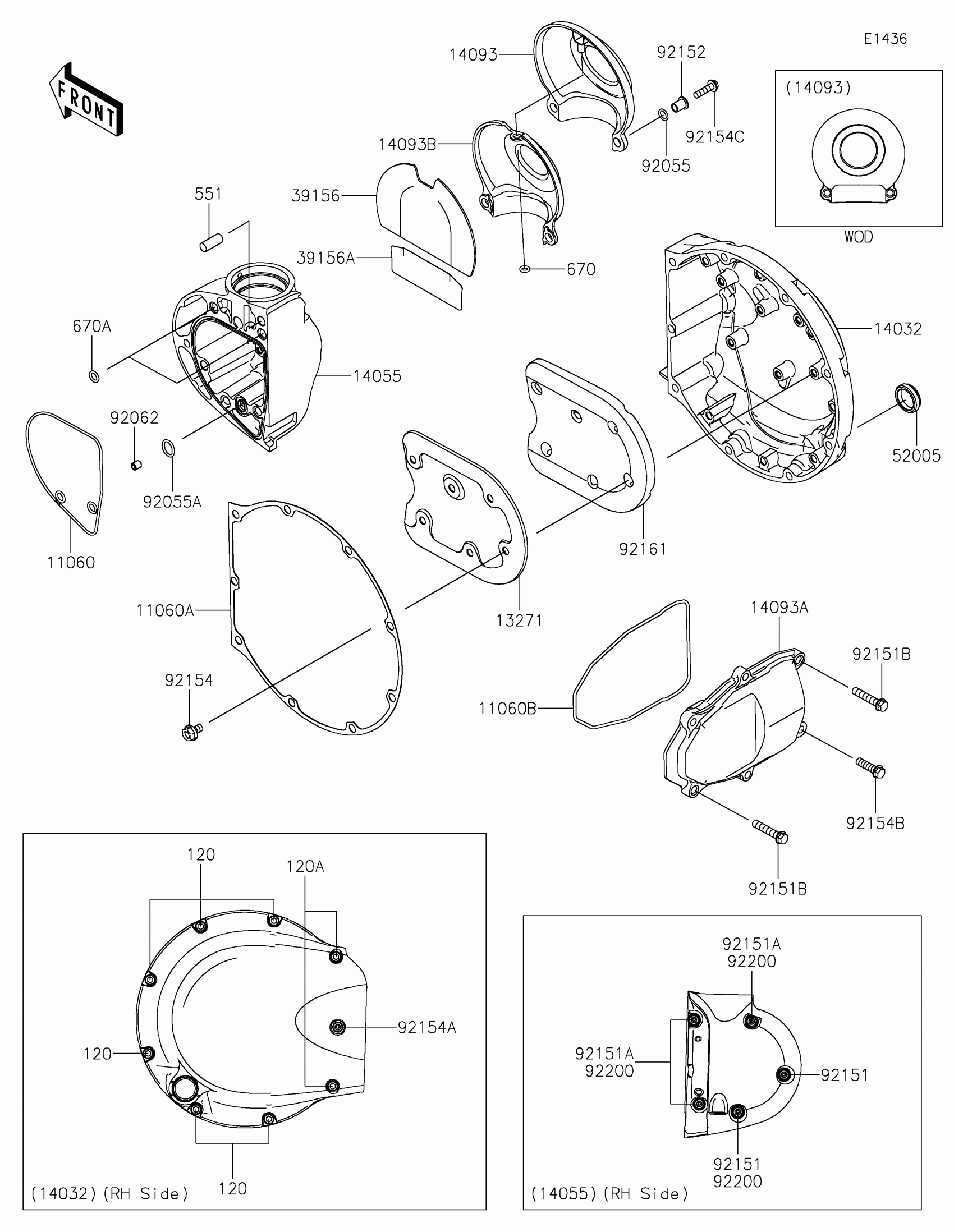

Kawasaki W800 Right Engine Cover(s) Diagram

GASKET,GEAR CASE

GASKET,CLUTCH COVER

GASKET,KICK COVER

PLATE,SOUND ARRESTER

COVER-CLUTCH

CASE-GEAR

COVER,BEVEL GEAR,OUTER

COVER,KICK

COVER,BEVEL GEAR,INNER

PAD,BEVEL COVER,UPP

PAD,BEVEL COVER,LWR

GAUGE,OIL LEVEL

RING-O,7.5X1.5

RING-O,12.3X1.9

NOZZLE,6X8,BLACK

BOLT,SOCKET,6X55

BOLT,SOCKET,6X60

BOLT,6X30

COLLAR

BOLT,FLANGED,6X10

BOLT,SOCKET,6X70

BOLT,FLANGED,6X22

BOLT,SOCKET,5X20

DAMPER

WASHER,6.8X11.5X1.0

BOLT-SOCKET,6X25

BOLT-SOCKET,6X50

PIN-DOWEL,8X20

O RING

O RING,7MM
