Description

Price

41034

DRUM-ASSY,RR,P.SILVER

41034-0603-458

$593.76

41068

AXLE,RR,16X267

41068-0088

$84.03

42033

COUPLING-ASSY,RR HUB

42033-0592

$216.24

42036

SLEEVE,REAR AXLE,L=16

42036-1206

$19.64

42041

SPROCKET-HUB,37T

42041-0170

$81.25

42046

WASHER,17.3X32X3.2

42046-009

$7.84

92004

STUD,8X16

92004-1150

$5.46

92015

NUT,8MM

92015-1432

$6.57

92033

RING-SNAP,42MM

92033-1041

$6.16

92033A

RING-SNAP,47MM

92033-1042

$4.22

92057

CHAIN,DRIVE,EK520MVXLX104L

92057-0213

$232.11

92058

JOINT-CHAIN,DRIVE

92058-0021

$13.66

92075

DAMPER,SHOCK,RR HUB

92075-1068

$47.86

92143

COLLAR,REAR BRAKE DRUM,L=113

92143-1060

$35.74

92152

COLLAR,LH

92152-2523

$20.75

92152A

COLLAR,RH

92152-2602

$30.06

92210

NUT,CASTLE,16MM

92210-1171

$11.65

550

PIN-COTTER,4.0X40

550AA4040

$1.36

601

BEARING-BALL,#6003G

601B6003G

$17.91

601A

BEARING-BALL,#6004UG

601B6004UG

$37.11

601B

BEARING-BALL,#6204UG

601B6204UG

$29.76

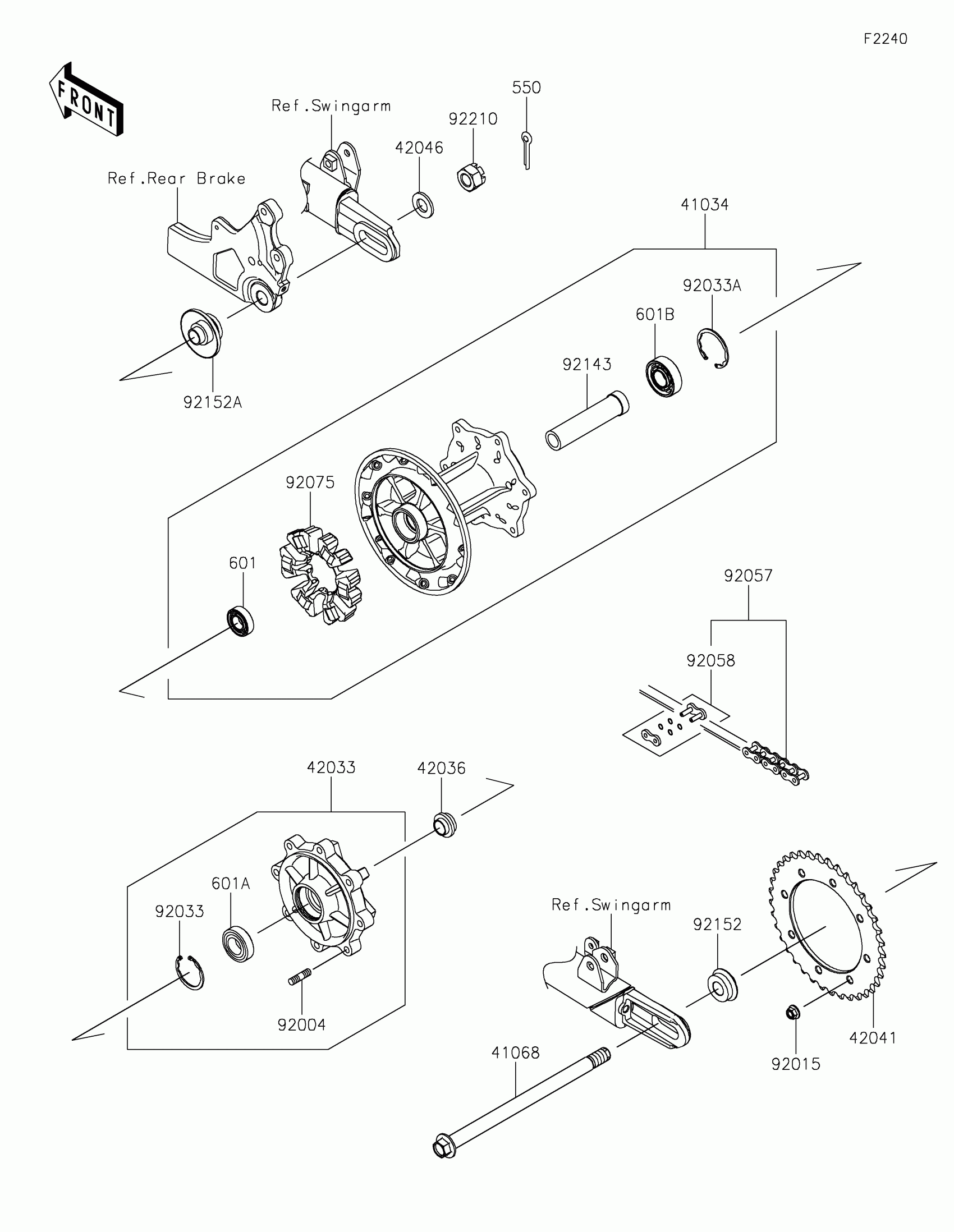

Kawasaki W800 Rear Wheel/Chain Diagram
