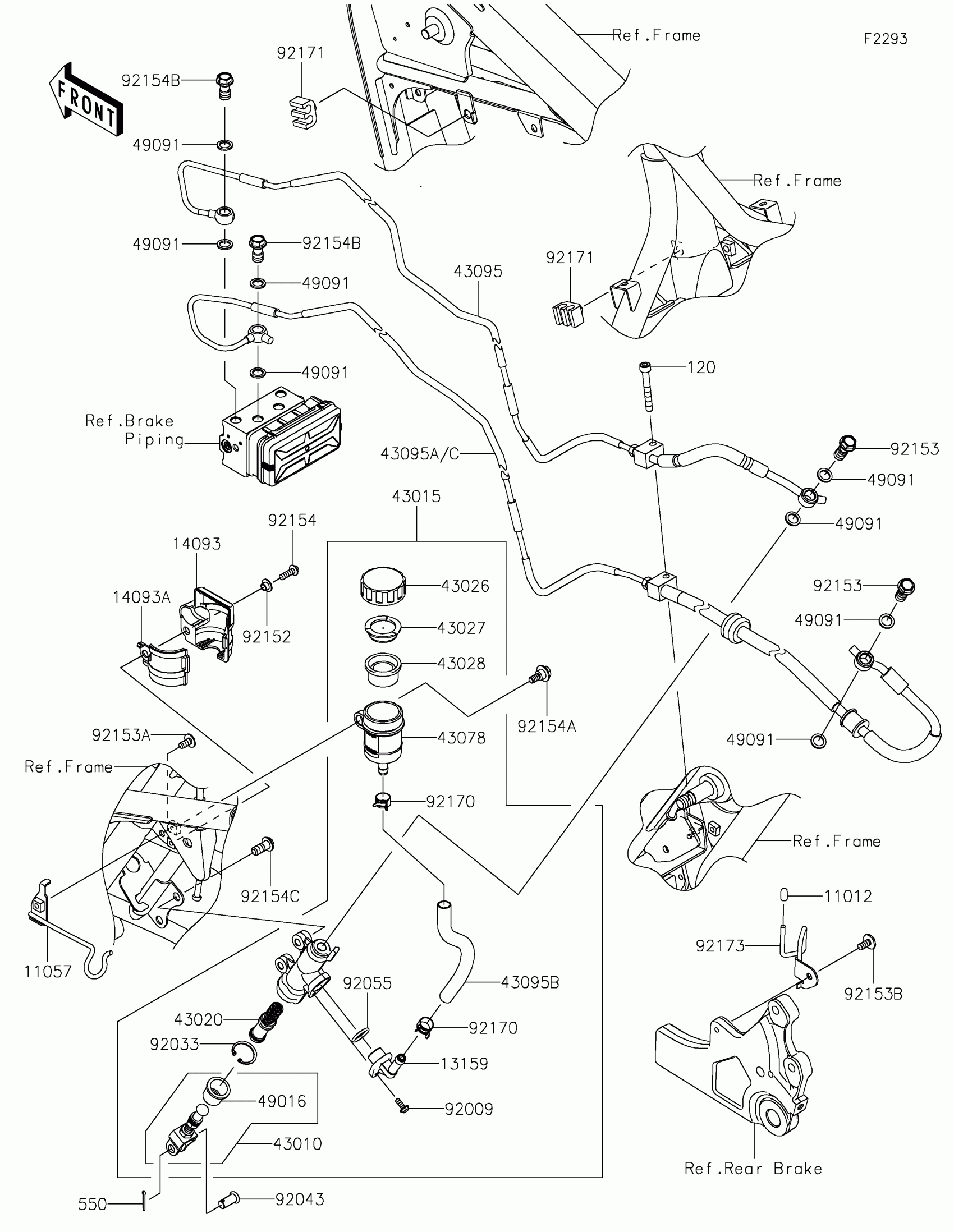

Kawasaki W800 Rear Master Cylinder Diagram
#
Description
Price
11012
CAP
11012-1438
$4.96
11057
BRACKET,RR M/CYLINDER HOSE
11057-2781
$1.08
13159
CONNECTOR
13159-0030
$7.72
14093
COVER,RR RESERVOIR,OUTER
14093-0653
$7.36
14093A
COVER,RR RESERVOIR,INNER
14093-0654
$7.36
43010
ROD-ASSY-BRAKE
43010-0027
$56.43
43015
CYLINDER-ASSY-MASTER,RR
43015-0719
$376.97
43020
PISTON-COMP-BRAKE,RR
43020-1067
$66.40
43026
CAP-BRAKE
43026-0009
$37.51
43027
PLATE-DIAPHRAGM
43027-1053
$5.67
43028
DIAPHRAGM
43028-1065
$19.09
43078
RESERVOIR
43078-0060
$32.45
43095
HOSE-BRAKE,HU-RR M/CYLINDER
43095-1617
$193.43
43095B
HOSE-BRAKE
43095-1692
$12.52
43095C
HOSE-BRAKE,HU-RR CALIPER
43095-1985
$225.01
49016
COVER-SEAL,BRAKE PISTON
49016-1103
$13.37
49091
WASHER-SEAL,10.1X14.5X1.5
49091-0001
$2.15
92009
SCREW
92009-1570
$3.09
92033
RING-SNAP,20.9X24.6X1.2
92033-0079
$7.78
92043
PIN,8X17
92043-0104
$3.90
92055
RING-O,14.8X2.4
92055-0741
$3.71
92152
COLLAR,5.3X7.3X5.3
92152-2190
$3.42
92153
BOLT,OIL,L=23
92153-0627
$5.48
92153A
BOLT,SOCKET,6X12
92153-1617
$1.34
92153B
BOLT,SOCKET,6X12
92153-1948
$1.78
92154
BOLT,SOCKET,5X16
92154-0209
$2.75
92154A
BOLT,FLANGED,6X16
92154-0385
$3.99
92154B
BOLT,BANJO,10X19
92154-1554
$23.53
92154C
BOLT,SOCKET,8X18
92154-3919
$3.16
92170
CLAMP,HOSE
92170-1091
$5.00
92171
CLAMP
92171-0818
$4.41
92173
CLAMP,BRAKE HOSE
92173-1933
$21.77
120
BOLT-SOCKET,6X45
120CB0645
$4.45
550
PIN-COTTER,2.0X15
550AA2015
$1.12
