2020 Kawasaki W800 Oil Pump/oil Filter Diagram

← All diagrams

Find the part on the Oil Pump/oil Filter diagram for your 2020 Kawasaki W800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

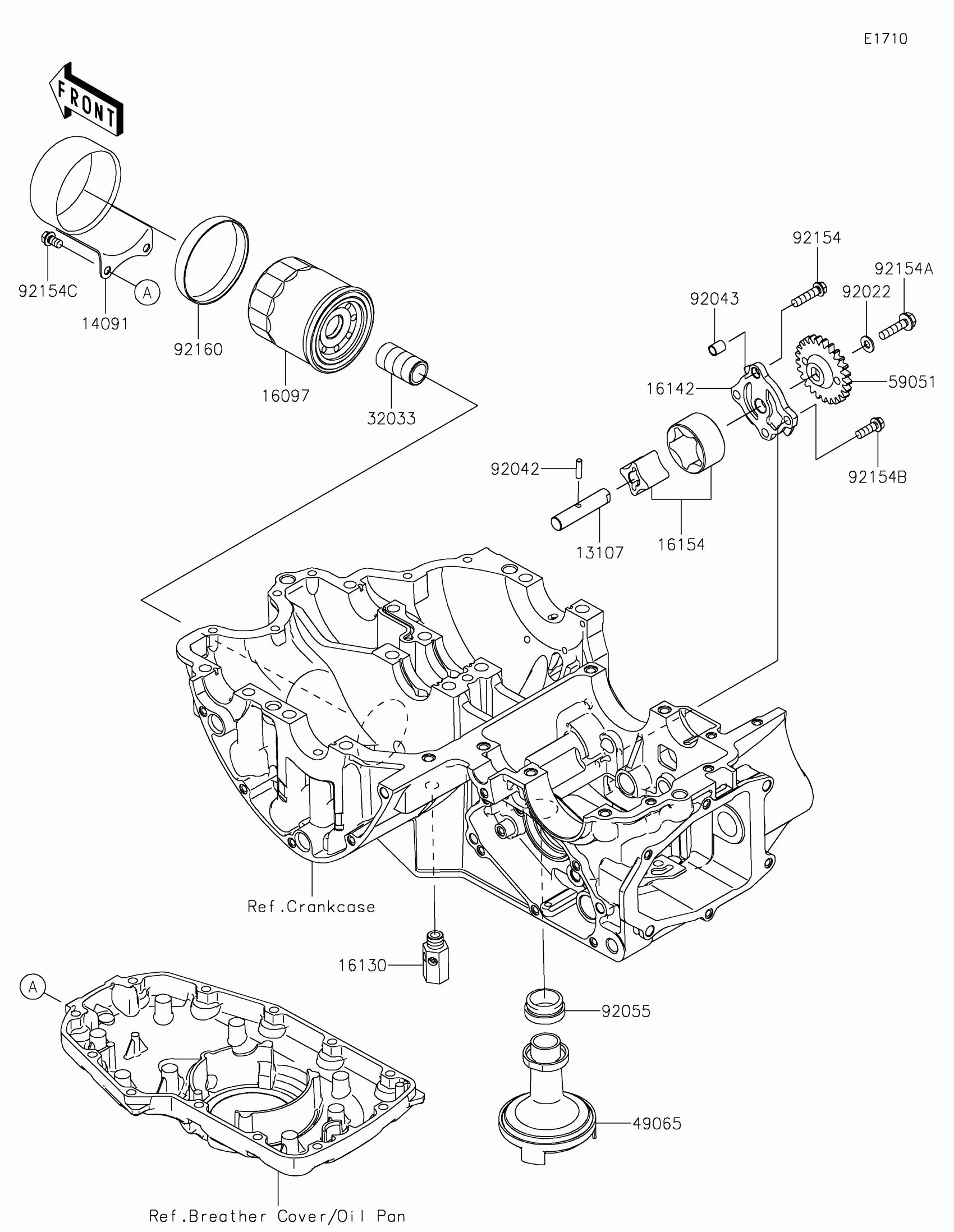

2020 Kawasaki W800 Oil Pump/oil Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT,OIL PUMP

13107-1411

1
Out of stock

14091

COVER

14091-0626

1
Out of stock

16097

FILTER-ASSY-OIL

16097-0008

1
Out of stock

16130

VALVE-ASSY-RELIEF

16130-1058

1
Out of stock

16142

COVER-PUMP,OIL

16142-1155

1
Out of stock

16154

ROTOR-PUMP,40.56X22

16154-1115

1
Out of stock

32033

PIPE,OIL FILTER

32033-1535

1
Out of stock

49065

FILTER-OIL

49065-0046

1
Out of stock

59051

GEAR-SPUR,OIL PUMP

59051-1377

1
Out of stock

92022

WASHER,6X12.8X1.2

92022-1827

1
Out of stock

92042

PIN,DOWEL,4X15.8

92042-014

1
Out of stock

92043

PIN,DOWEL,8X10

92043-1302

1
Out of stock

92055

RING-O,OIL FILTER

92055-1354

1
Out of stock

92154

BOLT,FLANGED,6X25

92154-0497

1
Out of stock

92154A

BOLT,FLANGED,6X25

92154-0498

1
Out of stock

92154B

BOLT,FLANGED,6X18

92154-0499

1
Out of stock

92154C

BOLT,FLANGED,6X10

92154-0500

1
Out of stock

92160

DAMPER,OIL FILTER COVER

92160-1995

1
Out of stock
