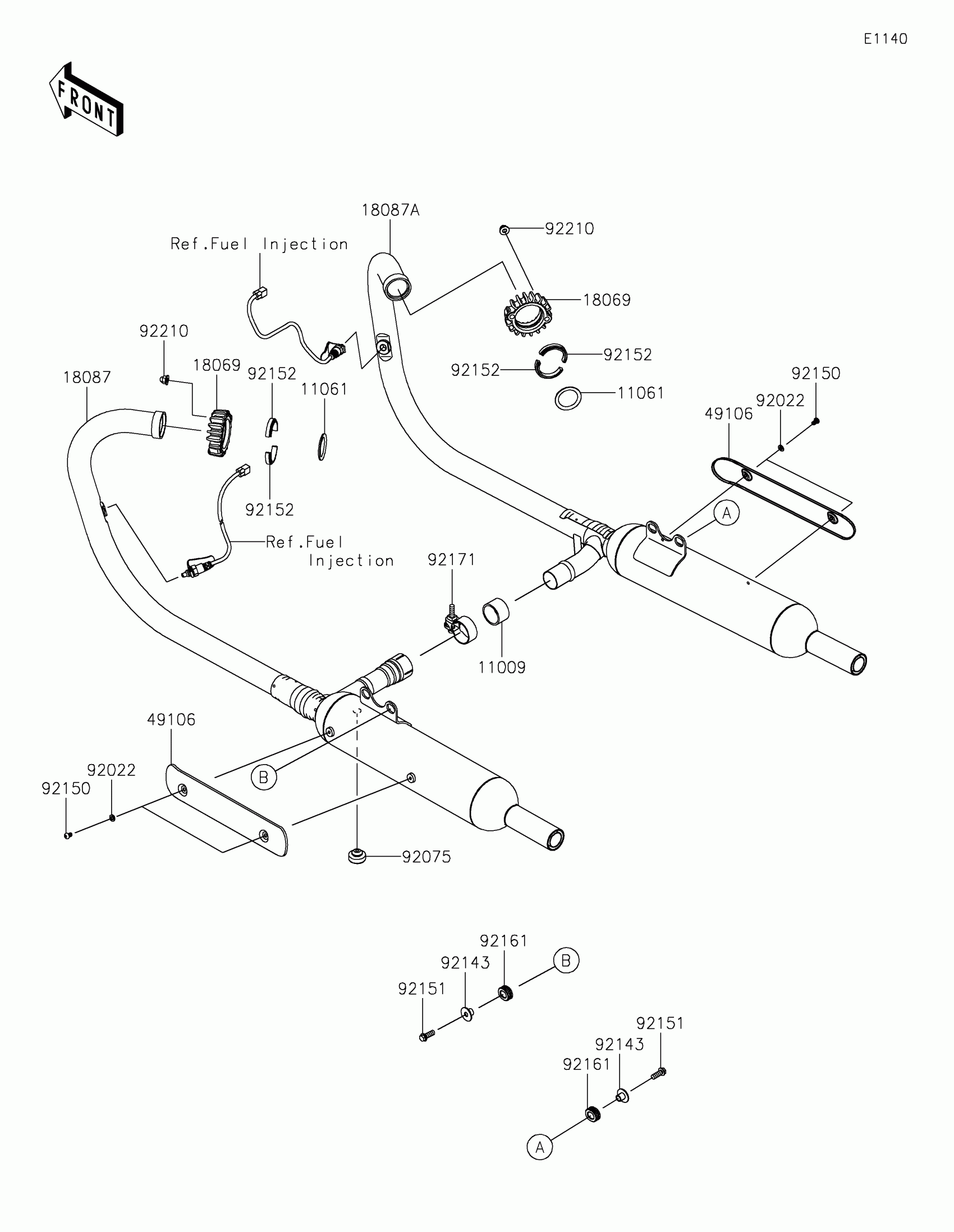

Kawasaki W800 Muffler(s) Diagram

Description

Price

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1667

$22.90

11061

GASKET,EXHAUST PIPE HOLDER

11061-1421

$8.62

18069

HOLDER-EXHAUST PIPE

18069-1150

$29.17

18087

MUFFLER,LH

18087-0387

$958.74

18087A

MUFFLER,RH

18087-0388

$950.68

49106

COVER-MUFFLER

49106-0114

$66.73

92022

WASHER,6.5X11.5X2

92022-1506

$3.92

92075

DAMPER

92075-1045

$8.86

92143

COLLAR

92143-1753

$7.84

92150

BOLT,6X10

92150-1577

$3.60

92151

BOLT,8X22

92151-1926

$2.80

92152

COLLAR,EXHAUST PIPE

92152-2870

$2.34

92161

DAMPER

92161-0992

$3.74

92171

CLAMP,CHAMBER-EX PIPE

92171-0061

$24.35

92210

NUT,CAP,8MM

92210-1132

$4.18
