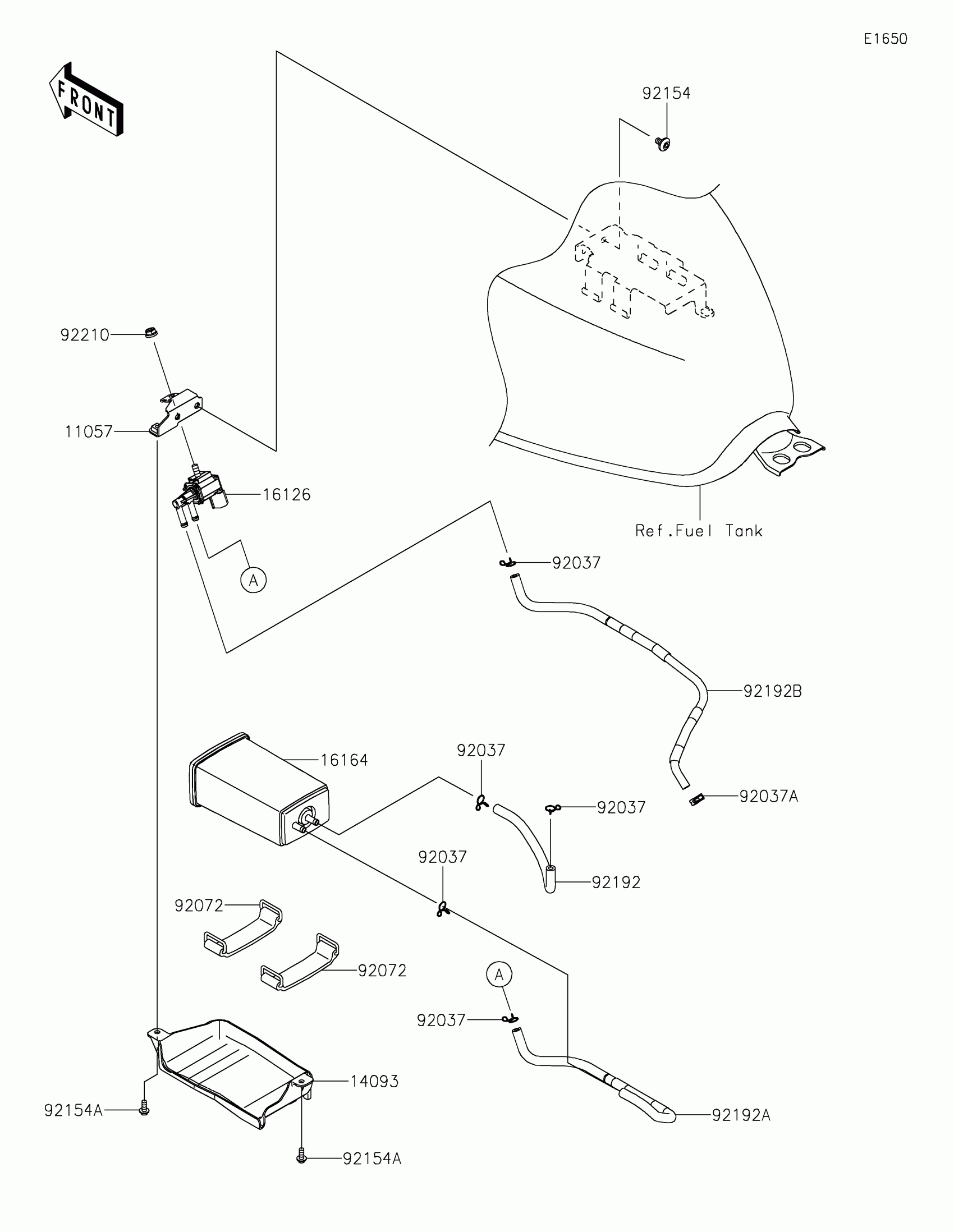

Kawasaki W800 Fuel Evaporative System(CA) Diagram

Description

Price

11057

BRACKET,CANISTER

11057-2071

$14.99

14093

COVER,CANISTER

14093-0791

$15.77

16126

VALVE,SOLENOID

16126-0705

$106.99

16164

CANISTER

16164-0012

$149.73

92037

CLAMP

92037-1712

$5.00

92037A

CLAMP,7.8MM

92037-2116

$1.39

92072

BAND,L=90

92072-045

$14.90

92154

BOLT,SOCKET,6X10

92154-1834

$2.80

92154A

BOLT,SOCKET,5X12,MEC

92154-2678

$3.57

92192

TUBE,TANK-CANISTER

92192-1932

$18.63

92192A

TUBE,CANISTER-VALVE

92192-1933

$75.78

92192B

TUBE,VALVE-THROTTLE

92192-1934

$78.95

92210

NUT,LOCK,FLANGED,6MM

92210-0303

$1.34
