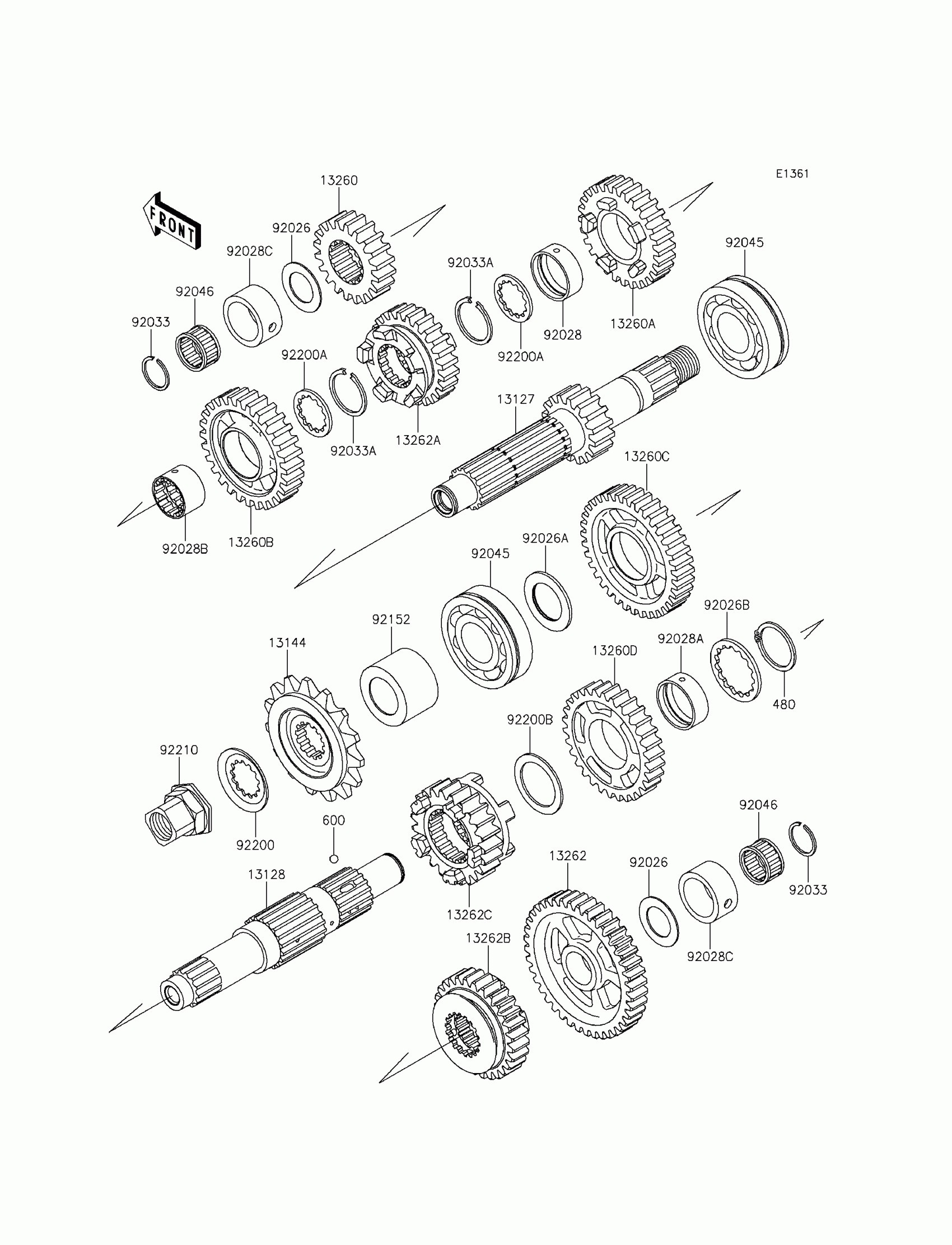

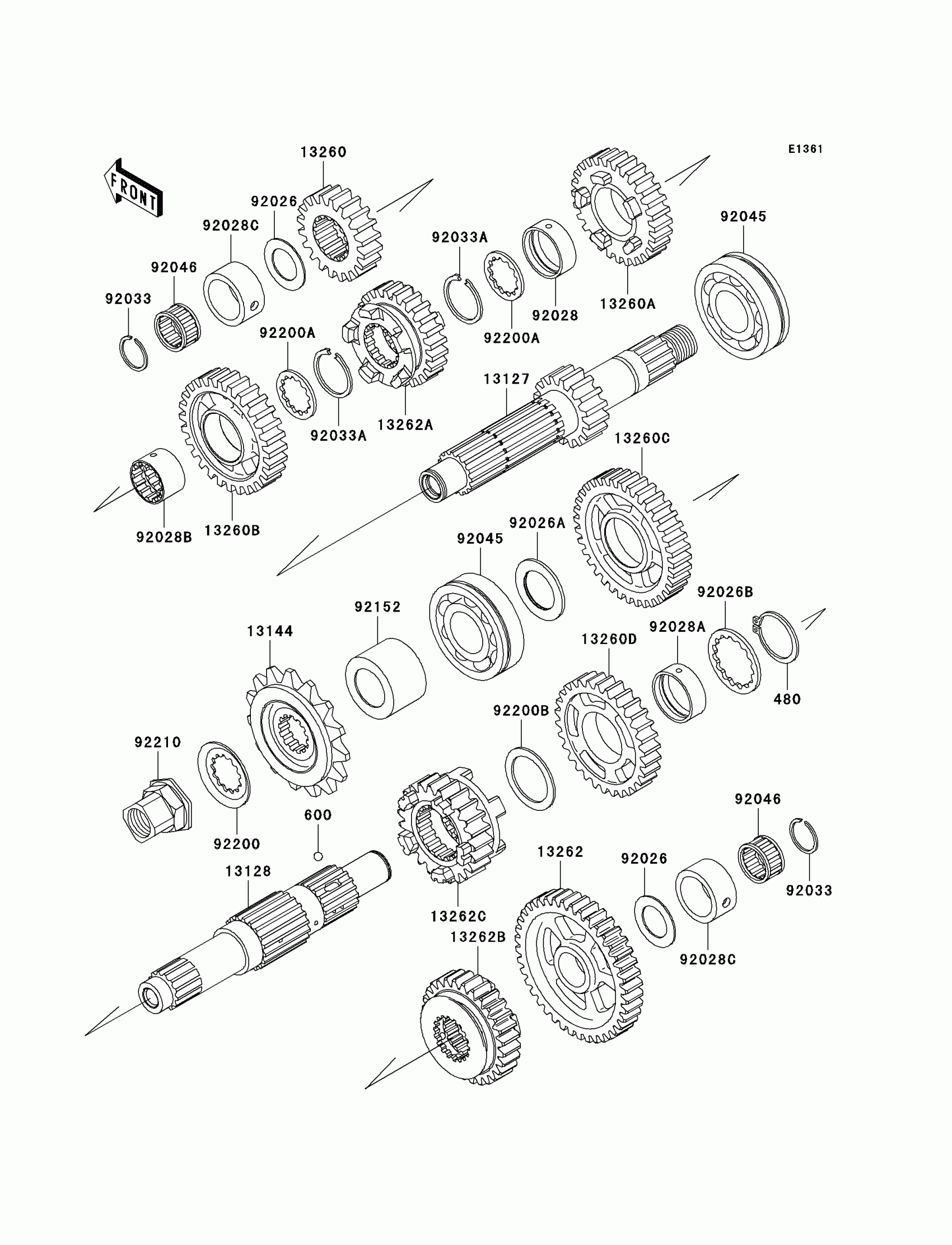

Kawasaki W800 (European) Transmission Diagram

#

Description
Price

480

CIRCLIP

480J2900

$5.42

600

BALL-STEEL,5/32

600A0500

$0.71

13127

SHAFT-TRANSMISSION INPUT

13127-0087

$244.55

13128

SHAFT-TRANSMISSION OUTPUT

13128-0063

$239.21

13144

SPROCKET-OUTPUT,15T

13144-0554

$47.28

13260

GEAR,INPUT 2ND,22T

13260-1783

$129.19

13260A

GEAR,INPUT 4TH,28T

13260-1785

$129.19

13260B

GEAR,INPUT TOP,27T

13260-1786

$133.93

13260C

GEAR,OUTPUT 2ND,35T

13260-1788

$129.19

13260D

GEAR,OUTPUT 3RD,31T

13260-1789

$129.19

13262

GEAR,OUTPUT LOW,40T

13262-0843

$137.01

13262A

GEAR,INPUT 3RD,25T

13262-0844

$172.07

13262B

GEAR,OUTPUT 4TH,28T

13262-0845

$137.01

13262C

GEAR,OUTPUT TOP,23T

13262-0846

$137.01

92026

SPACER,20.5X33X1.0

92026-1528

$4.42

92026A

SPACER,25.3X39X2.0

92026-1529

$10.49

92026B

SPACER,TOOTHED,28X30X2.0

92026-1530

$10.49

92028

BUSHING,INPUT GEAR

92028-1449

$24.03

92028A

BUSHING,OUTPUT GEAR

92028-1707

$82.30

92028B

BUSHING,INPUT TOP GEAR

92028-1752

$36.81

92028C

BUSHING,26X34X16.6

92028-180

$29.37

92033

RING-SNAP,20MM

92033-015

$3.39

92033A

RING-SNAP,25.9X30.6X1.2

92033-1037

$3.69

92045

BEARING-BALL,6305N2SH2

92045-1224

$37.61

92046

BEARING-NEEDLE,KMJ20X26X13.8X1

92046-1185

$17.42

92152

COLLAR,SPROCKET

92152-1148

$34.04

92200

WASHER

92200-1065

$5.18

92200A

WASHER,28.5X34.0X1.5

92200-1240

$8.16

92200B

WASHER,29.9X40X1.5

92200-1278

$11.49

92210

NUT,SPROCKET

92210-1098

$31.85
