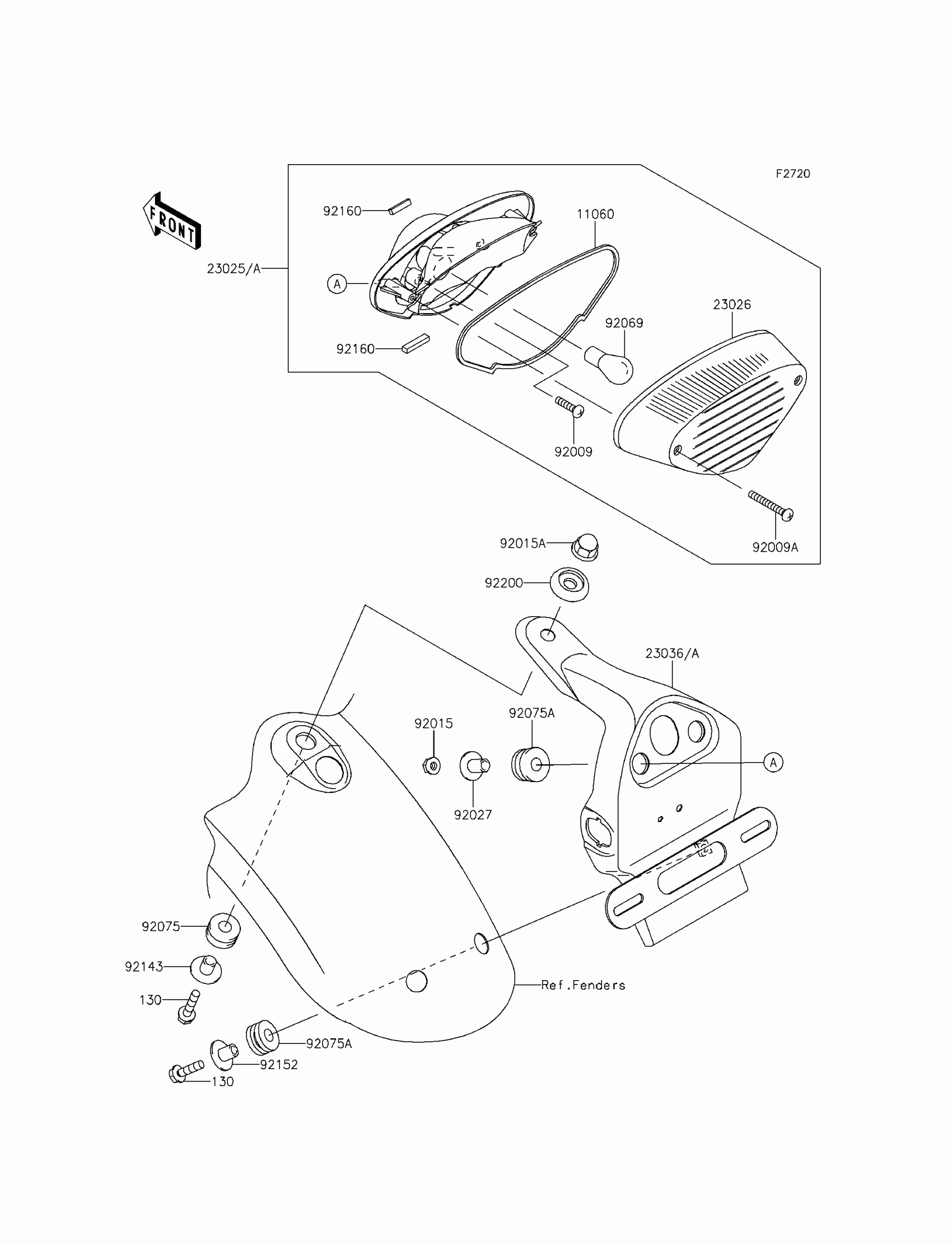

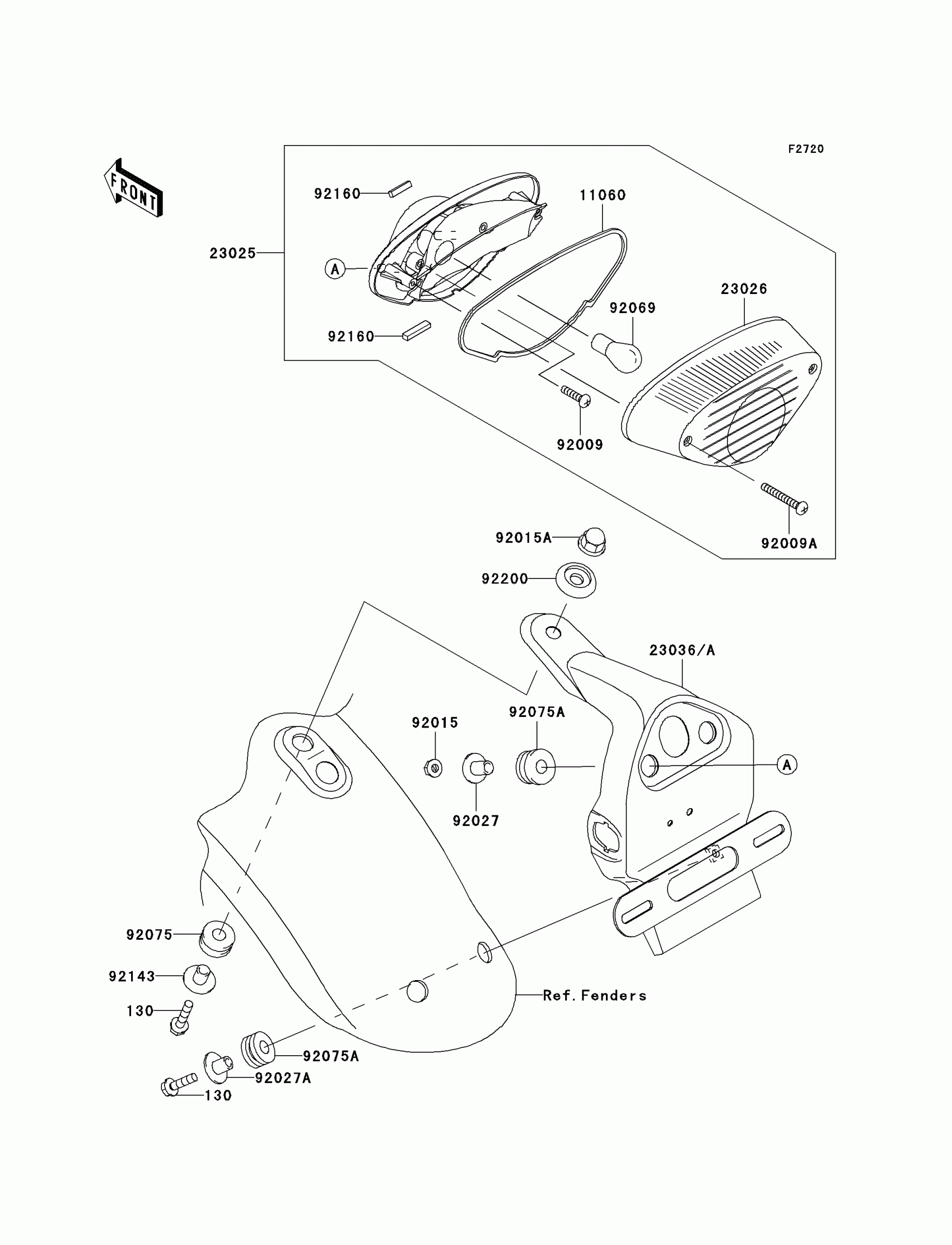

Kawasaki W800 (European) Taillight(s) Diagram

Description

Price

130

BOLT-FLANGED,6X22

130BA0622

$1.29

11060

GASKET,TAIL LAMP LENS

11060-1901

$5.95

23025

LAMP-TAIL

23025-0071

$277.22

23026

LENS,TAIL LAMP

23026-1222

$45.22

23036

BRACKET-TAIL LAMP

23036-0012

$119.31

92009

SCREW,TAPPING,4X12

92009-1381

$2.97

92009A

SCREW,TAPPING,4X35

92009-1687

$4.10

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92015A

NUT,CAP,6MM

92015-1385

$4.31

92027

COLLAR,L=13.1,BLACK

92027-1450

$6.22

92027A

COLLAR,L=13.1

92027-251

Unavailable

92069

BULB,12V 21/5W

92069-063

$9.31

92075

DAMPER

92075-1185

$4.69

92075A

DAMPER,10X24X12

92075-1690

$5.00

92143

COLLAR,L=15.6

92143-1041

$8.10

92160

DAMPER

92160-1998

$3.69

92200

WASHER

92200-1153

$10.16
