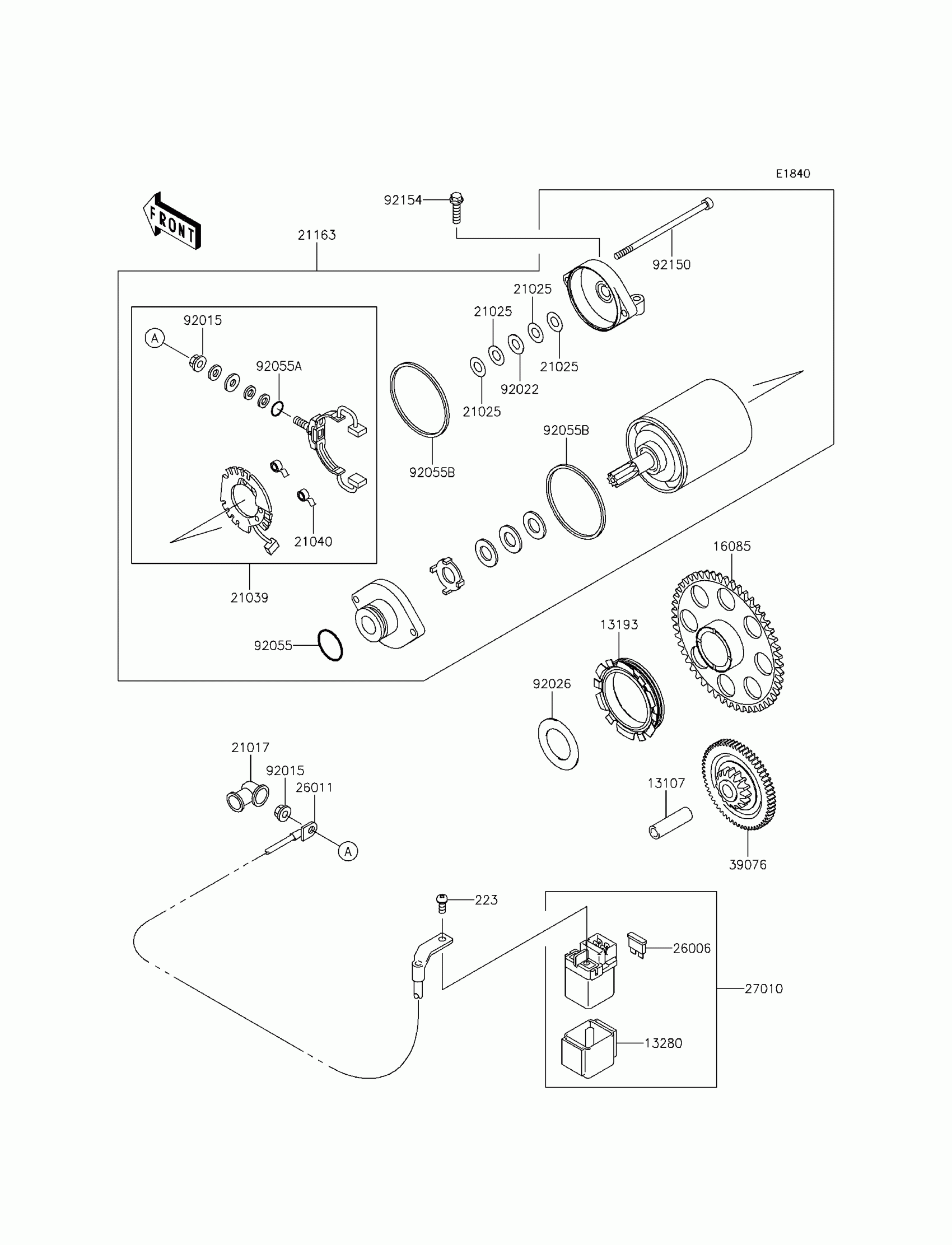

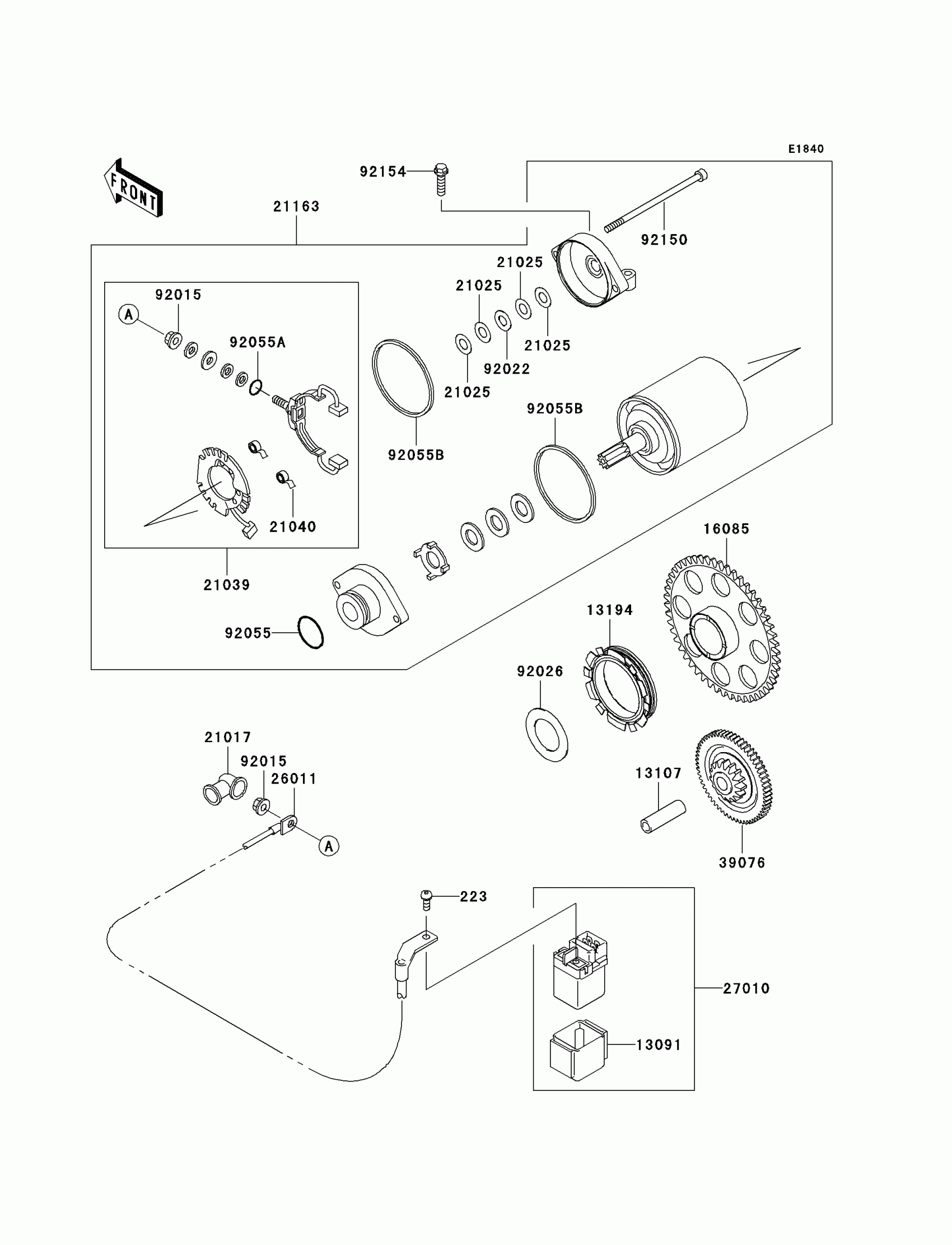

Kawasaki W800 (European) Starter Motor Diagram

Description

Price

223

SCREW-PAN-WS-CROS,5X10

223AA0510

$0.43

13091

HOLDER,SWITCH

13091-1883

$7.60

13107

SHAFT,IDLE GEAR

13107-1106

$16.69

13194

CLUTCH-ONEWAY

13194-0015

Unavailable

16085

GEAR,ONEWAY CLUTCH

16085-1318

$158.15

21017

GROMMET,STARTER TERMINAL

21017-017

$9.43

21025

WASHER,9.1X18X0.2

21025-011

Unavailable

21039

BRUSH,CARBON

21039-1060

$84.32

21040

SPRING-BRUSH

21040-1055

$8.42

21163

STARTER-ELECTRIC

21163-1263

$534.05

26011

WIRE-LEAD,STARTER MOTOR

26011-1737

$66.19

27010

SWITCH,MAGNETIC

27010-1347

Unavailable

39076

LIMITER,STARTER GEAR

39076-1073

$125.02

92015

NUT,STARTER MOTOR

92015-1476

$4.31

92022

WASHER,9.1X18X0.8

92022-1132

$6.22

92026

SPACER,29.1X47.5X1.2

92026-087

$9.91

92055

RING-O

92055-1276

$9.91

92055A

RING-O,4.5X2.0

92055-1370

$4.69

92055B

RING-O,STARTER MOTOR

92055-1381

$9.91

92150

BOLT,STARTER MOTOR

92150-1913

$9.51

92154

BOLT,FLANGED,6X22

92154-0504

$1.94
