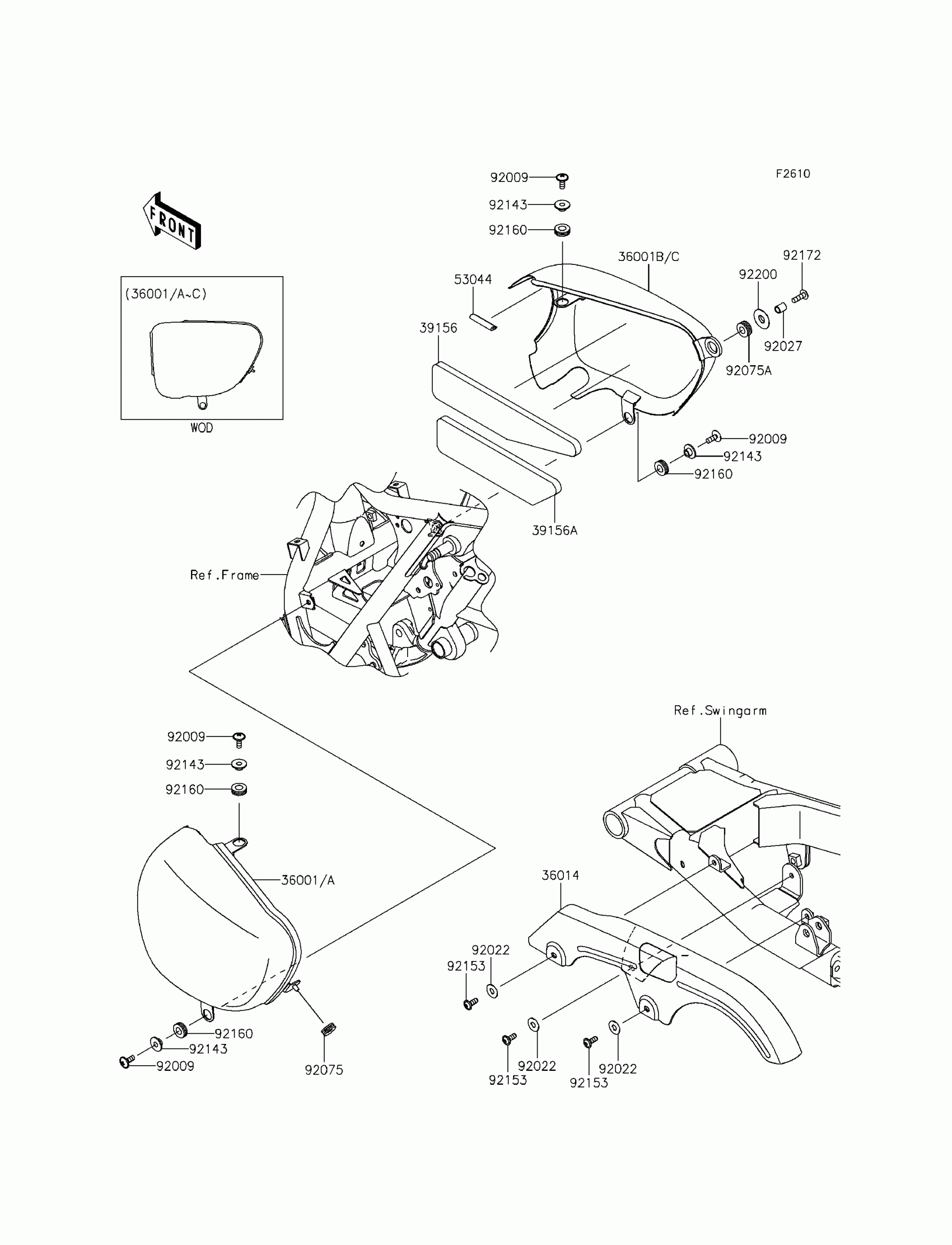

Kawasaki W800 (European) Side Covers/Chain Cover(AFF/AGF) Diagram

Description

Price

36001A

COVER-SIDE,LH,M.O.BLUE

36001-1632-726

$111.76

36001C

COVER-SIDE,RH,M.O.BLUE

36001-1636-726

$111.76

36014

CASE-CHAIN

36014-0553

$151.77

39156

PAD,SIDE COVER,RH,UPP

39156-0675

$6.57

39156A

PAD,SIDE COVER,RH,LWR

39156-0676

$6.57

53044

TRIM,L=40

53044-1320

$2.34

92009

SCREW,6X16

92009-1621

Unavailable

92022

WASHER,6.5X16X1.0

92022-1093

$2.08

92027

COLLAR,6.8X10X12

92027-162

$6.57

92075

DAMPER

92075-1629

$5.00

92075A

DAMPER

92075-1634

$4.69

92143

COLLAR,L=7.4

92143-1019

$4.73

92153

BOLT,SOCKET,6X16

92153-0817

$2.15

92160

DAMPER

92160-1278

$4.39

92172

SCREW,6X20

92172-0399

$2.58

92200

WASHER

92200-1153

$10.16
