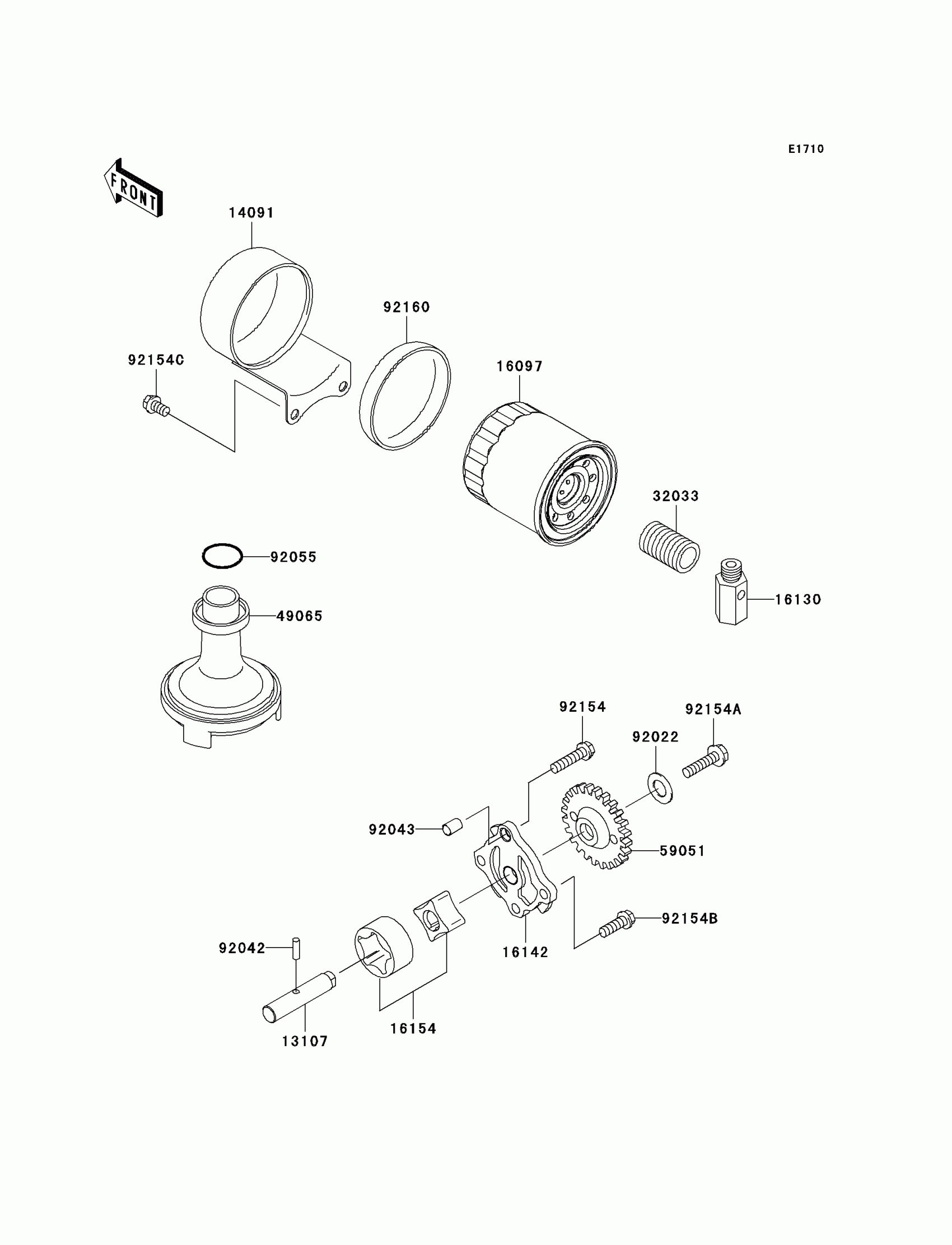

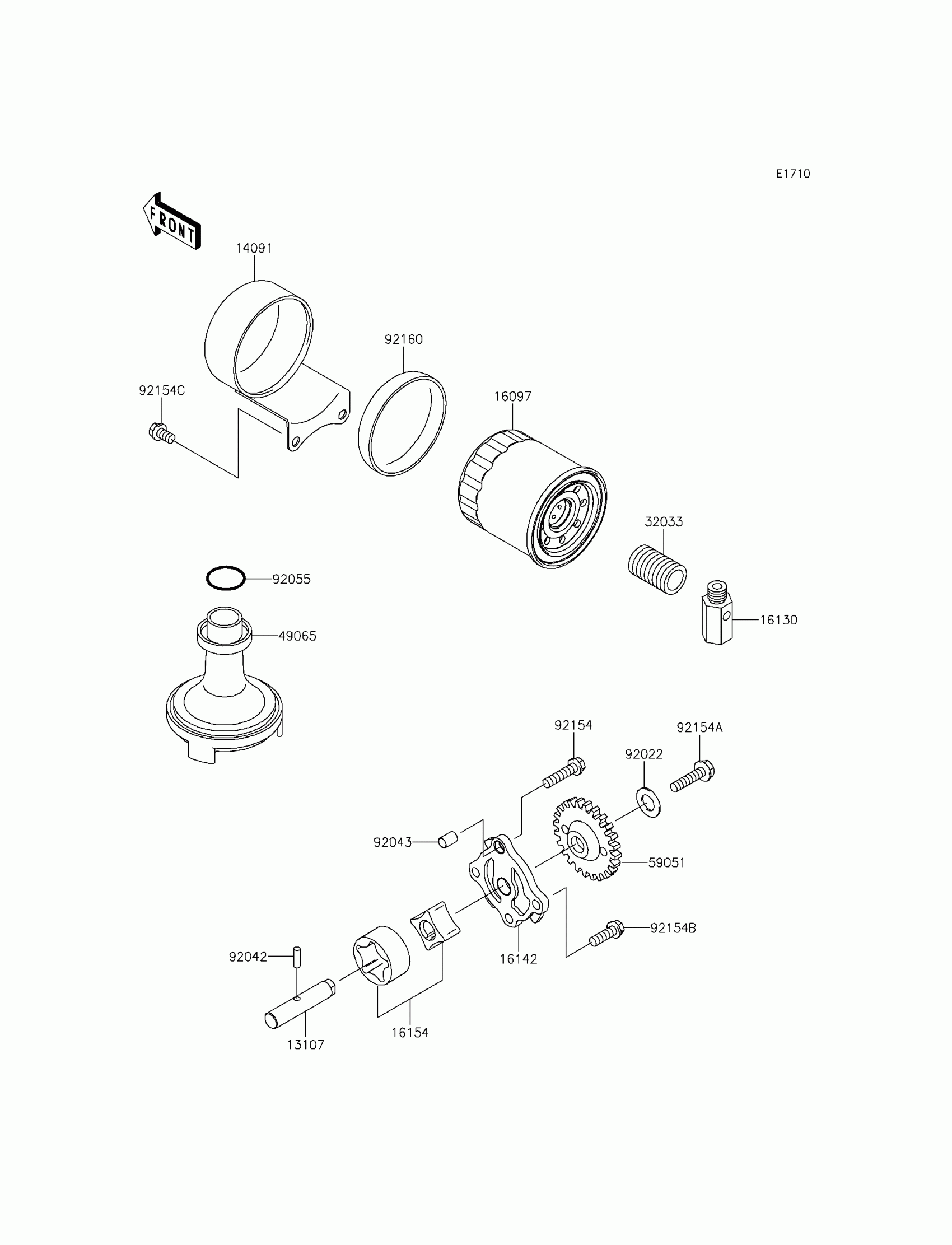

Kawasaki W800 (European) Oil Pump Diagram

Description

Price

13107

SHAFT,OIL PUMP

13107-1411

$25.14

14091

COVER

14091-0626

$30.46

16097

FILTER-ASSY-OIL

16097-0004

Unavailable

16130

VALVE-ASSY-RELIEF

16130-1058

$41.98

16142

COVER-PUMP,OIL

16142-1155

$29.63

16154

ROTOR-PUMP,40.56X22

16154-1115

$70.18

32033

PIPE,OIL FILTER

32033-1535

$12.96

49065

FILTER-OIL

49065-1082

$24.74

59051

GEAR-SPUR,OIL PUMP

59051-1377

$66.19

92022

WASHER,6X12.8X1.2

92022-1827

$4.69

92042

PIN,DOWEL,4X15.8

92042-014

$0.43

92043

PIN,DOWEL,8X10

92043-1302

$1.03

92055

RING-O,OIL FILTER

92055-1354

$9.51

92154

BOLT,FLANGED,6X25

92154-0497

$1.94

92154A

BOLT,FLANGED,6X25

92154-0498

$1.94

92154B

BOLT,FLANGED,6X18

92154-0499

$1.63

92154C

BOLT,FLANGED,6X10

92154-0500

$1.63

92160

DAMPER,OIL FILTER COVER

92160-1995

$10.16
