2012 Kawasaki W800 (European) Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2012 Kawasaki W800 (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

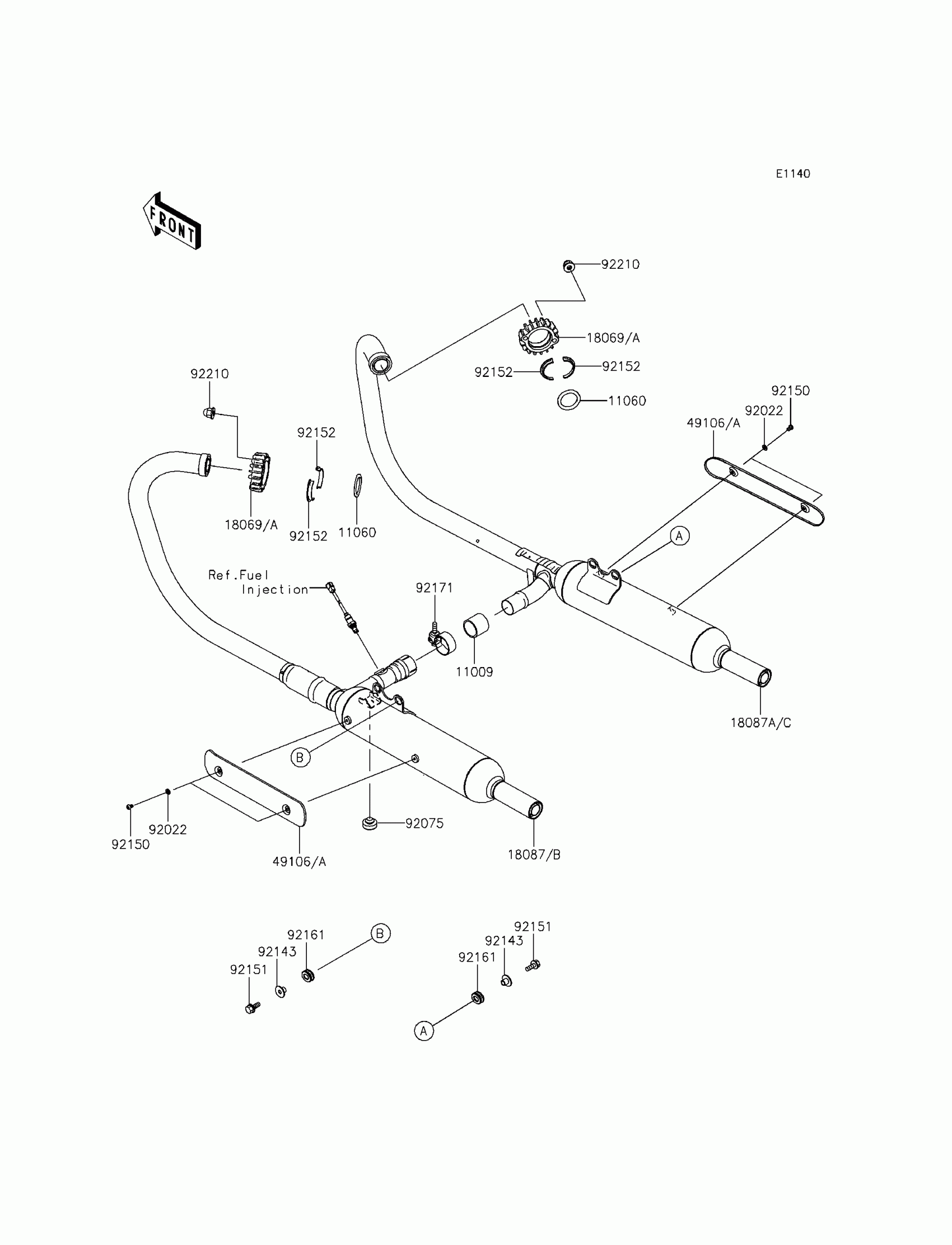

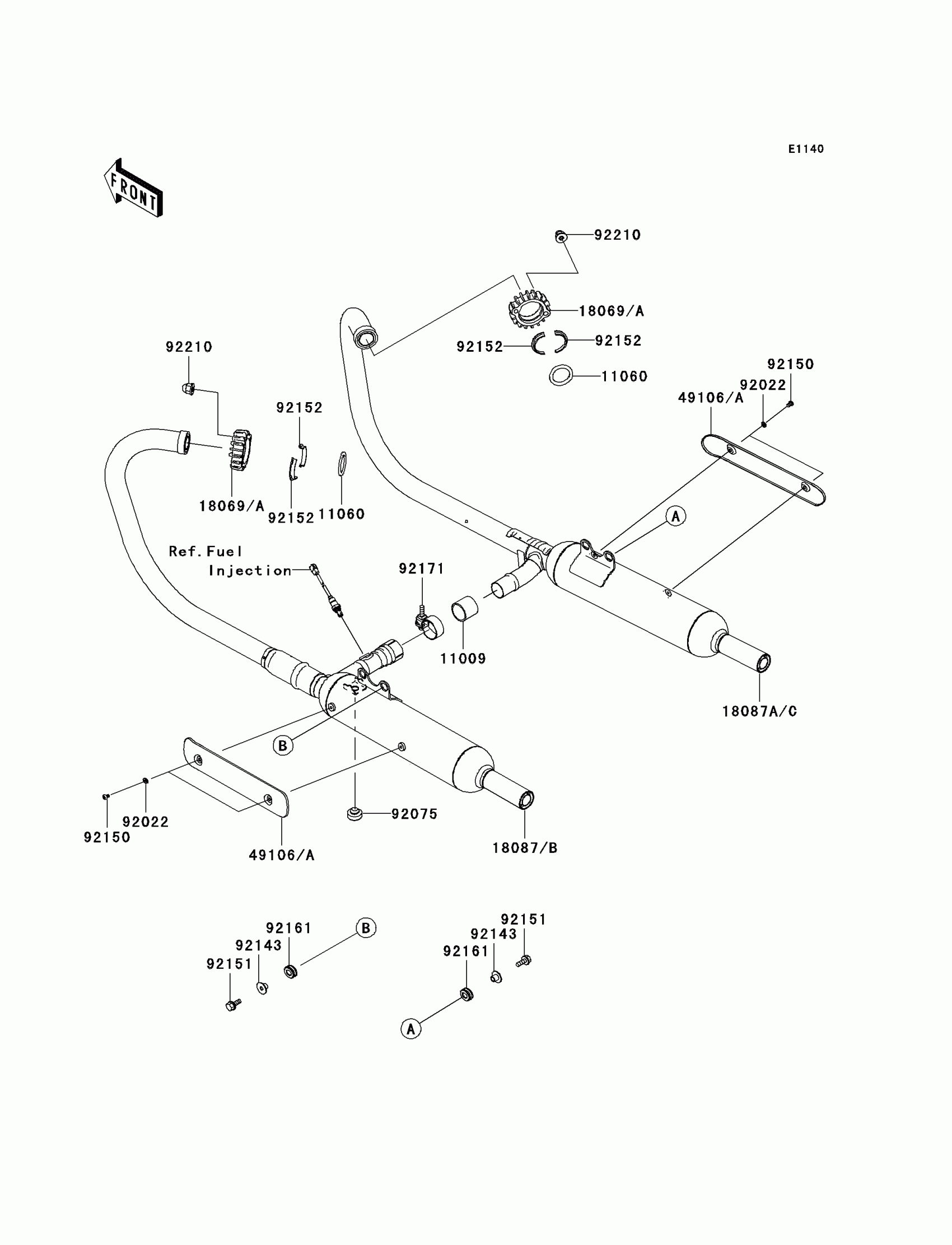

2012 Kawasaki W800 (European) Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$21.24

In stock

11060

1

$6.49

In stock

18069A

HOLDER-EXHAUST PIPE

18069-1150

1

$29.74

In stock

18087

MUFFLER,LH

18087-0274

1

$1,047.08

In stock

18087A

MUFFLER,RH

18087-0275

1

$1,047.08

In stock

49106

COVER-MUFFLER

49106-0114

1

$68.00

In stock

92022

WASHER,6.5X11.5X2

92022-1506

1

$3.53

In stock

92075

DAMPER

92075-1045

1

$7.04

In stock

92143

COLLAR

92143-1753

1

$6.24

In stock

92150

BOLT,6X10

92150-1577

1

$3.17

In stock

92151

BOLT,8X22

92151-1926

1

$2.29

In stock

92152

COLLAR,EXHAUST PIPE

92152-1149

1

$1.97

In stock

92161

DAMPER

92161-0992

1

$3.29

In stock

92171

1

$22.90

In stock

92210

NUT,CAP,8MM

92210-1132

1
Out of stock
