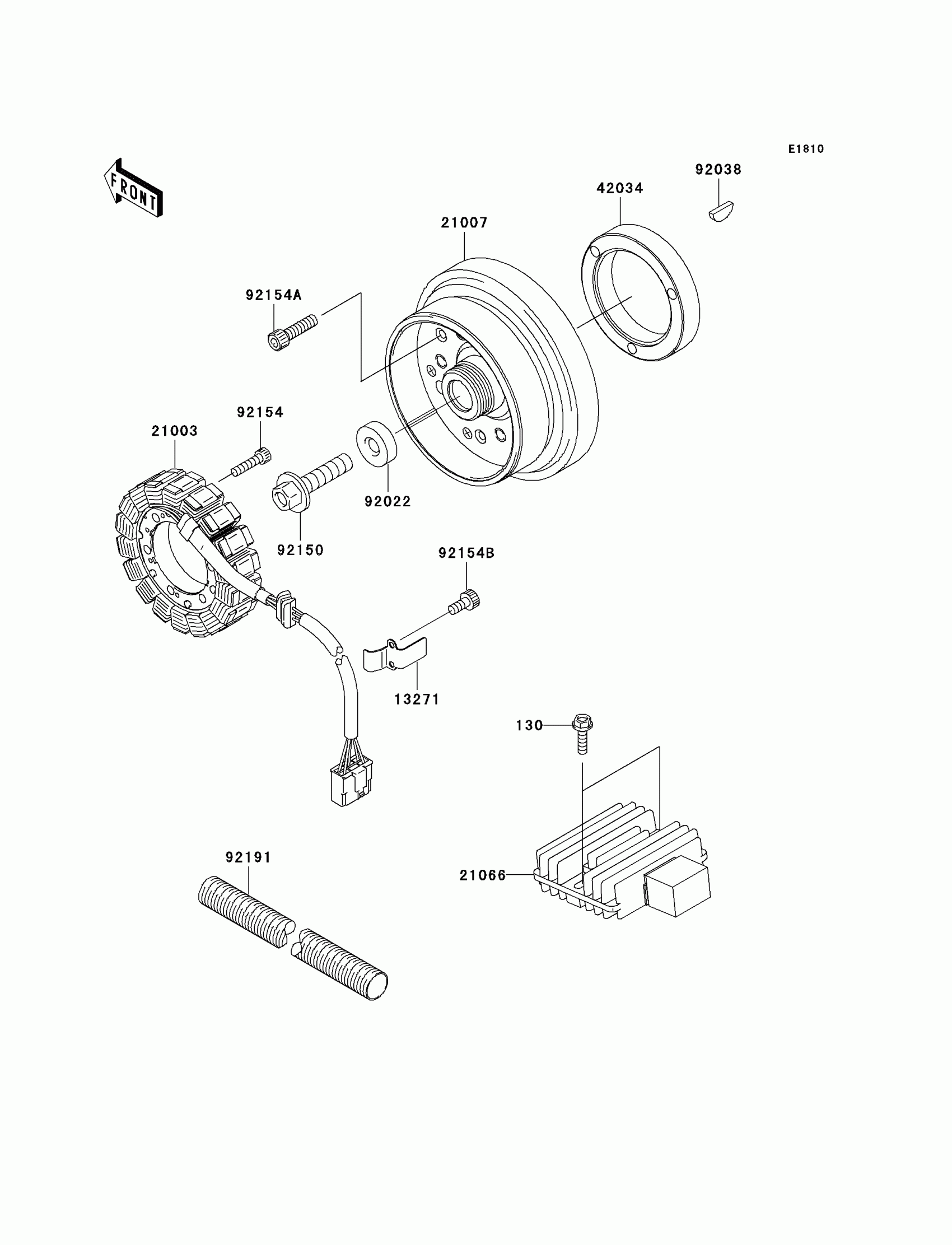

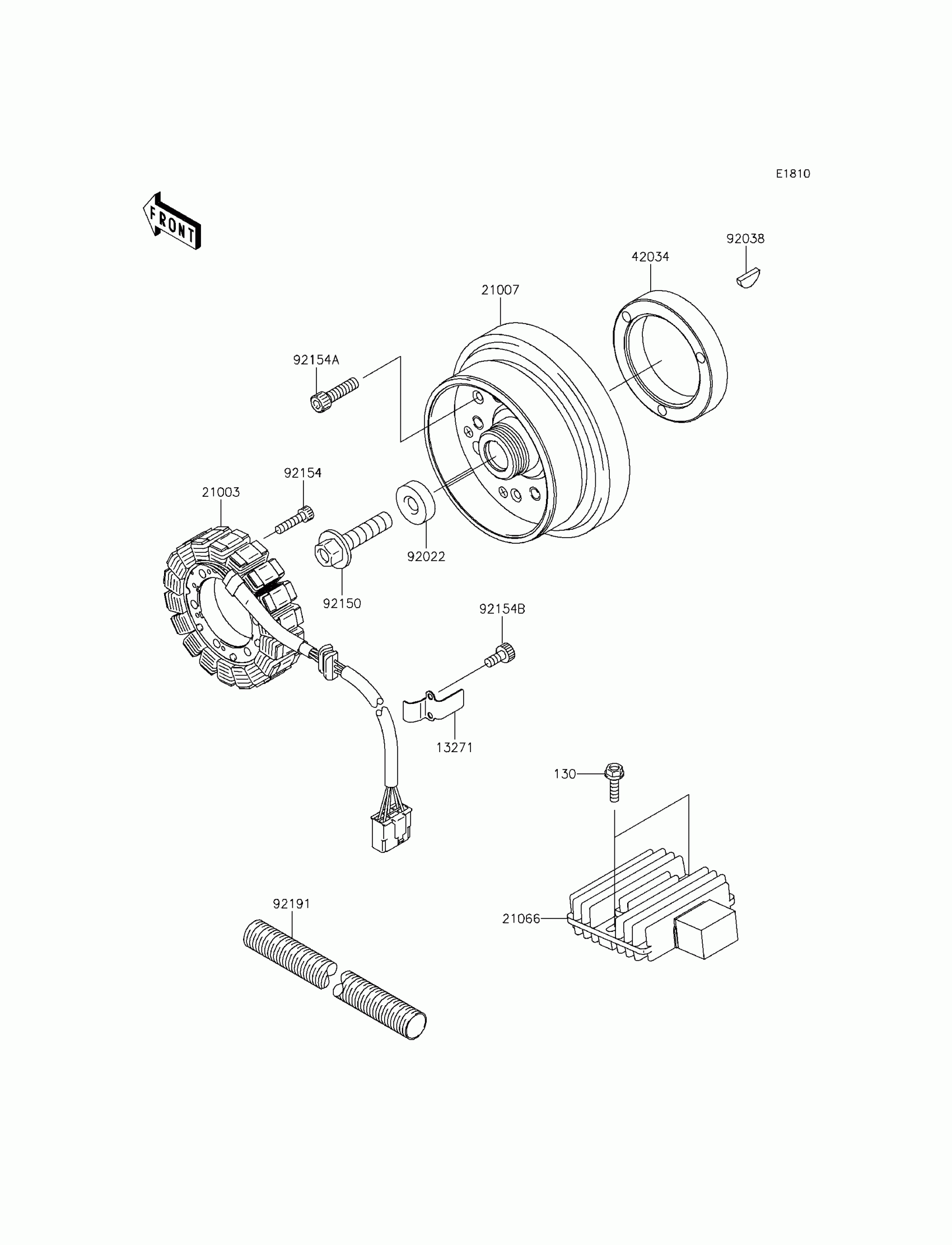

Kawasaki W800 (European) Generator Diagram

Description

Price

130

BOLT-FLANGED,6X22

130BB0622

$3.67

13271

PLATE

13271-1185

$3.65

21003

STATOR

21003-0112

$549.29

21007

ROTOR

21007-0159

$654.18

21066

REGULATOR-VOLTAGE

21066-3718

Unavailable

42034

COUPLING

42034-0710

$79.27

92022

WASHER,12X40X6

92022-1904

$14.23

92038

KEY,WOODRUFF

92038-001

$4.96

92150

BOLT,12X50

92150-1708

$7.34

92154

BOLT,SOCKET,6X25

92154-0477

$1.94

92154A

BOLT,SOCKET,8X30

92154-0502

$3.74

92154B

BOLT,SOCKET,5X12

92154-0503

$1.63

92191

TUBE

92191-1397

$4.78
