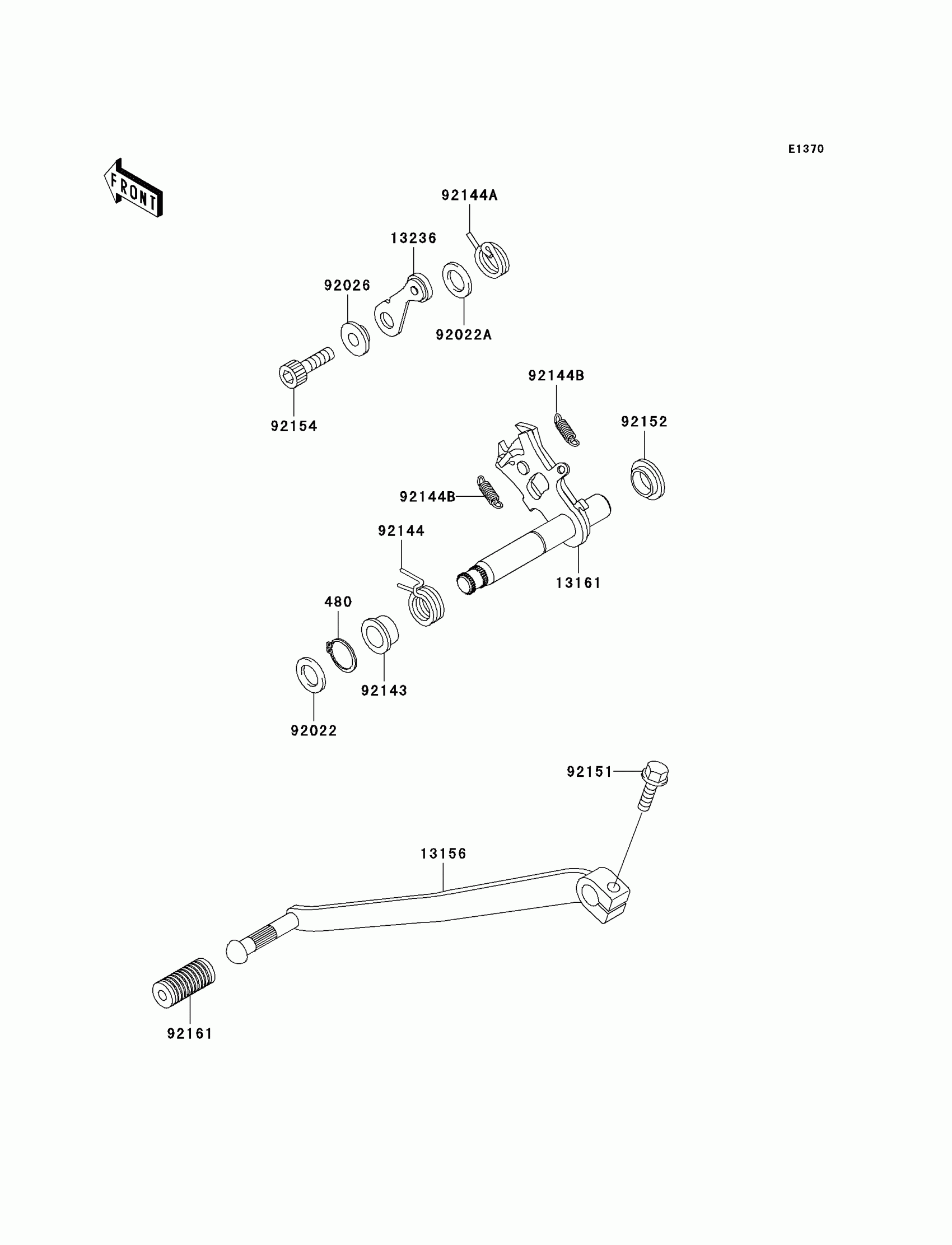

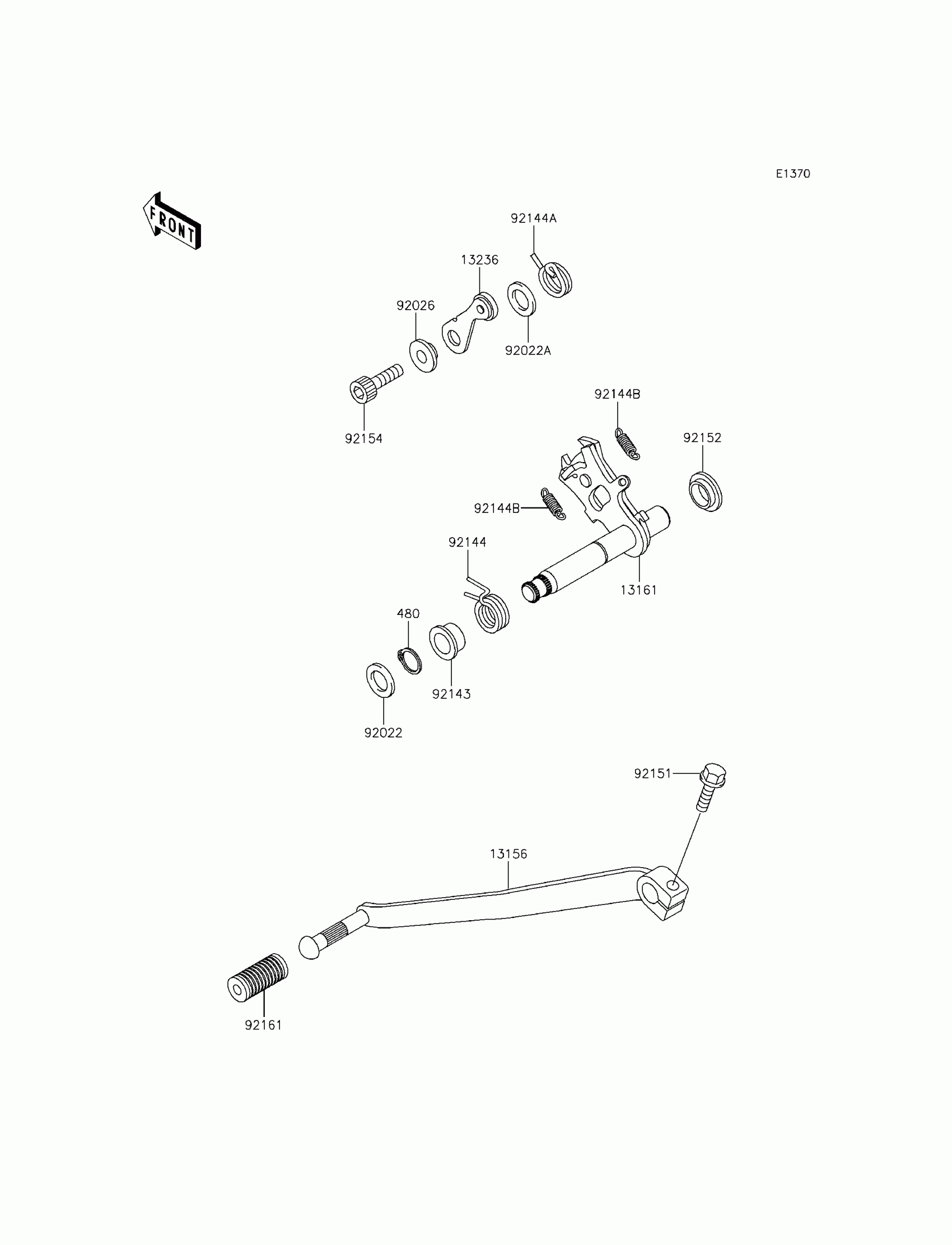

Kawasaki W800 (European) Gear Change Mechanism Diagram

Description

Price

480

CIRCLIP-TYPE-C,13MM

480J1300

$3.92

13156

LEVER-CHANGE,PEDAL

13156-1482

Unavailable

13161

LEVER-COMP-CHANGE SHAFT

13161-0048

Unavailable

13236

LEVER-COMP,POSITION

13236-1253

$10.96

92022

WASHER,13.3X20X1

92022-1496

$3.92

92022A

WASHER,6X12.8X1.2

92022-1827

$4.69

92026

SPACER

92026-1217

$5.52

92143

COLLAR,RETURN SPRING

92143-1498

$10.65

92144

SPRING,CHANGE SHAFT RETURN

92144-1628

$9.43

92144A

SPRING,LEVER POSITION

92144-1873

$7.77

92144B

SPRING,CHANGE LEVER

92144-1975

$5.46

92151

BOLT,FLANGED,6X20

92151-1226

$2.46

92152

COLLAR

92152-1075

$4.18

92154

BOLT,SOCKET,6X16

92154-0484

$1.63

92161

DAMPER,CHANGE PEDAL

92161-1300

$6.18
