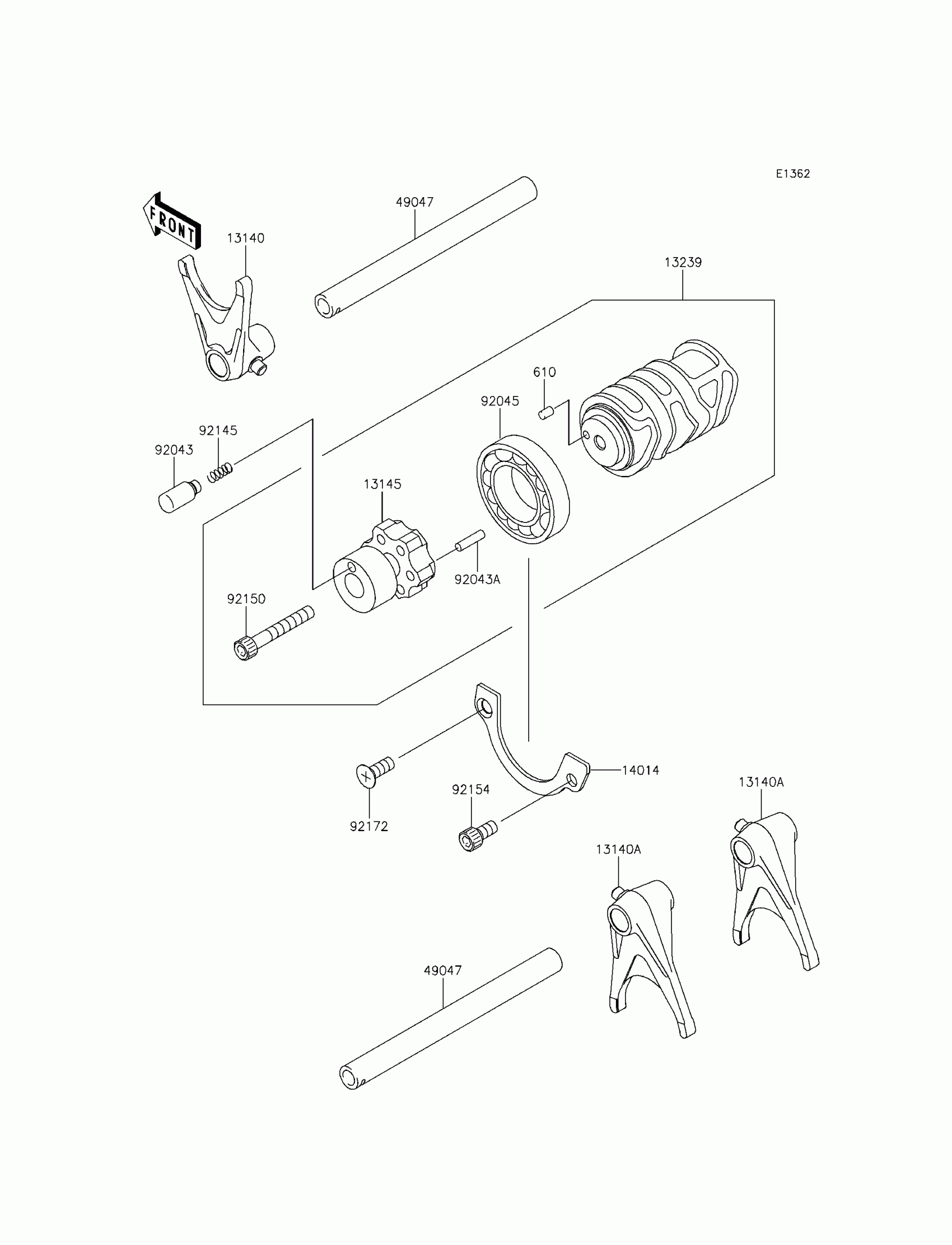

Kawasaki W800 (European) Gear Change Drum/Shift Fork(s) Diagram

Description

Price

610

ROLLER,4X8

610A0408

$4.31

13140

FORK-SHIFT,INPUT 3RD

13140-1282

$84.40

13140A

FORK-SHIFT,OUTPUT 4TH&TOP

13140-1283

$84.40

13145

CAM-CHANGE DRUM

13145-1083

$53.51

13239

DRUM-ASSY-CHANGE

13239-0557

$211.21

14014

PLATE-POSITION

14014-1141

$7.84

49047

ROD-SHIFT

49047-1102

$22.95

92043

92043-0712

$5.05

92043A

PIN,5X21.8

92043-1518

$2.78

92045

BEARING-BALL,16005

92045-1045

$28.25

92145

SPRING

92145-1414

$4.14

92150

BOLT,SOCKET,6X40

92150-1958

$5.52

92154

BOLT,SOCKET,6X12

92154-0483

$1.63

92172

SCREW,6X16

92172-0503

$1.63
