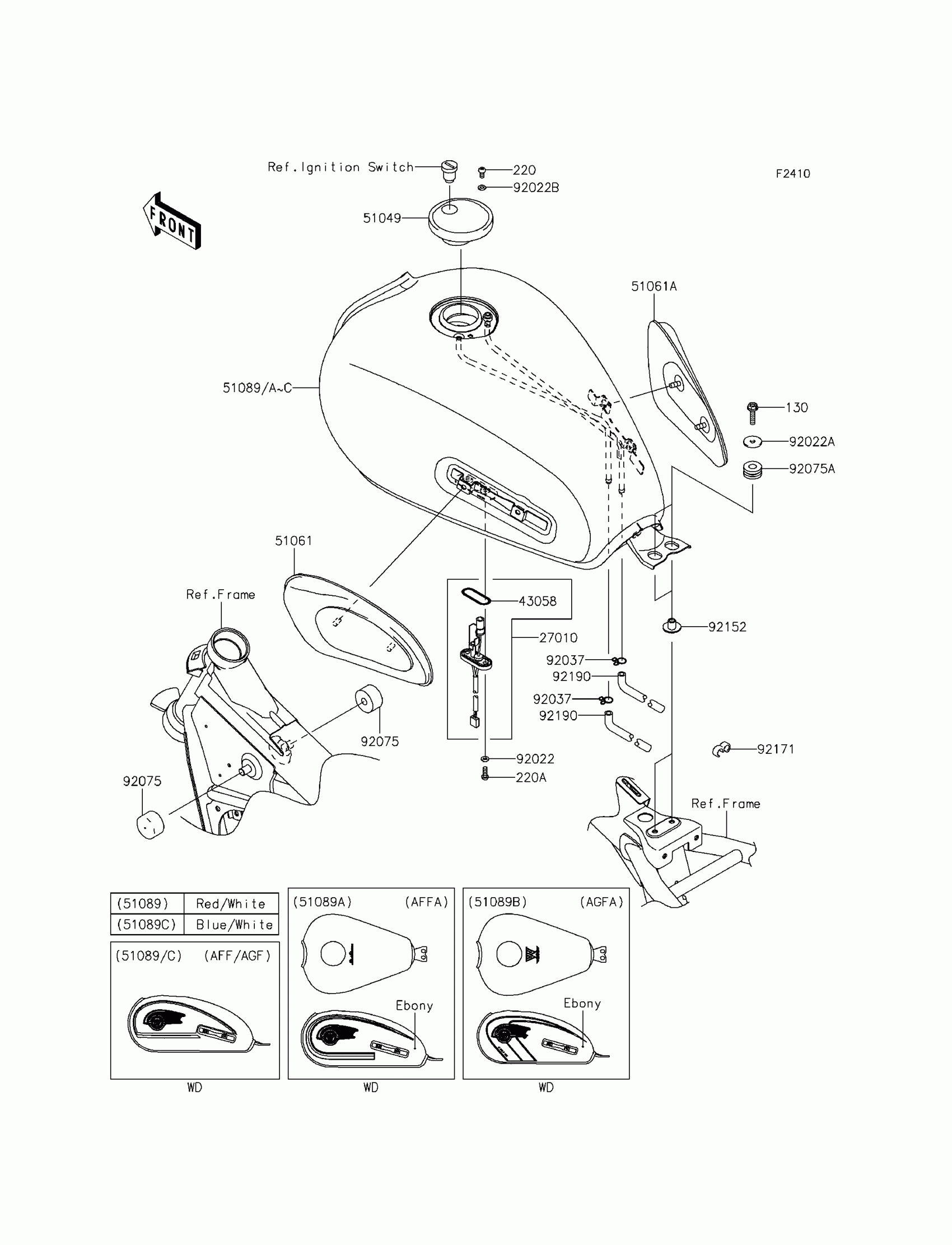

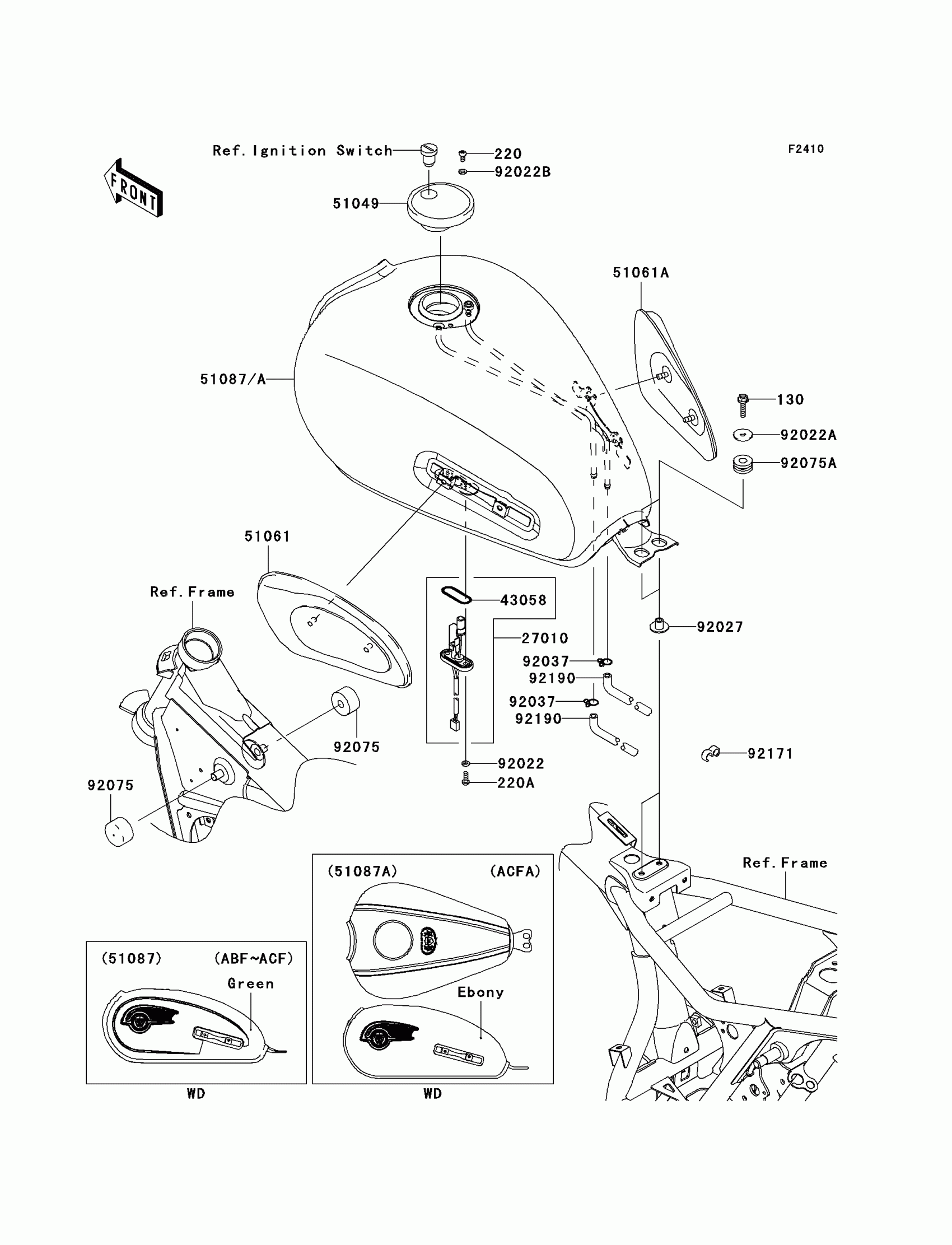

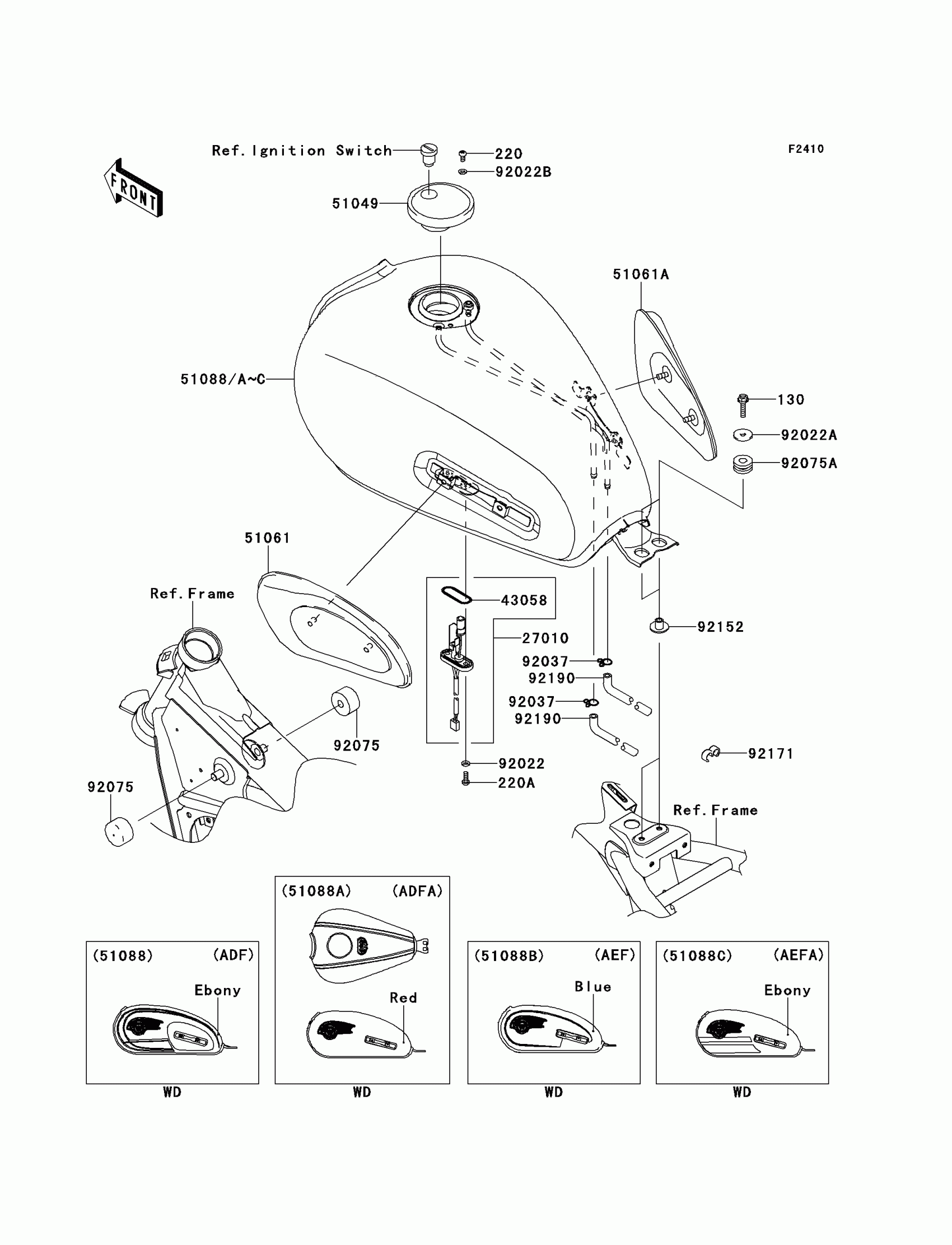

Kawasaki W800 (European) Fuel Tank Diagram

Description

Price

130

BOLT-FLANGED,6X25

130BA0625

$0.97

220

SCREW-PAN-CROS,5X10

220AA0510

$0.65

220A

SCREW-PAN-CROS,5X14

220AA0514

$3.38

27010

SWITCH,FUEL LEVEL

27010-0718

$120.68

43058

RING,FUEL LEVEL SWITCH

43058-1004

$6.13

51049

CAP-TANK,FUEL

51049-1132

$112.77

51061

PAD-KNEE,LH

51061-1057

$53.71

51061A

PAD-KNEE,RH

51061-1058

$53.71

51087

TANK-COMP-FUEL,M.D.GREEN

51087-5116-727

$1,744.12

92022

WASHER,5.2X10X1.5

92022-1023

$2.99

92022A

WASHER,6.5X24X2

92022-1690

$2.99

92022B

WASHER,5.1X10X1.0

92022-1977

$2.76

92027

COLLAR,L=13.1

92027-251

Unavailable

92037

CLAMP,TUBE

92037-147

$5.61

92075

DAMPER,FUEL TANK

92075-125

$4.67

92075A

DAMPER,10X24X12

92075-1690

$3.81

92171

CLAMP

92171-1184

$2.03

92190

TUBE,DRAIN

92190-1453

$20.00
