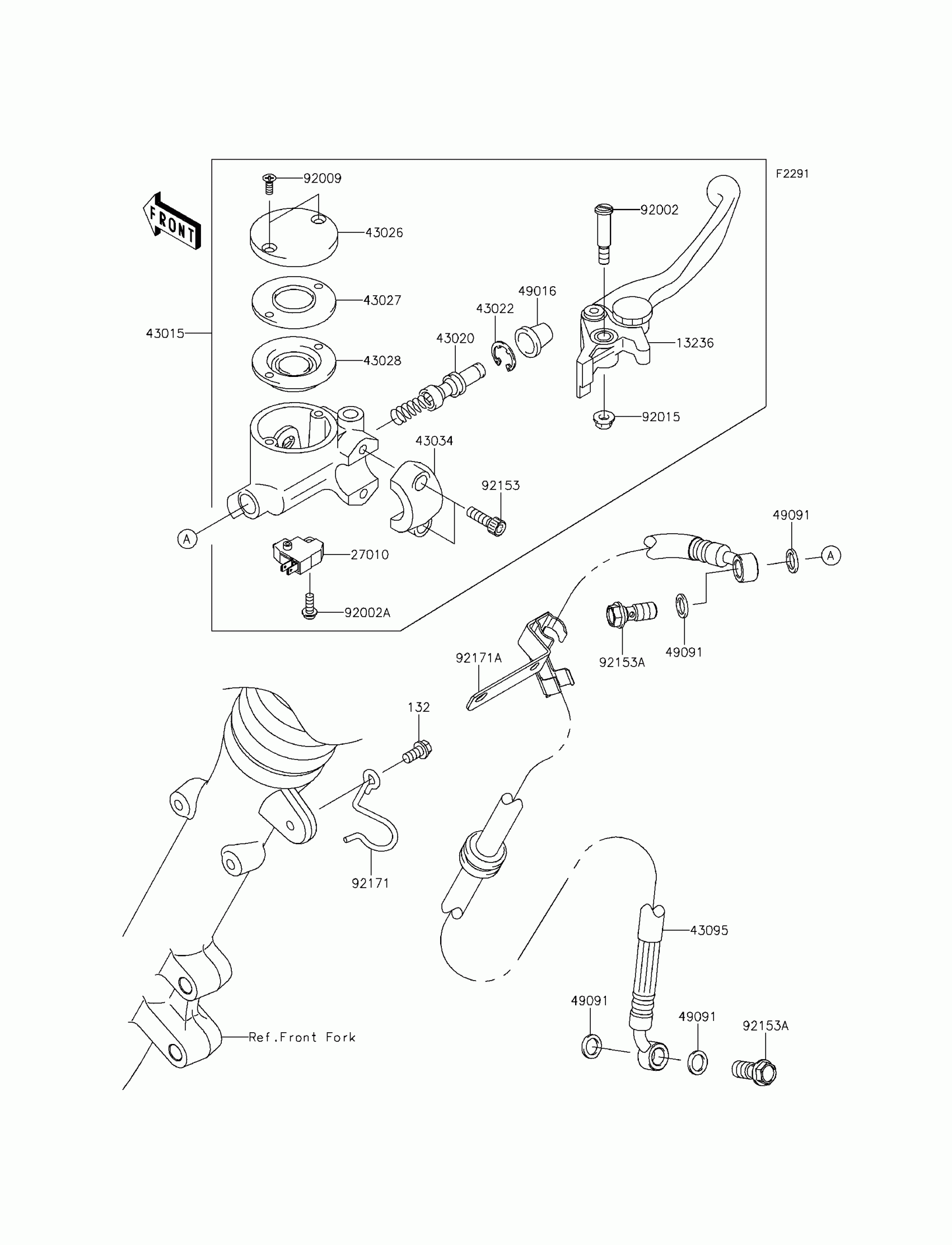

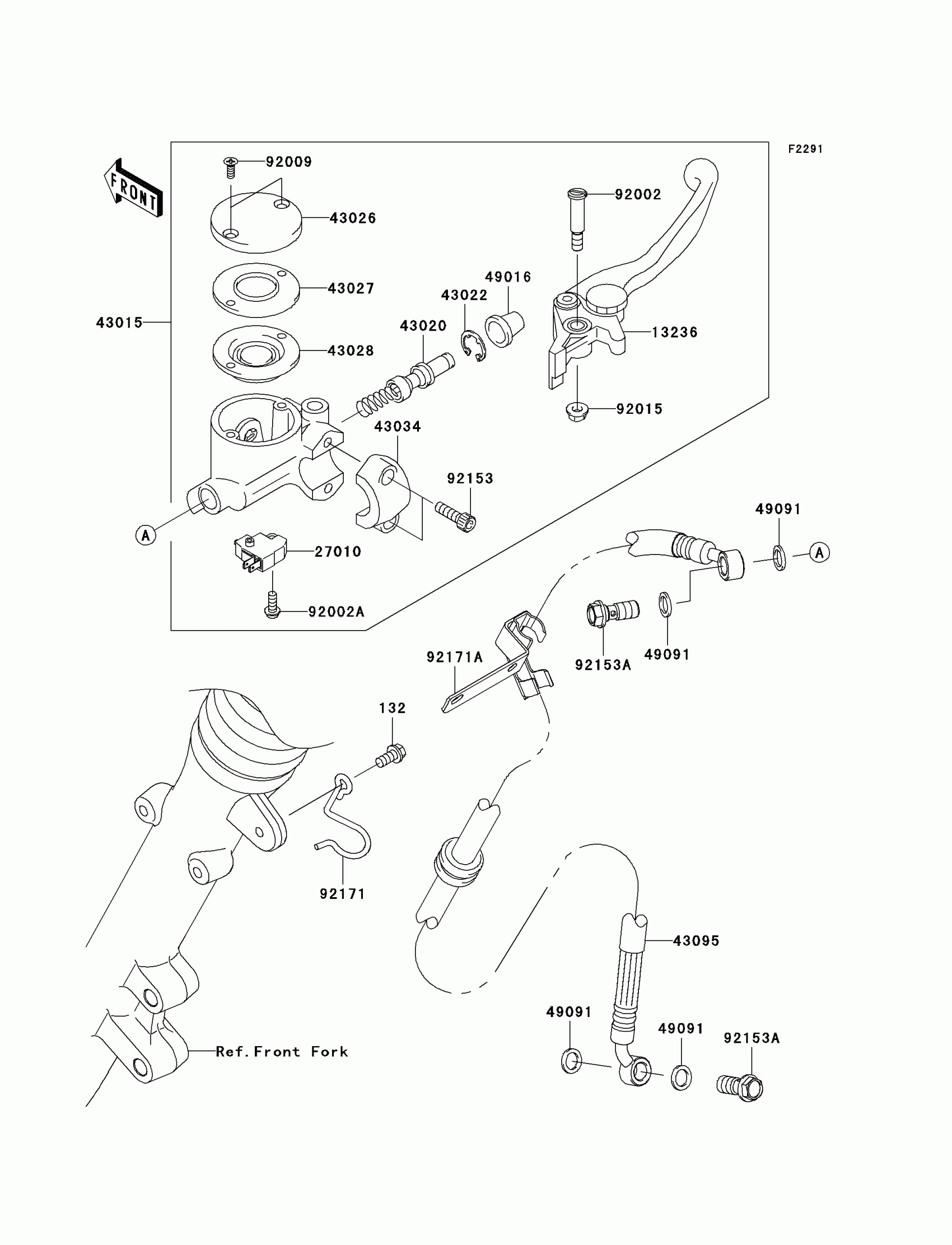

Kawasaki W800 (European) Front Master Cylinder Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132E0612

$4.41

13236

LEVER-COMP,FRONT BRAKE

13236-1221

$48.29

27010

SWITCH,BRAKE

27010-0025

$35.04

43015

CYLINDER-ASSY-MASTER,FR

43015-0162

$431.12

43020

PISTON-COMP-BRAKE

43020-1098

$51.24

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-0024

$37.95

43027

PLATE-DIAPHRAGM

43027-1058

$5.73

43028

DIAPHRAGM

43028-1087

$19.00

43034

HOLDER-BRAKE

43034-0065

$38.46

43095

HOSE-BRAKE,FR

43095-0590

$77.62

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92002

BOLT,LEVER SET,BLACK

92002-1322

$11.71

92002A

BOLT,SCREW,4X12

92002-1323

$3.92

92009

SCREW,4MM

92009-1458

$3.21

92015

NUT,FLANGED,6MM

92015-1528

$5.52

92153

BOLT,SOCKET,6X20

92153-0417

$7.65

92153A

BOLT,OIL,L=23

92153-0627

$5.48

92171

CLAMP,RH,HOSE

92171-0098

$18.12

92171A

CLAMP

92171-1143

$12.98
