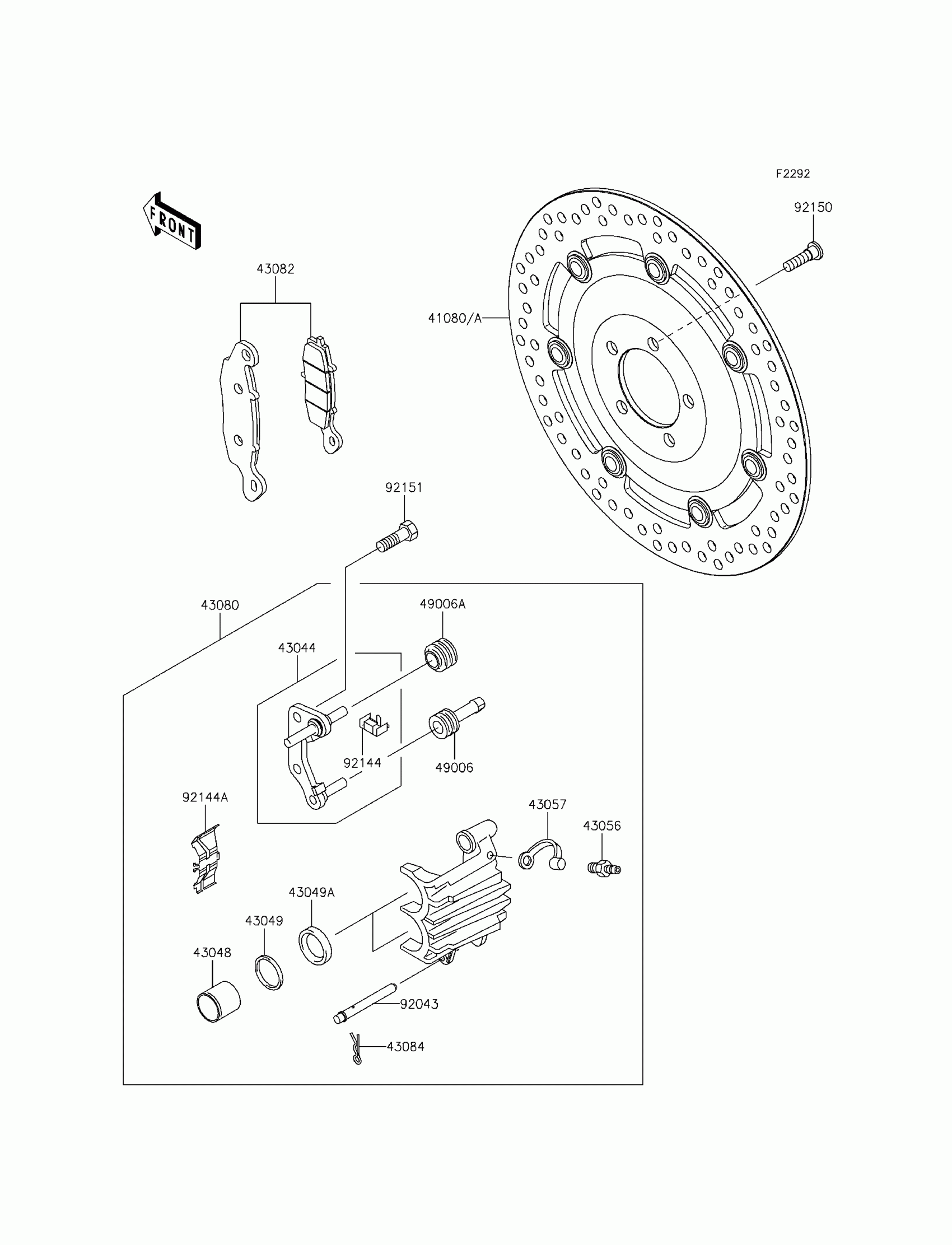

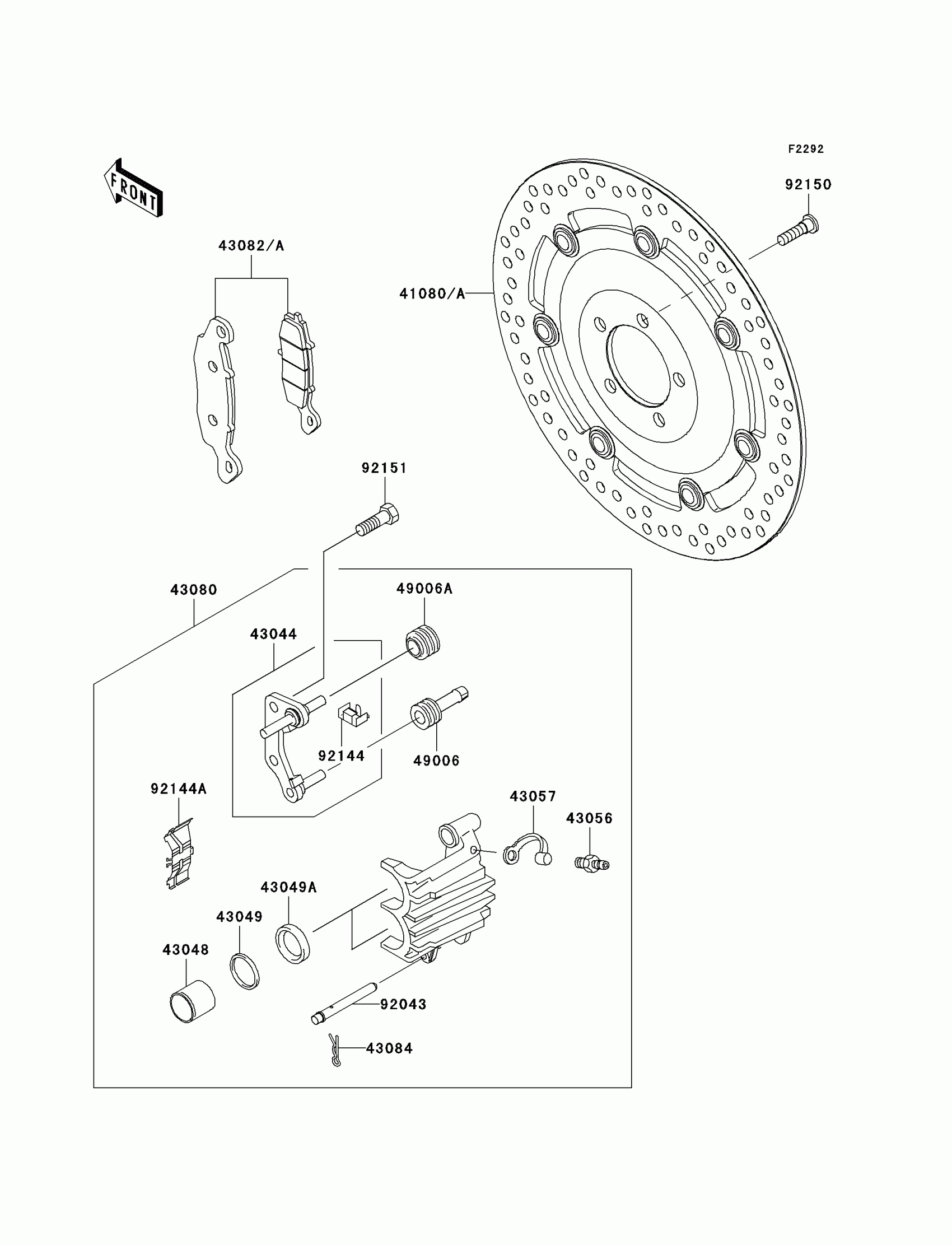

Kawasaki W800 (European) Front Brake Diagram

Description

Price

41080

DISC,FR,HOUSING SIL+DISC BLK

41080-0014-33J

$472.95

43044

HOLDER-COMP-CALIPER,FR,RH

43044-1116

$144.35

43048

PISTON-CALIPER

43048-1073

$65.22

43049

PACKING

43049-1068

$9.82

43049A

PACKING,PISTON SEAL

43049-1092

$10.39

43056

BREATHER-BRAKE

43056-0007

$23.79

43057

CAP-BREATHER

43057-003

$2.45

43080

CALIPER-SUB-ASSY,FR,RH,BLACK

43080-5028-DJ

$382.83

43082

PAD-ASSY-BRAKE

43082-0123

$83.86

43084

CLAMP,PAD

43084-003

$4.31

49006

BOOT,CALIPER

49006-1054

$11.61

49006A

BOOT,CALIPER

49006-1095

$7.27

92043

PIN,PAD

92043-1489

$6.57

92144

SPRING,STOPPER

92144-1831

$5.46

92144A

SPRING,PAD,RH

92144-1844

$10.00

92150

BOLT,SOCKET,8X20

92150-1760

$6.57

92151

BOLT,FLANGED,10X38

92151-1288

$4.76
