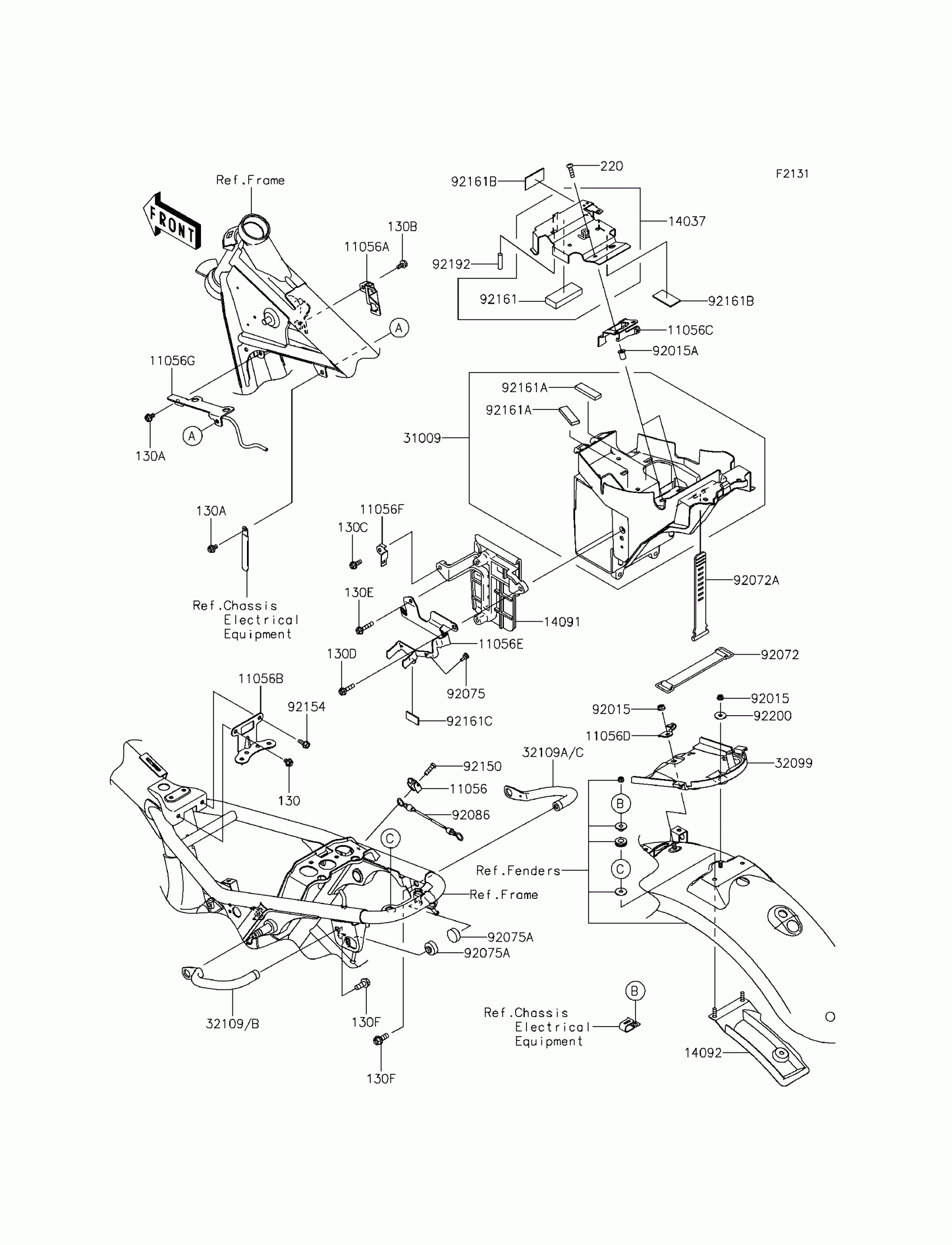

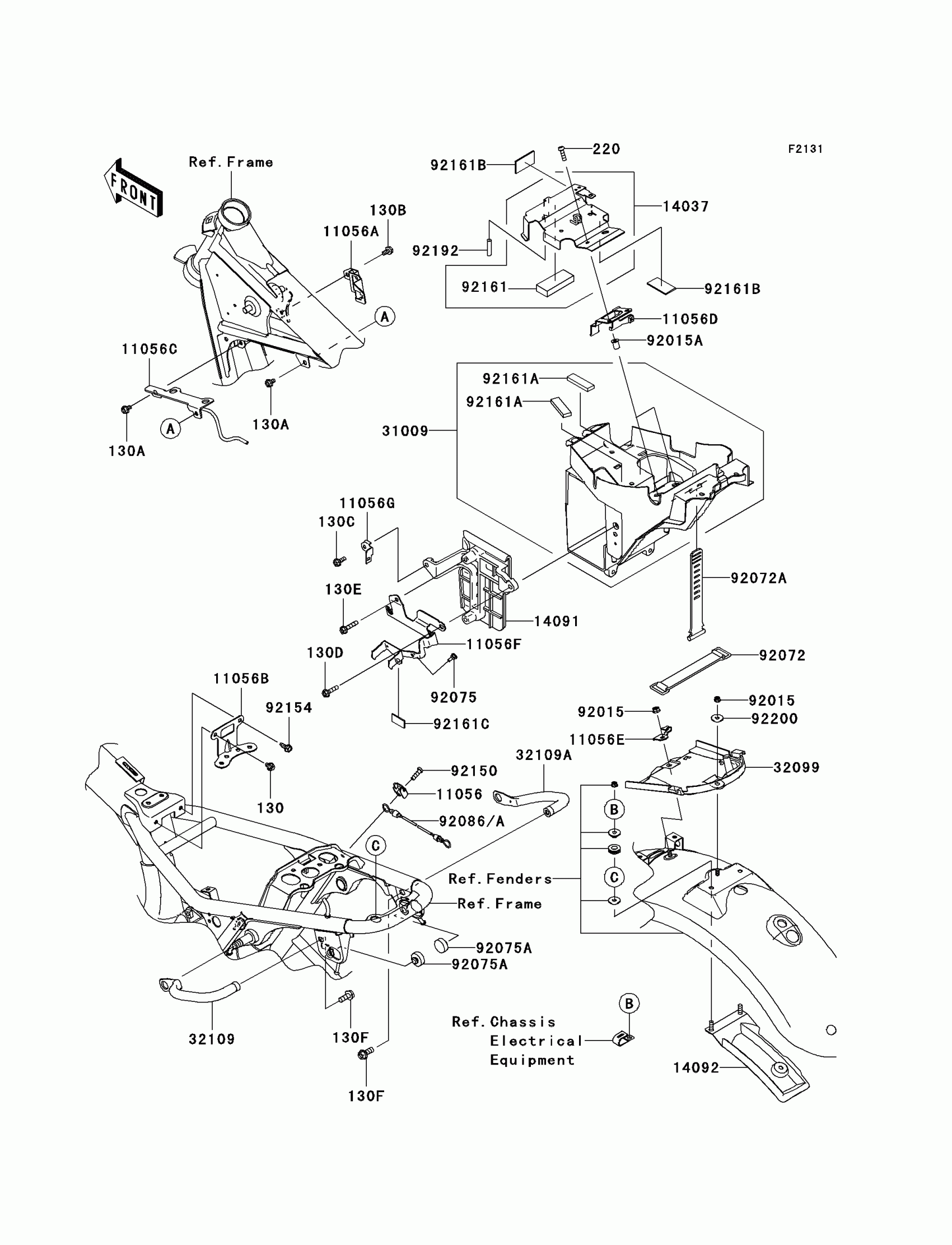

Kawasaki W800 (European) Frame Fittings Diagram

#

Description
Price

130

BOLT-FLANGED,6X8

130BA0608

$0.69

130A

BOLT-FLANGED,6X10

130BA0610

$0.97

130B

BOLT-FLANGED,6X12

130BA0612

$1.25

130C

BOLT-FLANGED,6X16

130BA0616

$0.97

130D

BOLT-FLANGED,6X25

130BA0625

$0.97

130E

BOLT-FLANGED,6X30

130BA0630

$1.13

130F

BOLT-FLANGED,8X20

130BA0820

$3.04

220

SCREW-PAN-CROS,6X20

220AA0620

$4.40

11056

BRACKET,HELMET HOLDER

11056-0315

$12.75

11056A

BRACKET

11056-0477

$9.75

11056B

BRACKET,FUEL TANK

11056-0478

$10.25

11056C

BRACKET,IGNITION COIL

11056-0479

Unavailable

11056D

BRACKET,VEHICLE DOWN SENSOR

11056-0557

$13.86

11056E

BRACKET

11056-1060

$5.64

11056F

BRACKET,JUNCTION BOX

11056-1272

$24.49

11056G

BRACKET

11056-1274

$14.14

14037

SCREEN

14037-0114

$49.09

14091

COVER,BATTERY

14091-0297

$127.99

14092

COVER,RR,HARNESS

14092-0244

$33.11

31009

CASE-COMP-BATTERY

31009-0006

$118.73

32099

CASE,U LOCK

32099-0056

$16.53

32109

GRIP-FRAME,LH

32109-1287

$43.26

32109A

GRIP-FRAME,RH

32109-1288

$43.26

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92015A

NUT

92015-1700

$6.55

92072

BAND

92072-0050

$11.84

92072A

BAND,TOOL

92072-0149

$9.92

92075

DAMPER,6X10X15

92075-1808

$1.06

92075A

DAMPER,9X24X14

92075-281

$4.67

92086A

WIRE,HELMET LOCK

92086-0552

$17.90

92150

BOLT,6X20

92150-1072

Unavailable

92154

BOLT,FLANGED,6X16

92154-0551

$1.44

92161

DAMPER

92161-0903

$1.66

92161A

DAMPER,15X50X6

92161-0905

$1.10

92161B

DAMPER,45X25X2

92161-1381

$1.66

92161C

DAMPER,15X30X2

92161-1394

$1.10

92192

TUBE,7X8X50

92192-1005

$1.10

92200

WASHER,6.5X20X1.6

92200-0283

$1.08
