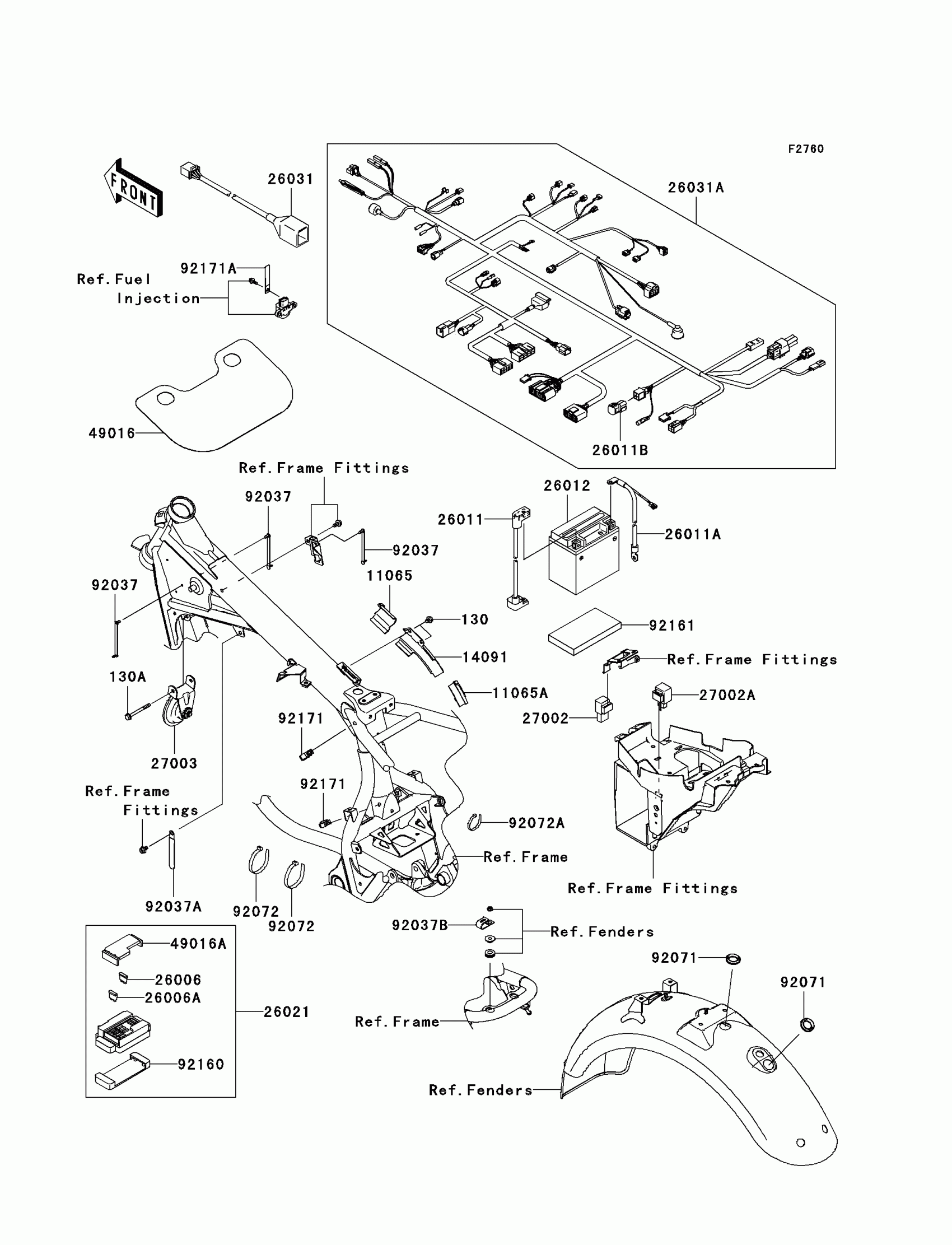

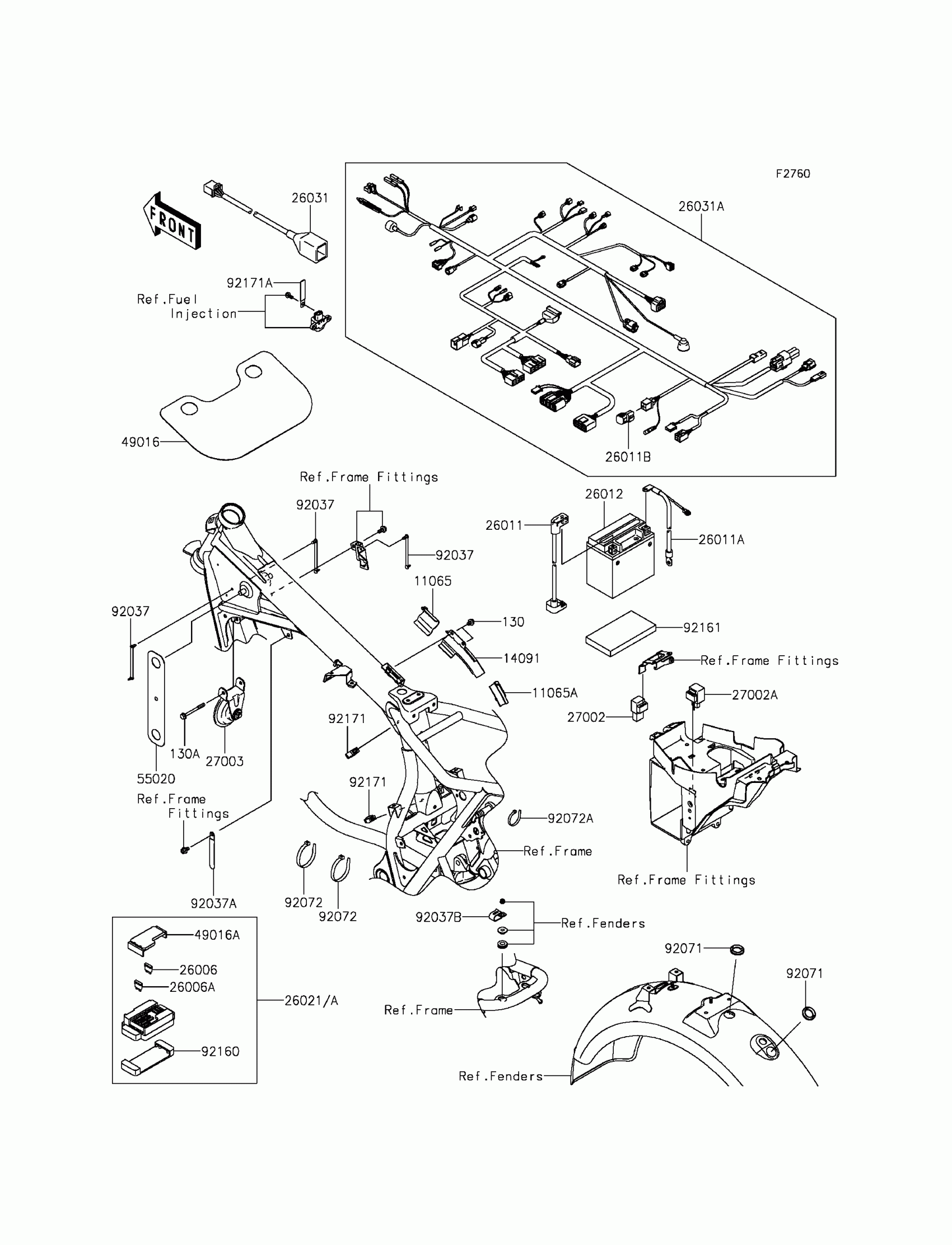

Kawasaki W800 (European) Chassis Electrical Equipment Diagram

Description

Price

130

BOLT-FLANGED,6X8

130BB0608

$6.07

130A

BOLT-FLANGED,6X60

130BB0660

$4.49

11065

CAP,HARNESS COVER,FR

11065-1141

$15.87

11065A

CAP,HARNESS COVER,RR

11065-1142

$15.87

14091

COVER,HARNESS

14091-1274

$10.82

26006

FUSE,BLADE,30A,GREEN

26006-1067

Unavailable

26006A

FUSE,10A-R

26006-1068

Unavailable

26011

WIRE-LEAD,BATTERY(+)

26011-0313

$44.49

26011A

WIRE-LEAD,BATTERY(-)

26011-0314

$41.57

26011B

WIRE-LEAD

26011-0741

$15.04

26012

BATTERY,YTX12-BS,12V 10AH

26012-0732

Unavailable

26021A

JUNCTION BOX

26021-0055

$160.76

26031

HARNESS,RR

26031-0991

$54.60

26031A

HARNESS,MAIN

26031-1663

$649.64

27002

RELAY-ASSY

27002-1062

$45.39

27002A

RELAY-ASSY,TURN SIGNAL

27002-1101

$72.36

27003

HORN

27003-0080

$83.74

49016

COVER-SEAL

49016-0571

$18.28

49016A

COVER-SEAL,FUSE

49016-0574

$10.00

55020

GUARD

55020-1985

$10.62

92037

CLAMP,SPEED,L=80.5

92037-1903

$7.84

92037A

CLAMP

92037-1993

$5.52

92037B

CLAMP

92037-2081

$2.44

92071

GROMMET,18X29X5

92071-0054

$5.01

92072

BAND,L=140

92072-1293

$7.11

92072A

BAND,L=100

92072-3875

$4.15

92160

DAMPER,JUNCTION BOX

92160-1650

$13.44

92161

DAMPER,BATTERY

92161-0018

$16.66

92171

CLAMP,CLIP,DIA=20

92171-0068

$2.80

92171A

CLAMP,L=60

92171-0652

$2.61
