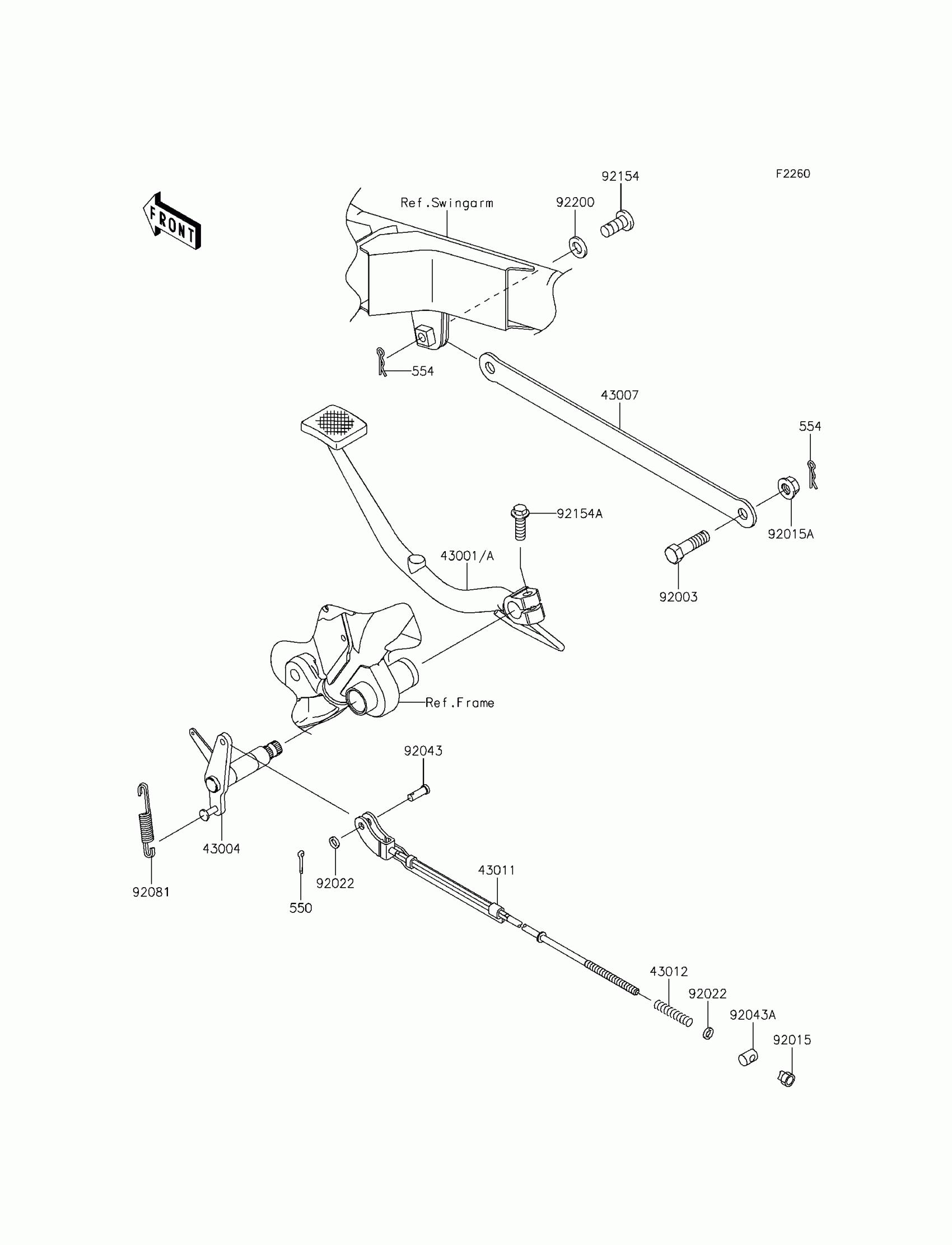

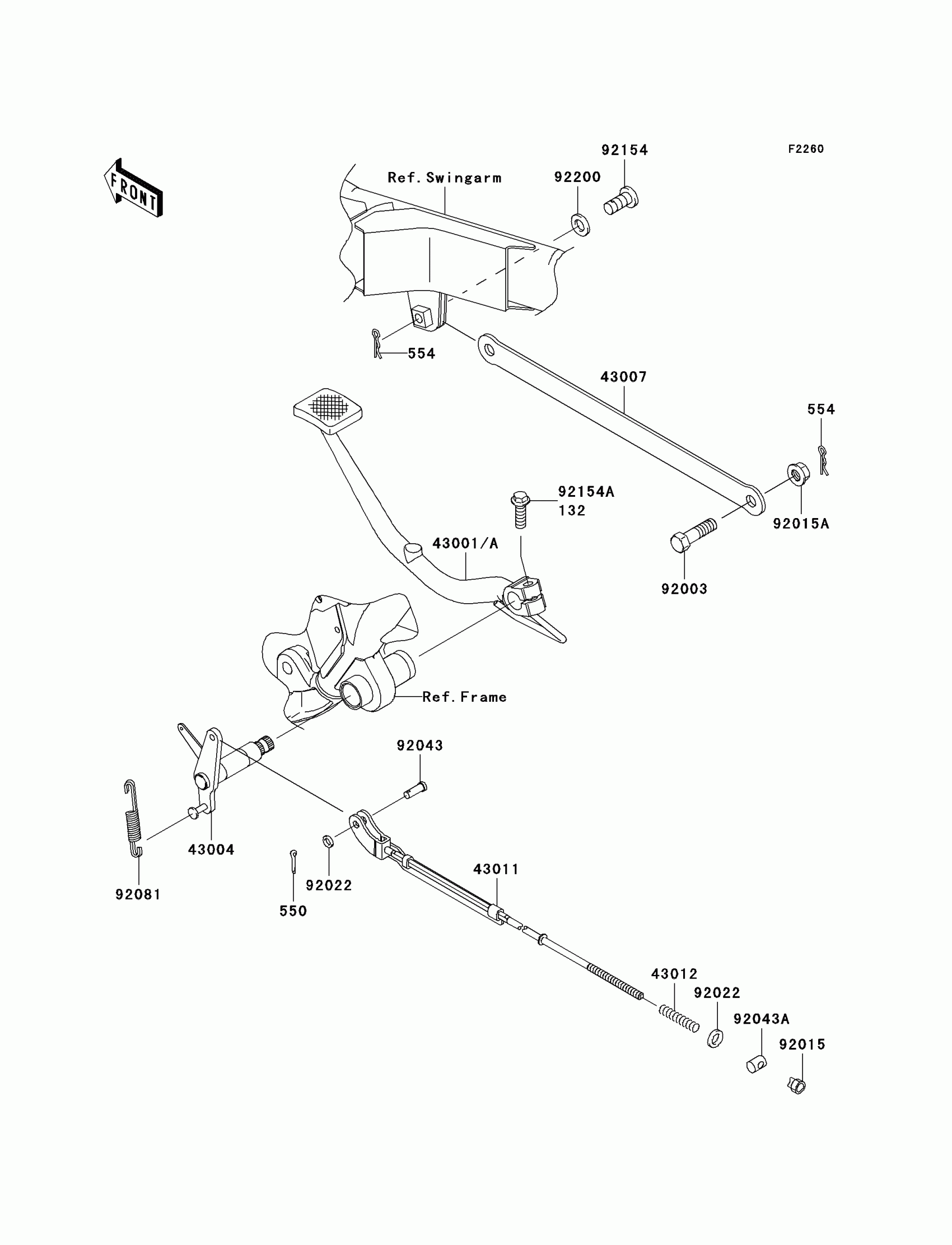

Kawasaki W800 (European) Brake Pedal Diagram

Description

Price

550

PIN-COTTER,2.0X15

550AA2015

$1.12

554

PIN-SNAP

554DA0800

$1.36

43001

LEVER-BRAKE,PEDAL

43001-0135

$137.47

43004

SHAFT-BRAKE

43004-0552

$59.01

43007

ROD-TORQUE

43007-1190

$88.83

43011

ROD-BRAKE

43011-1180

$42.05

43012

SPRING,BRAKE ROD

43012-001

$4.65

92003

BOLT,10X35

92003-034

$13.21

92015

NUT,BRAKE ROD

92015-042

$6.22

92015A

NUT,FLANGED,10MM

92015-1428

$5.00

92022

WASHER,6.3X10.2X1.6

92022-1588

$3.92

92043

PIN,6X17

92043-064

$4.69

92043A

PIN,BRAKE ROD

92043-065

$5.57

92081

SPRING,SIDE STAND

92081-1669

$16.65

92154

BOLT,SOCKET,10X30

92154-0510

$6.69

92154A

BOLT,FLANGED,8X25

92154-1019

$3.02

92200

WASHER,10.5X19X2.3

92200-1042

$3.92
