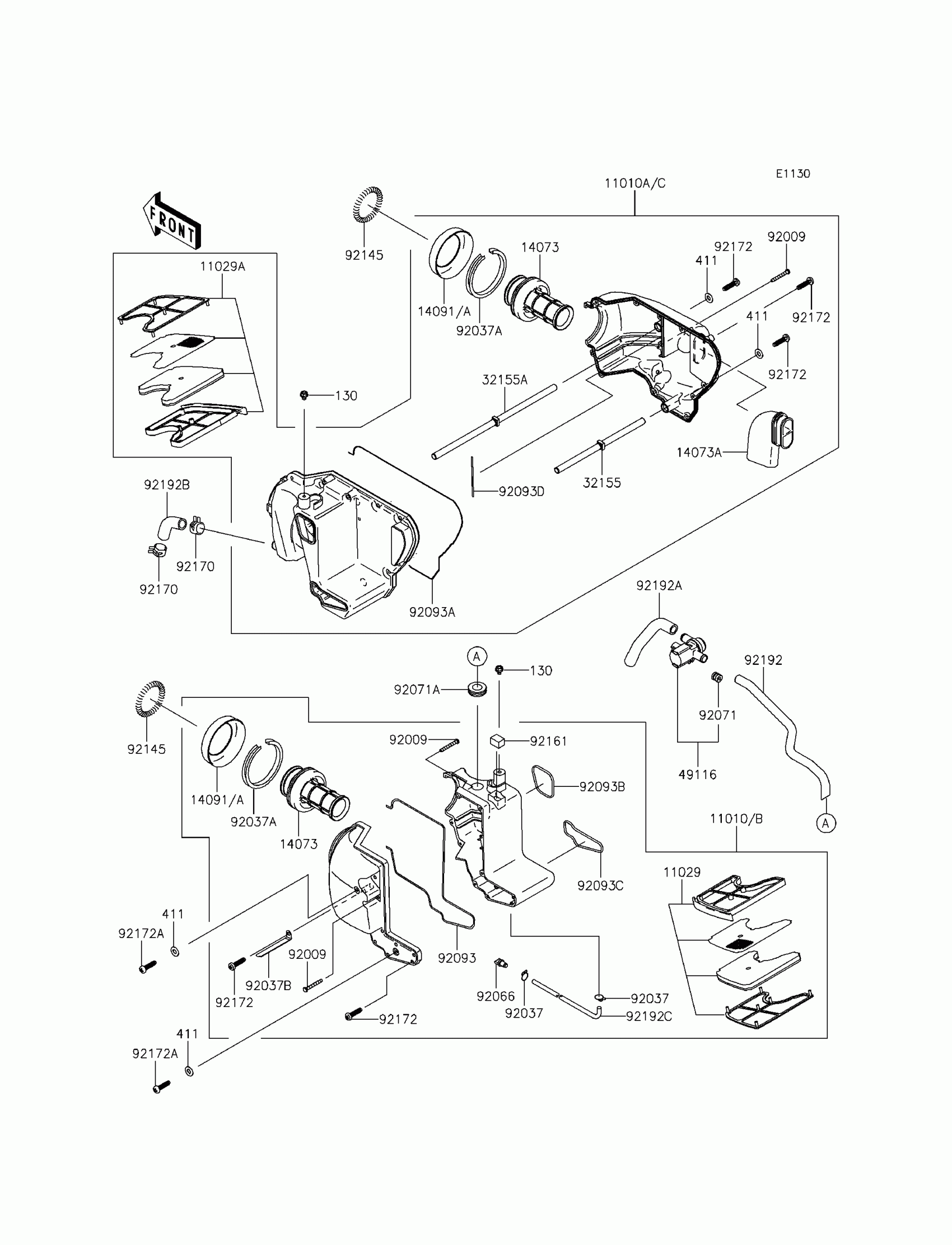

Kawasaki W800 (European) Air Cleaner Diagram

#

Description
Price

130

BOLT-FLANGED,6X8

130BA0608

$0.69

411

WASHER-PLAIN,5MM

411AB0500

$0.71

11010

FILTER-ASSY-AIR,LH

11010-0215

$236.83

11010A

FILTER-ASSY-AIR,RH

11010-0216

$236.83

11029

ELEMENT-ASSY-AIR FILTER,LH

11029-0012

Unavailable

11029A

ELEMENT-ASSY-AIR FILTER,RH

11029-0013

Unavailable

14073

DUCT

14073-0300

$67.39

14073A

DUCT,INTAKE

14073-0301

$30.39

14091

COVER,AIR FILTER

14091-1088

$9.24

32155

PIPE,L=218

32155-0462

$12.44

32155A

PIPE,L=303

32155-0463

$14.25

49116

VALVE-ASSY,AIR CUT

49116-0017

$123.15

92009

SCREW,TAPPING,5X40

92009-1263

$3.53

92037

CLAMP,TUBE

92037-147

$5.61

92037A

CLAMP,69MM

92037-1631

$11.59

92037B

CLAMP

92037-1679

$4.18

92066

PLUG,DRAIN

92066-1211

$6.48

92071

GROMMET

92071-0026

$3.49

92071A

GROMMET,AIR SUCTION VALVE

92071-1249

$3.68

92093

SEAL

92093-1492

$30.39

92093A

SEAL

92093-1493

$30.39

92093B

SEAL

92093-1496

$3.68

92093C

SEAL

92093-1497

$3.97

92093D

SEAL

92093-1498

$3.25

92145

SPRING

92145-0795

$5.71

92161

DAMPER

92161-1115

$1.95

92170

CLAMP

92170-1060

$7.93

92172

SCREW,TAPPING,5X20

92172-0009

$1.98

92172A

SCREW,TAPPING,5X20

92172-0011

$1.51

92192

TUBE,ACV-A/C

92192-0916

$14.00

92192A

TUBE,HEAD-ACV

92192-0917

$7.51

92192B

TUBE,BREATHER

92192-0972

$4.42

92192C

TUBE,DRAIN

92192-1034

$12.73
