2020 Kawasaki W800 Cylinder/piston Diagram

← All diagrams

Find the part on the Cylinder/piston diagram for your 2020 Kawasaki W800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

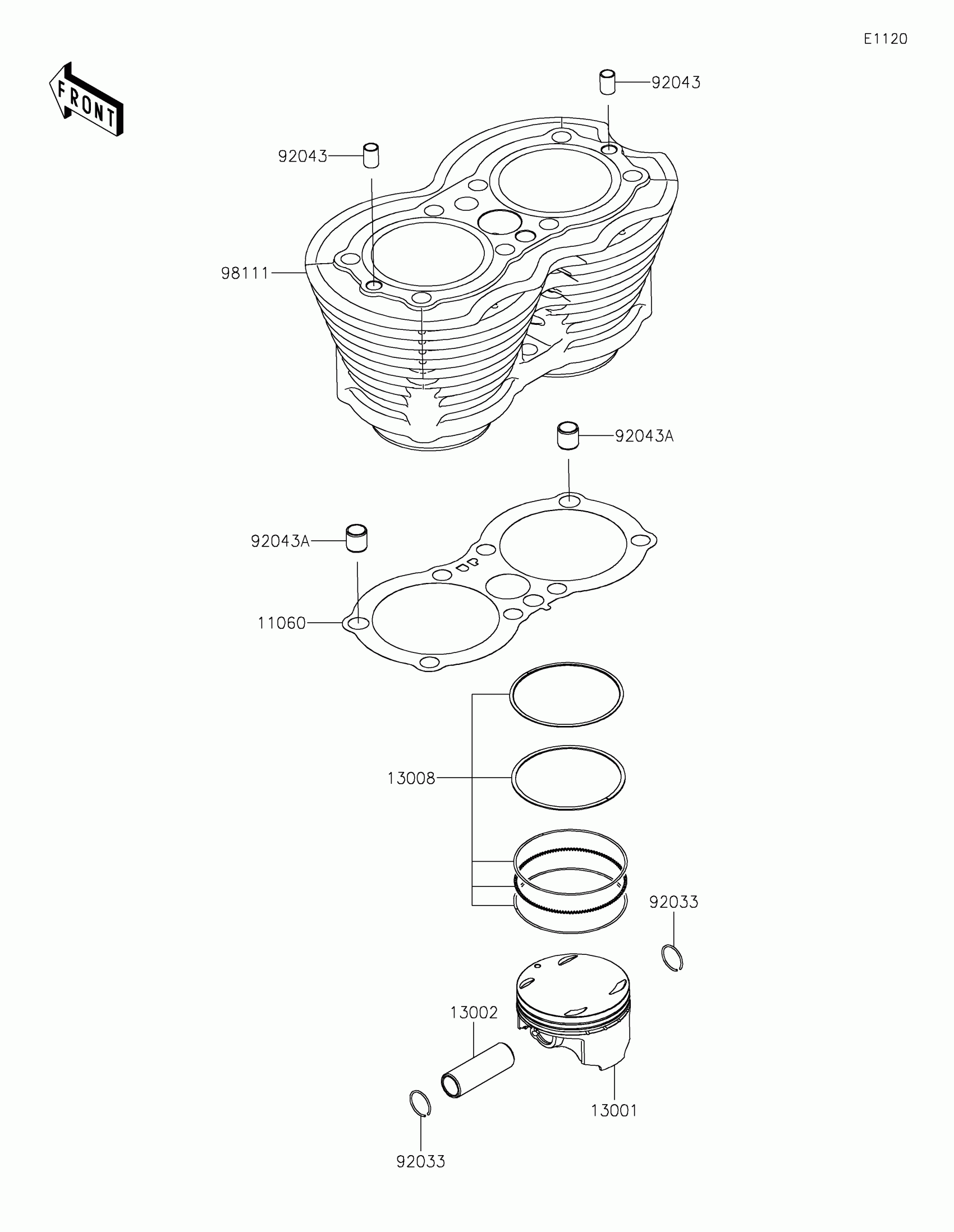

2020 Kawasaki W800 Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

1

$36.98

In stock

13001

PISTON-ENGINE

13001-0812

1

$144.26

In stock

13002

PIN-PISTON

13002-1086

1

$25.14

In stock

13008

RING-SET-PISTON

13008-0587

1

$66.84

In stock

92033

RING-SNAP,20.5X1.2

92033-1099

1

$0.64

In stock

92043

PIN,DOWEL,10X14

92043-1037

1

$0.76

In stock

92043A

PIN,11.5X14X14

92043-1279

1

$3.97

In stock

98111

1

$1,830.06

In stock
