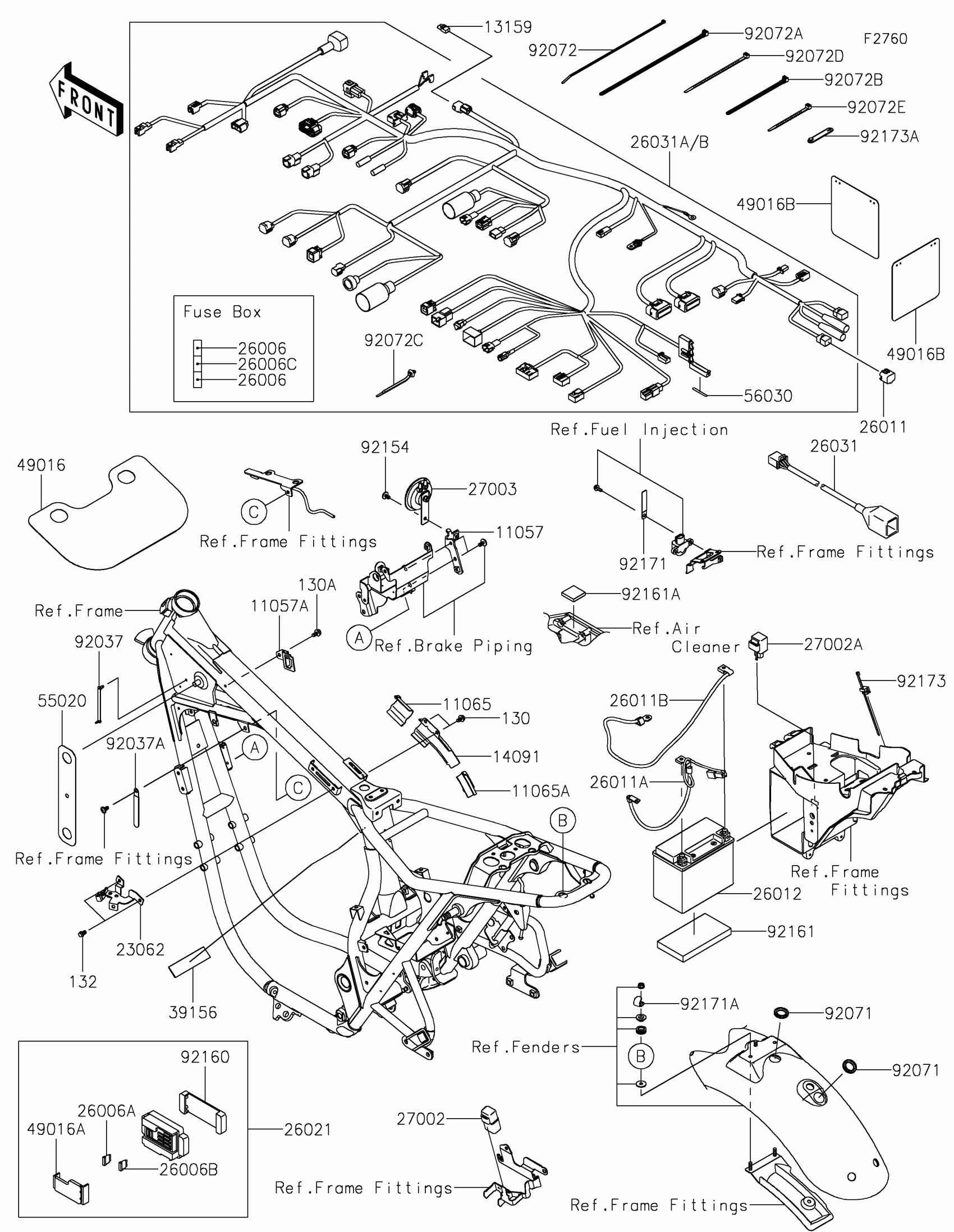

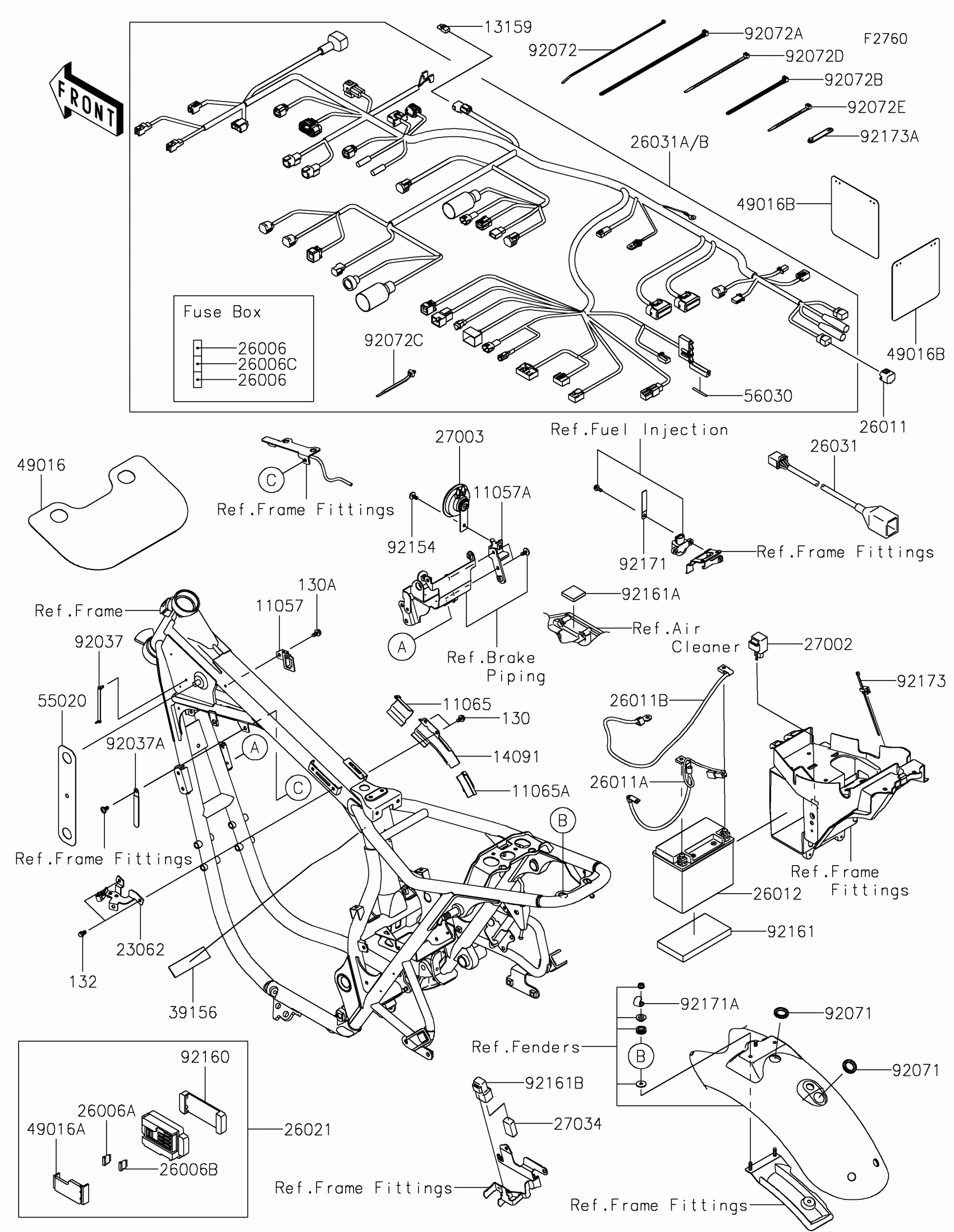

Kawasaki W800 Chassis Electrical Equipment Diagram
#
11057
BRACKET,IGNITION SWITCH
11057-2407
$7.49
11057A
BRACKET,HORN
11057-7971
$6.28
11065
CAP,HARNESS COVER,FR
11065-1141
$15.87
11065A
CAP,HARNESS COVER,RR
11065-1142
$15.87
13159
CONNECTOR,GRIP HEATER COUPLER
13159-0034
$14.36
14091
COVER,HARNESS
14091-1274
$10.82
23062
BRACKET-COMP,PRESSURE SENSOR
23062-1252
$23.16
26006
FUSE,MINI BLADE,15A,BLUE
26006-0001
$6.12
26006A
FUSE,BLADE,30A,GREEN
26006-1067
Unavailable
26006B
FUSE,10A-R
26006-1068
Unavailable
26006C
FUSE,MINI BLADE,10A,RED
26006-1078
$4.87
26011
WIRE-LEAD,CONNECTOR COVER
26011-0275
$14.13
26011A
WIRE-LEAD,BATTERY(+)
26011-1868
$40.25
26011B
WIRE-LEAD,BATTERY(-)
26011-1893
$37.63
26012
BATTERY,YTX12-BS,12V 10AH
26012-1514
$119.64
26021
JUNCTION BOX
26021-0085
$154.78
26031
HARNESS,RR
26031-2505
$43.63
27002
RELAY-ASSY,TURN SIGNAL
27002-1101
$72.36
27003
HORN
27003-0166
$77.12
27034
RELAY
27034-0012
$36.91
39156
PAD,25X100X2
39156-2527
$1.93
49016
COVER-SEAL
49016-0571
$18.28
49016A
COVER-SEAL,FUSE
49016-0670
$7.38
49016B
COVER-SEAL
49016-0671
$5.76
55020
GUARD
55020-1985
$10.62
56030
LABEL,FUSE BOX1
56030-1493
$3.07
92037
CLAMP,SPEED,L=80.5
92037-1903
$7.84
92037A
CLAMP
92037-1993
$5.52
92071
GROMMET,18X29X5
92071-0054
$5.01
92072
BAND
92072-0863
$2.58
92072A
BAND,L=250
92072-1237
$2.14
92072B
BAND,L=140
92072-1293
$7.11
92072C
BAND,OS170-FT7(BLACK)
92072-1414
Unavailable
92072D
BAND,L=152
92072-3874
$4.18
92072E
BAND,L=100
92072-3875
$4.15
92154
BOLT,SOCKET,6X12
92154-2706
$1.78
92160
DAMPER,JUNCTION BOX
92160-1650
$13.44
92161
DAMPER,BATTERY
92161-0018
$16.66
92161A
DAMPER,34X34X7
92161-2289
$3.54
92161B
DAMPER
92161-2290
$6.03
92171
CLAMP,L=60
92171-0652
$2.61
92171A
CLAMP
92171-1918
$8.74
92173
CLAMP
92173-0791
$11.16
92173A
CLAMP
92173-1526
$3.94
130
BOLT-FLANGED,6X10
130BA0610
$1.20
130A
BOLT-FLANGED,6X12
130BA0612
$1.72
132
BOLT-FLANGED-SMALL,6X10
132BA0610
$1.71
