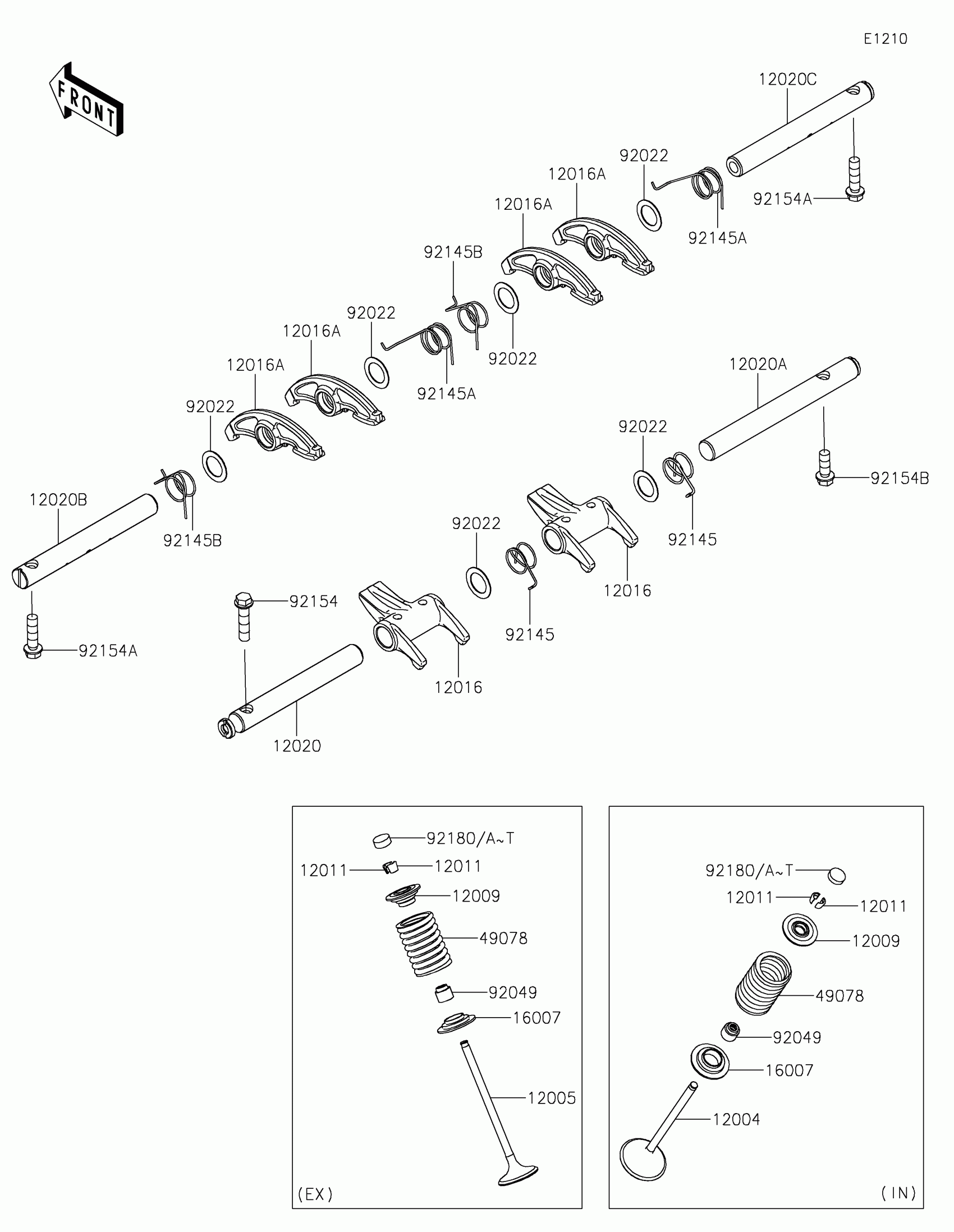

Kawasaki W800 CAFE Valve(s) Diagram
#
12004
VALVE-INTAKE
12004-1138
$39.01
12005
VALVE-EXHAUST
12005-1301
$68.70
12009
RETAINER-VALVE SPRING
12009-1069
$10.65
12011
COLLET
12011-1053
$5.46
12016
ARM-ROCKER,INTAKE
12016-1116
$133.41
12016A
ARM-ROCKER,EXHAUST
12016-1117
$86.47
12020
SHAFT-ROCKER,INTAKE,LH
12020-1076
$48.19
12020A
SHAFT-ROCKER,INTAKE,RH
12020-1077
$48.19
12020B
SHAFT-ROCKER,EXHAUST,LH
12020-1078
$65.60
12020C
SHAFT-ROCKER,EXHAUST,RH
12020-1079
$65.60
16007
SEAT-SPRING
16007-1163
$25.03
49078
SPRING-ENGINE VALVE
49078-1182
$14.83
92022
WASHER,13.2X20X0.5
92022-1224
$4.31
92049
SEAL-OIL,VSB 4.3 7.5 5.3 8.3
92049-1349
$11.53
92145
SPRING,ROCKER SHAFT,IN
92145-1278
$3.65
92145A
SPRING,ROCKER SHAFT,EX,RH
92145-1279
$3.65
92145B
SPRING,ROCKER SHAFT,EX,LH
92145-1280
$3.65
92154
BOLT,FLANGED,6X25
92154-0479
$1.94
92154A
BOLT,FLANGED,6X22
92154-0480
$1.94
92154B
BOLT,FLANGED,6X16
92154-0481
$1.63
92180
SHIM,T=2.50
92180-1014
$18.15
92180A
SHIM,T=2.55
92180-1016
Unavailable
92180B
SHIM,T=2.60
92180-1018
Unavailable
92180C
SHIM,T=2.65
92180-1020
Unavailable
92180D
SHIM,T=2.70
92180-1022
Unavailable
92180E
SHIM,T=2.75
92180-1024
Unavailable
92180F
SHIM,T=2.80
92180-1026
Unavailable
92180G
SHIM,T=2.85
92180-1028
Unavailable
92180H
SHIM,T=2.90
92180-1030
Unavailable
92180I
SHIM,T=2.95
92180-1032
Unavailable
92180J
SHIM,T=3.00
92180-1034
Unavailable
92180K
SHIM,T=3.05
92180-1036
Unavailable
92180L
SHIM,T=3.10
92180-1038
Unavailable
92180M
SHIM,T=3.15
92180-1040
Unavailable
92180N
SHIM,T=3.20
92180-1042
Unavailable
92180O
SHIM,T=3.25
92180-1044
Unavailable
92180P
SHIM,T=3.30
92180-1046
Unavailable
92180Q
SHIM,T=3.35
92180-1048
Unavailable
92180R
SHIM,T=3.40
92180-1050
Unavailable
92180S
SHIM,T=3.45
92180-1052
Unavailable
92180T
SHIM,T=3.50
92180-1054
Unavailable
