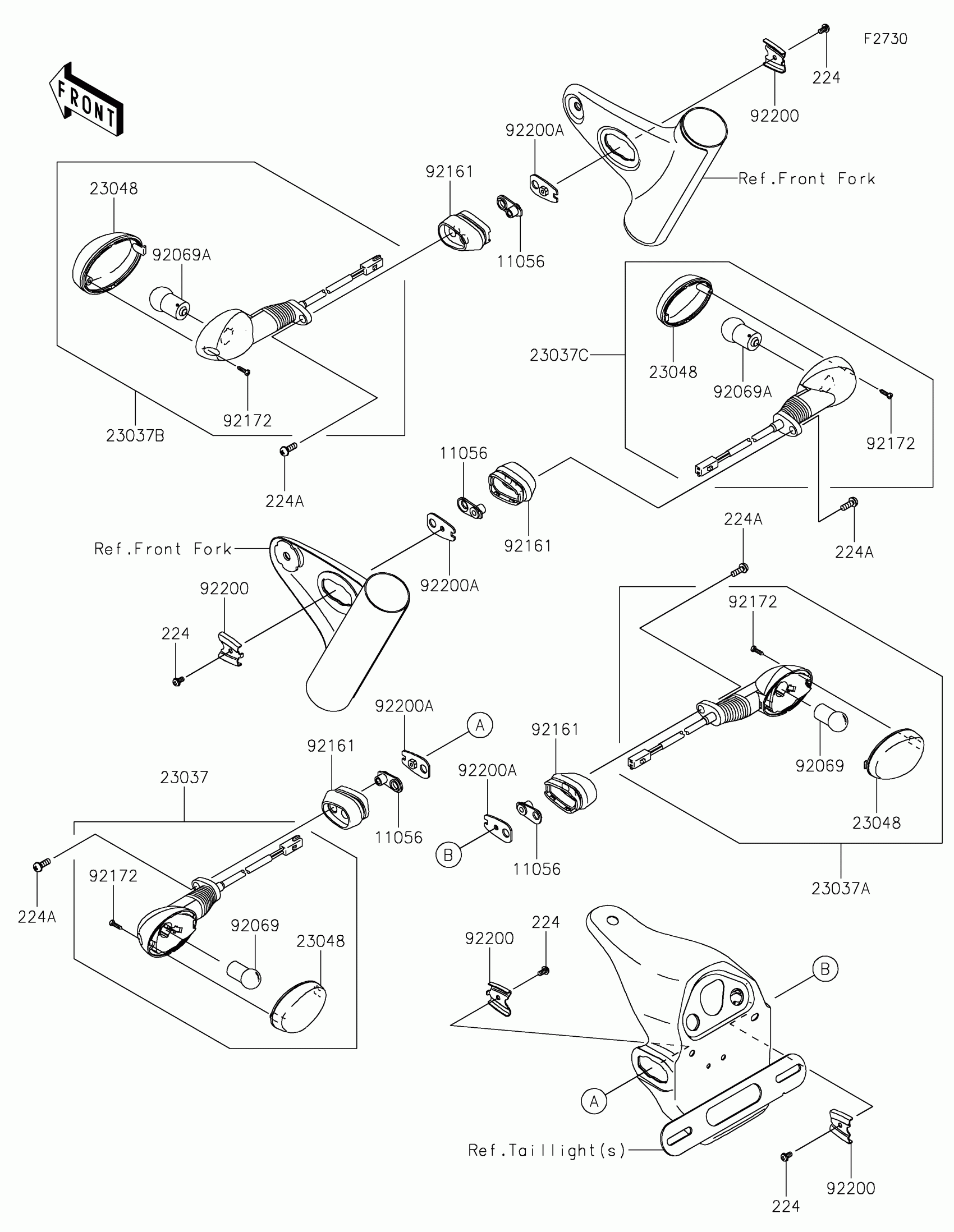

Kawasaki W800 CAFE Turn Signals Diagram

Description

Price

11056

BRACKET,6MM

11056-4156

$4.96

23037

LAMP-ASSY-SIGNAL,RR,LH

23037-0380

$49.25

23037A

LAMP-ASSY-SIGNAL,RR,RH

23037-0381

$49.25

23037B

LAMP-ASSY-SIGNAL,FR,LH

23037-0384

$49.25

23037C

LAMP-ASSY-SIGNAL,FR,RH

23037-0385

$49.25

23048

LENS-SIGNAL LAMP

23048-0034

$10.86

92069

BULB,12V 10W

92069-0024

Unavailable

92069A

BULB,12V 10W

92069-0076

$4.15

92161

DAMPER,SIGNAL LAMP

92161-1680

$5.98

92172

SCREW,TAPPING,2.9X13

92172-0343

$1.78

92200

WASHER,SIGNAL LAMP

92200-0165

$3.94

92200A

WASHER

92200-2291

$3.16

224

SCREW-PAN-WP-CROS,4X8

224AB0408

$3.67

224A

SCREW-PAN-WP-CROS,6X14

224AB0614

$4.12
