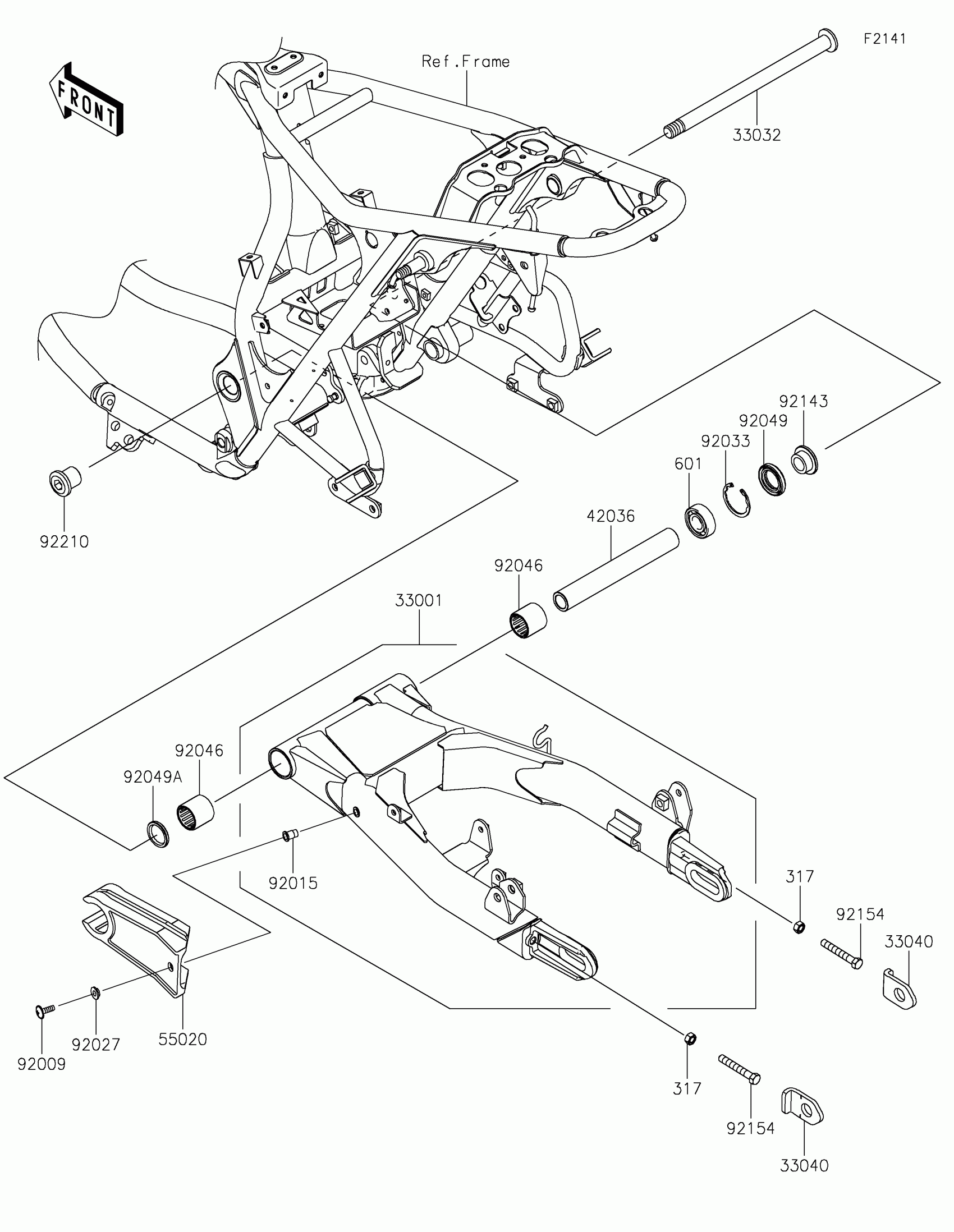

Kawasaki W800 CAFE Swingarm Diagram

Description

Price

33001

ARM-COMP-SWING

33001-0707

$682.50

33032

SHAFT-SWING ARM

33032-1192

$65.74

33040

ADJUSTER-CHAIN

33040-0076

$17.81

42036

SLEEVE,SWING ARM,L=186.6

42036-1352

$58.58

55020

GUARD,CHAIN

55020-1686

$46.50

92009

SCREW,6X18

92009-1663

Unavailable

92015

NUT,POP,6MM,L=15

92015-1791

$4.69

92027

COLLAR,L=4.5

92027-1965

$7.21

92033

RING-SNAP,40MM

92033-1040

$5.90

92046

BEARING-NEEDLE,BHTM2530-1

92046-1035

$26.30

92049

SEAL-OIL

92049-1047

$16.33

92049A

SEAL-OIL,MH25334

92049-1060

$8.86

92143

COLLAR,RR AXLE,L=14

92143-1188

$18.89

92154

BOLT-SMALL,8X55

92154-1962

$5.69

92210

NUT,PIVOT,16MM

92210-1077

$15.80

317

NUT-HEX-SMALL,8MM

317BA0800

$1.67

601

BEARING-BALL,#6203

601A6203

$14.12
